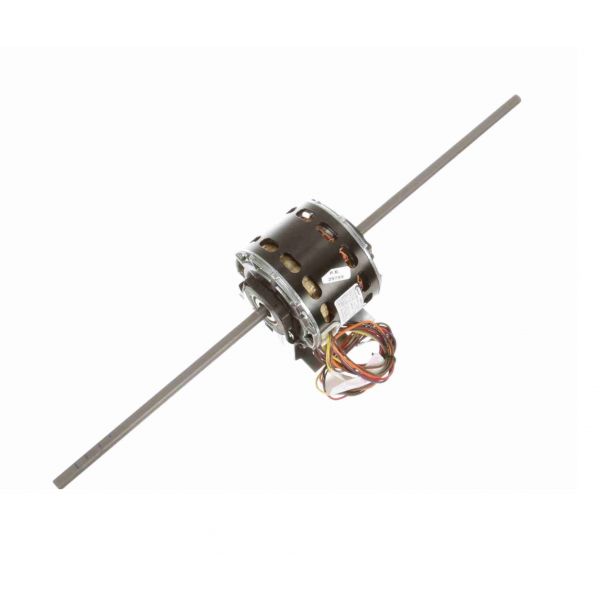

CENTURY MOTORS 9474A Fan Coil & Air Conditioner Motor 1/15, 1/20, 1/25, 1/35 HP Replacement MPN 9474A

Product Description

The CENTURY MOTORS 9474A is a fan coil and air conditioner motor. It operates at 115 V and has a speed of 1075 RPM. This motor supports multiple horsepower options, including 1/15, 1/20, 1/25, and 1/35 HP, making it suitable for various HVAC applications.

• Designed with a durable 42 frame for easy installation.
• Features class B insulation and automatic thermal protection for safety.
• Includes a resilient base and ball bearings for reduced friction and noise.

Product Highlights

This motor is ideal for fan coil and air conditioner systems, providing a reliable solution for efficient operation across a range of applications.

Product Information

Standard Information

• Brand: CENTURY
• Model: 9474A

Technical Specifications

• Phase: 1
• Output HP: 1/15, 1/20, 1/25, 1/35 HP
• Voltage: 115 V
• Speed: 1075 RPM
• Service Factor: 1.0
• Frame: 42
• Enclosure: Open Air Over
• Thermal Protection: Automatic
• Ambient Temperature: 40 °C
• Frequency: 60 Hz
• Current: 1.35, 1.0, 0.75, 0.85 A
• Duty: Continuous Air Over
• Insulation Class: B
• UL: Recognized
• CSA: Y
• CE: N
• Number of Speeds: 4
• Electrical Type: Permanent Split Capacitor
• Starting Method: Across The Line
• Poles: 6
• Rotation: Counterclockwise Lead End
• Mounting: Resilient Base
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: Flat
• Frame Length: 3.83 inches
• Shaft Diameter: 0.500 inches
• Shaft Extension: 11X.5X11 inches
• Country/Region of Manufacture: MX
• Manufacturer Warranty: 1 year
