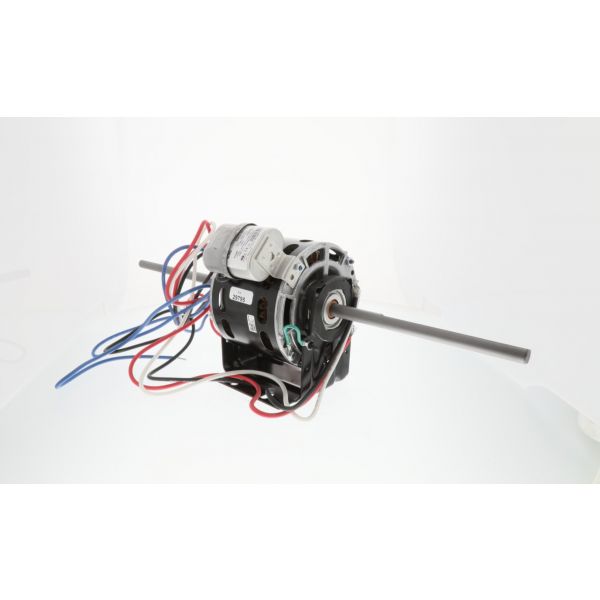

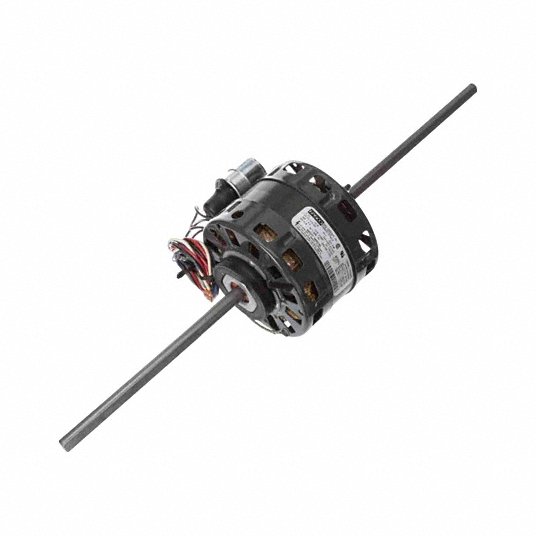

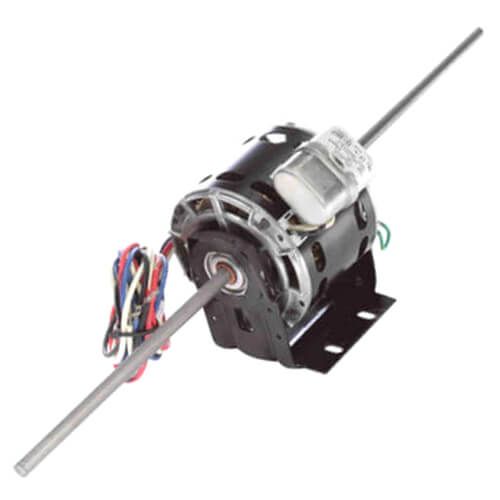

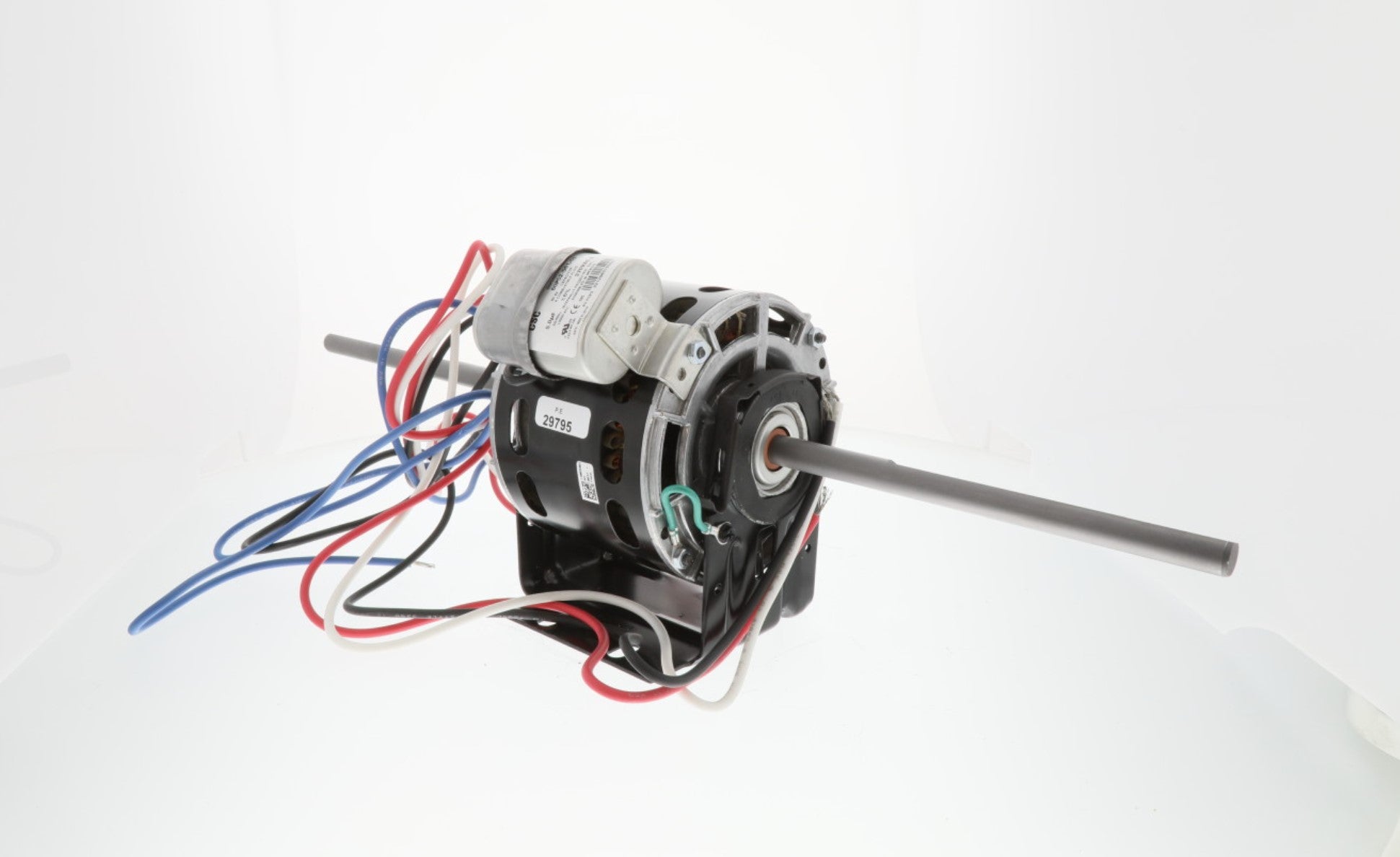

CENTURY MOTORS 945B OEM Replacement Motor 1/8-1/20-1/30 HP

Product Description

The CENTURY MOTORS 945B is an OEM replacement motor that operates at one hundred fifteen volts. It delivers one eighth, one twentieth, or one thirtieth HP at one thousand five hundred RPM and features three speeds in an open air over enclosure. This motor is suitable for direct replacement in HVAC equipment, such as furnaces, air conditioners, and heat pumps. Its function is to convert electrical energy into mechanical energy, resulting in rotational motion.

• OEM Direct Replacement Motor
• Five Inches Diameter - 42 Frame
• Permanent Split Capacitor (PSC); Capacitor Required: Five Mfd-370 Volts

Product Highlights

This motor is ideal for HVAC applications, offering durability and reliability with automatic thermal protection. It is designed for continuous operation.

Product Information

Standard Information

• Phase: 1
• Output HP: 1/8, 1/20, 1/30 HP

Technical Specifications

• Voltage: 115 V
• Speed: 1500 RPM
• Service Factor: 1.0
• Frame: 42
• Enclosure: Open Air Over
• Thermal Protection: Automatic
• Current: 1.3, 0.7, 0.42 A
• Frame Material: Rolled Steel
