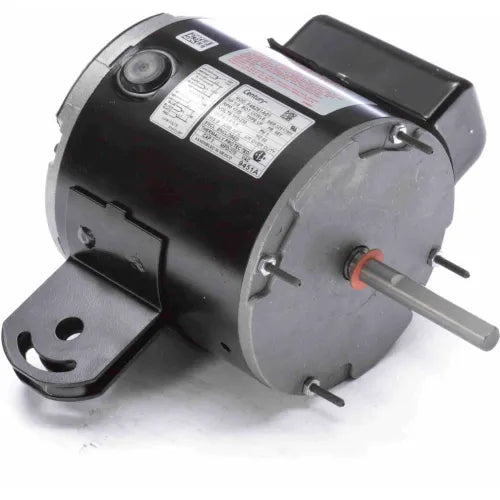

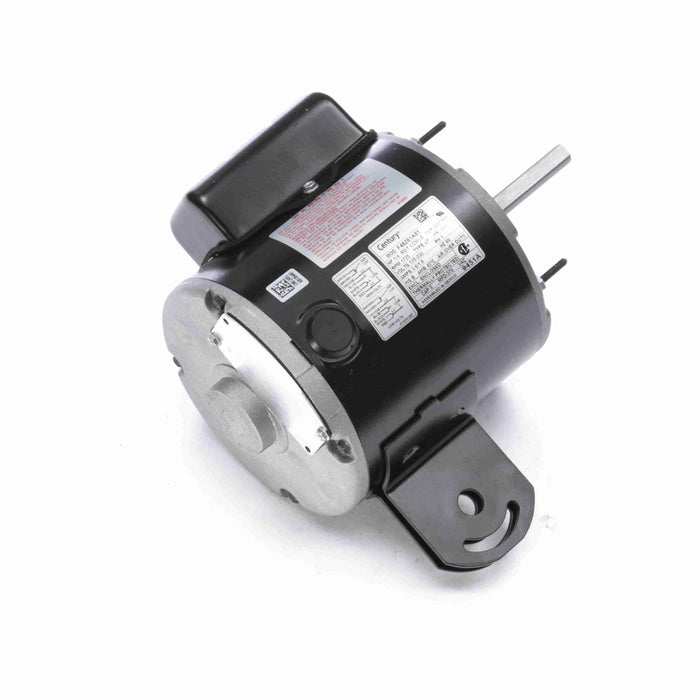

CENTURY MOTORS 9451A Pedestal Fan Motor 1/4 HP

Product Description

The CENTURY MOTORS 9451A Pedestal Fan Motor is suitable for HVAC/R applications. This motor has a horsepower of 1/4 HP and operates at 1725 RPM. It is a single-phase motor designed for both 115 and 230 voltage power systems and features a 48Y frame. The motor includes thermal overload protection and is constructed with rolled steel.

• Electrical Type: PSC
• Enclosure: TEAO
• Rotation: CCWLE

Product Highlights

This pedestal fan motor is ideal for various air-over applications, ensuring efficient and reliable operation.

Product Information

Standard Information

• Brand: Century Motors
• Product Type: Pedestal Fan Motor

Technical Specifications

• Electrical Type: PSC
• HP: 1/4
• KW: 0.19
• RPM: 1725
• Frame: 48Y
• Diameter: 5.6 inches
• Enclosure: TEAO
• Phase: Single
• Voltage: 115/230
• Rotation: CCWLE
• Overload: Auto
• Material: Rolled Steel
• Bearings Type: Ball / Ball
• Mounting: Yoke
• Amperage: 3.6/1.8
• Shaft Type: Double Flat
• Shaft Extension: 3.300 inches
• Shaft Diameter: 0.500 inches
• Frequency: 60 Hz
• Service Factor: 1.0
• Thermal Protection: Automatic
• Ambient Temperature: 40 °C
• Duty: Continuous Air Over
• Insulation Class: B
• UL: Recognized
• CSA: Y
• CE: N
• Number of Speeds: 1
• Starting Method: Across The Line
• Poles: 4
• Motor Orientation: Any
• Overall Length: 9.42 inches
• Frame Length: 5.71 inches
• Maximum Ambient Temperature: 40 °C
• Duty Cycle: Continuous
• Capacitor: 5MFD @ 370VAC (Included)
