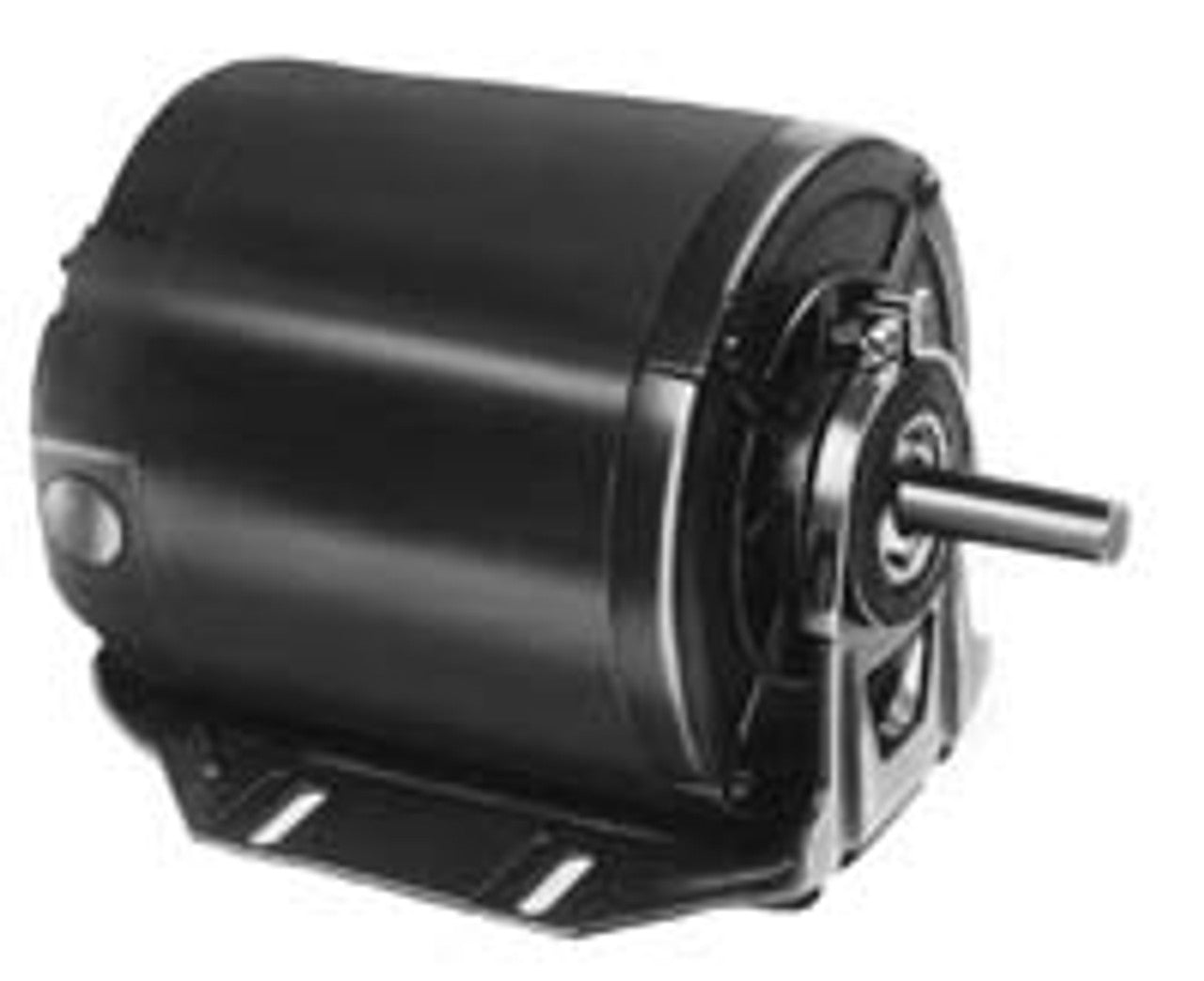

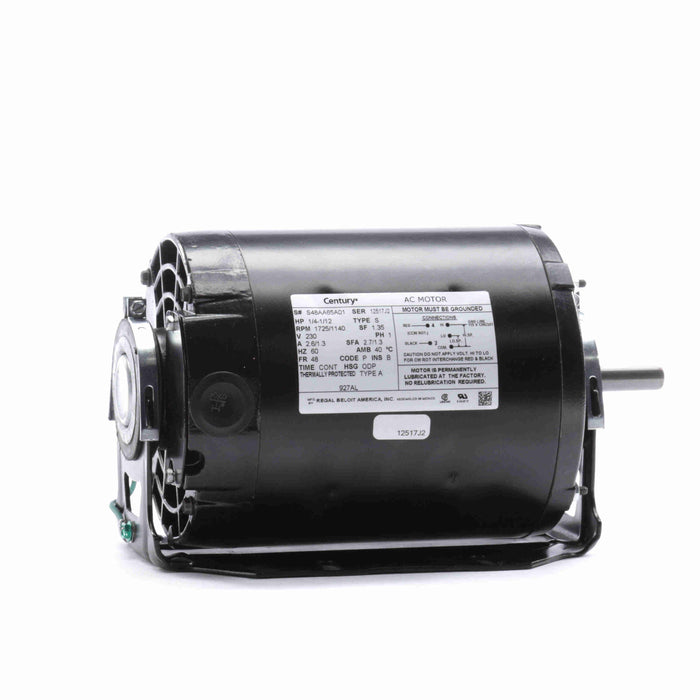

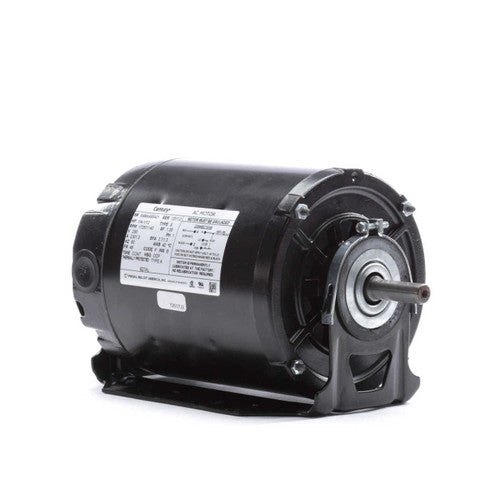

CENTURY MOTORS 927AL Model 1/4 hp 1725 RPM 2-Speed 48 Frame 230V Belt Drive Blower Motor

Product Description

The CENTURY MOTORS 927AL is a 1/4 horsepower motor that operates at 1725 RPM and is designed for 230V systems. This model features two speed options, offering flexibility for different applications. Its design includes a resilient cradle base and allows for reversible rotation, which makes it suitable for various HVAC configurations.

• 2-Speed operation for adaptable performance
• Automatic overload protection for safety
• Open drip-proof enclosure for reliable operation

Product Highlights

This blower motor is built for continuous duty, making it ideal for use in HVAC systems. It includes quick connect terminals for easier installation and maintenance.

Product Information

Standard Information

• Horsepower: 1/4 hp
• Voltage: 230 Volts

Technical Specifications

• RPM: 1725/1140
• Amps: 2.6/1.3 amps
• Frequency: 60 Hz
• Base: Resilient Cradle Base
• Shaft Diameter: 1/2 inches
• Shaft Length: 1-9/16 inches
• Frame: 48 Frame
• Bearings: Ball Bearings
• Service Factor: 1.35
• Enclosure Type: Open Drip Proof
• Insulation Class: Class B Insulation
• Duty Cycle: Continuous Duty
• Mounting: Cradle
• Maximum Ambient Temperature: 40°C
