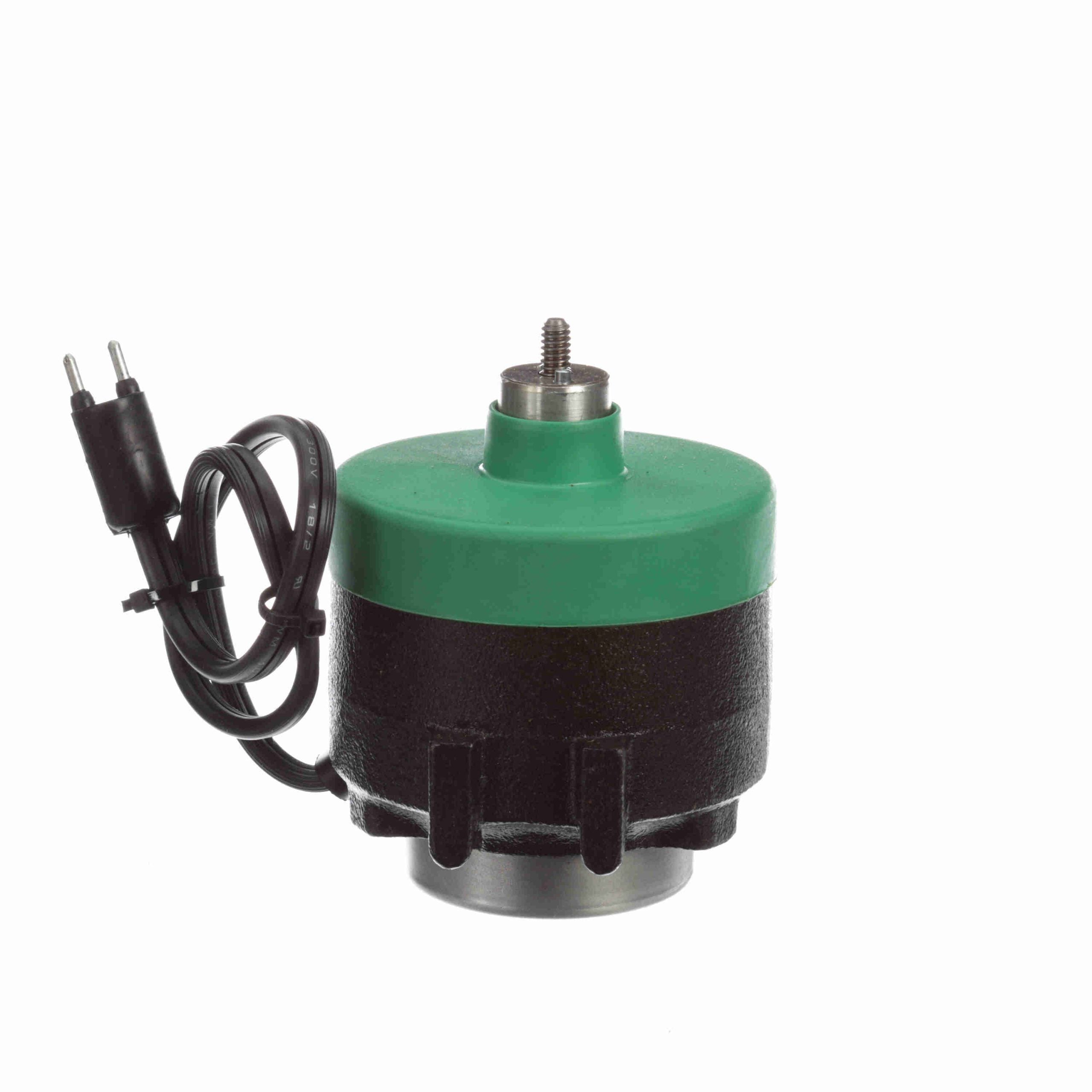

CENTURY MOTORS 9218 Refrigeration Motor 9 W 115V

Product Description

The CENTURY MOTORS 9218 is a single-phase motor made for refrigeration tasks. It runs on one hundred fifteen volts and reaches a speed of one thousand six hundred fifty RPM at nine watts of power. This unit has a totally enclosed air over (TEAO) casing and comes with built-in electronic thermal protection.

• Operates at one hundred fifteen volts and one thousand six hundred fifty RPM.
• Constructed with a totally enclosed air over (TEAO) enclosure.
• Includes electronic thermal protection for reliability.

Product Highlights

This motor is durable with its cast iron frame and is suitable for continuous duty use.

Product Information

Standard Information

• Brand: CENTURY MOTORS
• MPN: 9218

Technical Specifications

• Output Power: 9 W
• Input Voltage: 115 V
• Input Current: 0.32 A
• Frequency: 60 Hz
• Speed: 1650 RPM
• Service Factor: 1
• Phase: 1
• Duty: Continuous
• Insulation Class: A
• Frame: Unit Bearing
• Enclosure: Totally Enclosed Air Over
• Thermal Protection: Electronic
• Ambient Temperature: 40 °C
• UL: Recognized
• CSA: Y
• CE: N
• Electrical Type: Electronically Commutated Motor
• Starting Method: Across The Line
• Poles: 4
• Rotation: Clockwise from Lead End
• Mounting Type: 2 Boss/OSE 3 Holes
• Drive End Bearing: Unit
• Opp Drive End Bearing: Unit
• Frame Material: Cast Iron
• Shaft Type: Threaded
• Frame Length: 4.12 inches
• Shaft Diameter: 1/4 x 20 inches
• Shaft Extension: 0.44 inches
• Number of Speeds: 1
