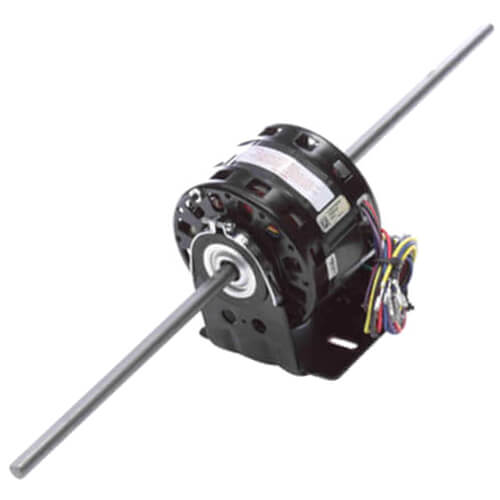

Century 7DB6408 Fan Coil Motor 277 Volt 1050 RPM 1/10 HP 5-Inch Frame

Product Description

The Century 7DB6408 fan coil motor is a reliable option for HVAC applications. Featuring a 5-inch frame and operating at 277 volts with 1050 RPM, this motor is built to meet demanding standards for durability and performance.

• 5-inch frame diameter
• 1/10 HP
• 1050 RPM

Product Highlights

The Century 7DB6408 motor is equipped with a shaded pole design, sleeve bearings, and automatic overload protection. The 277-volt single-phase motor is recognized for its efficiency in air conditioning systems.

Product Information

Standard Information

• Brand: Century
• Manufacturer: Regal Rexnord - Century Motors
• Country of Origin: Mexico
• Certifications: CSA, UL Recognized

Technical Specifications

• MPN: 7DB6408
• Frame: 42Y
• Voltage: 277V
• Amperage: 1.3, 0.8, 0.7, 0.6
• HP: 1/10, 1/15, 1/20, 1/25
• Insulation Class: A
• Bearings Type: Sleeve
• Rotation: CCWLE
• Mounting: Resilient Base
• Max Ambient Temp: 40°C
• Duty: Air Over
• Shaft Size: 0.500 inches
