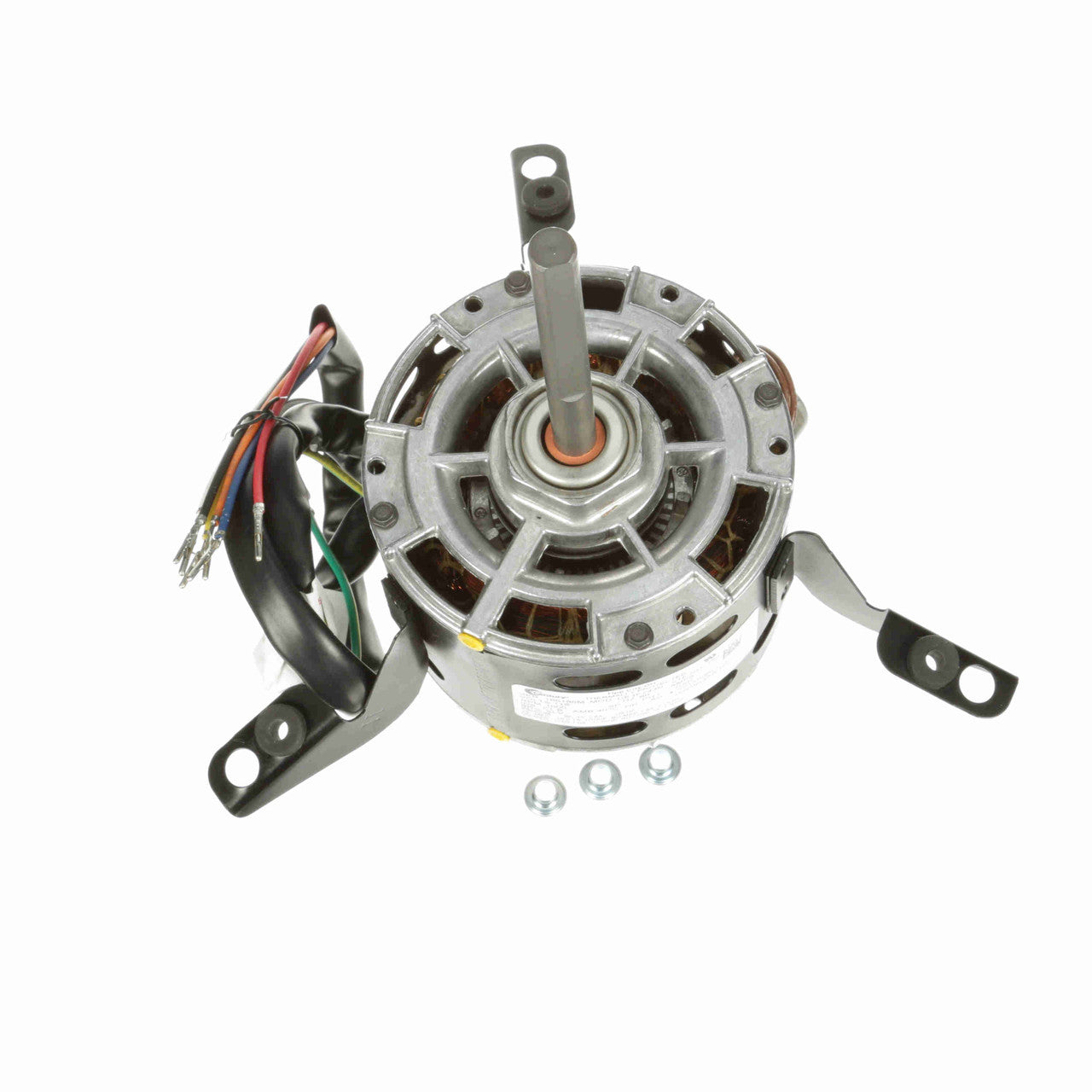

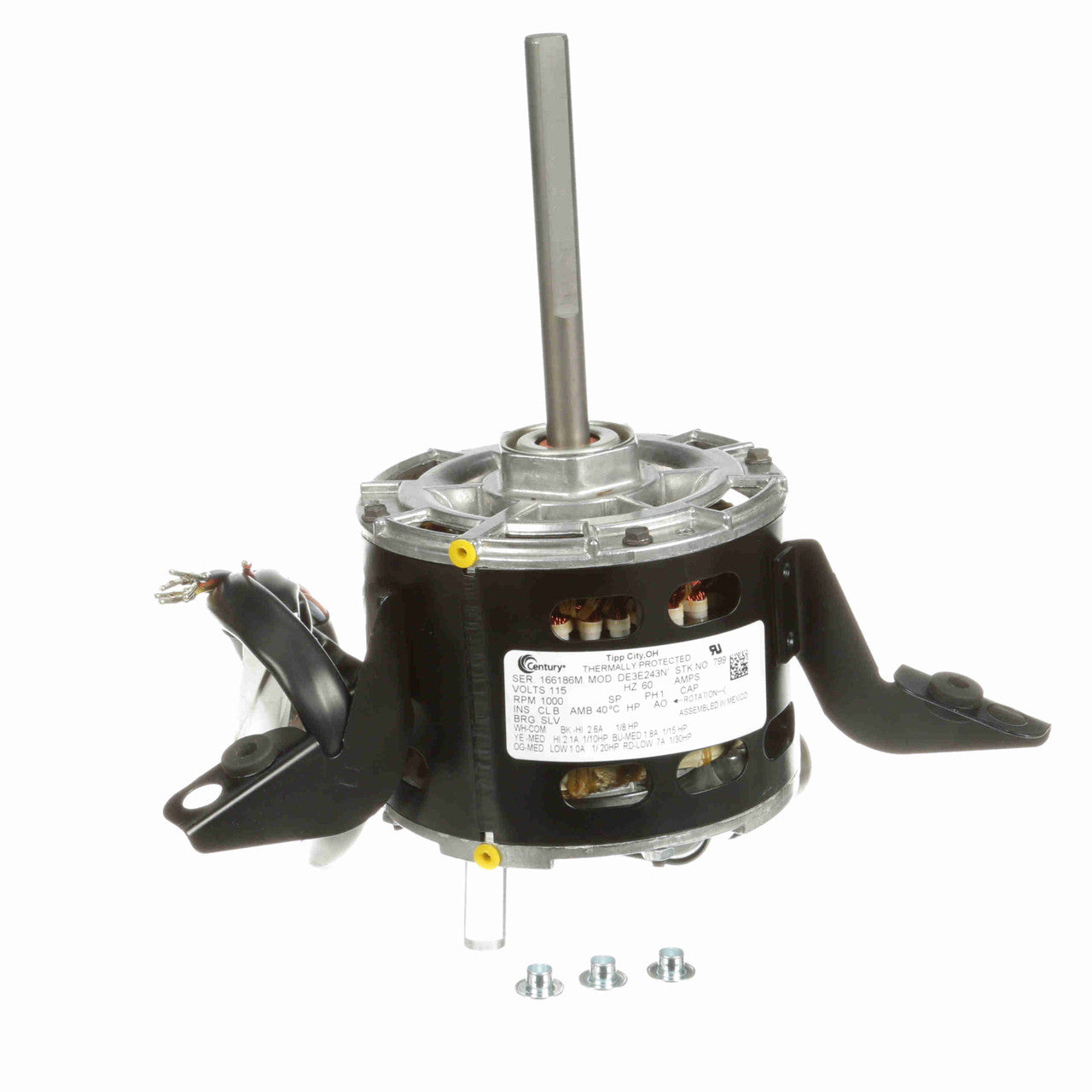

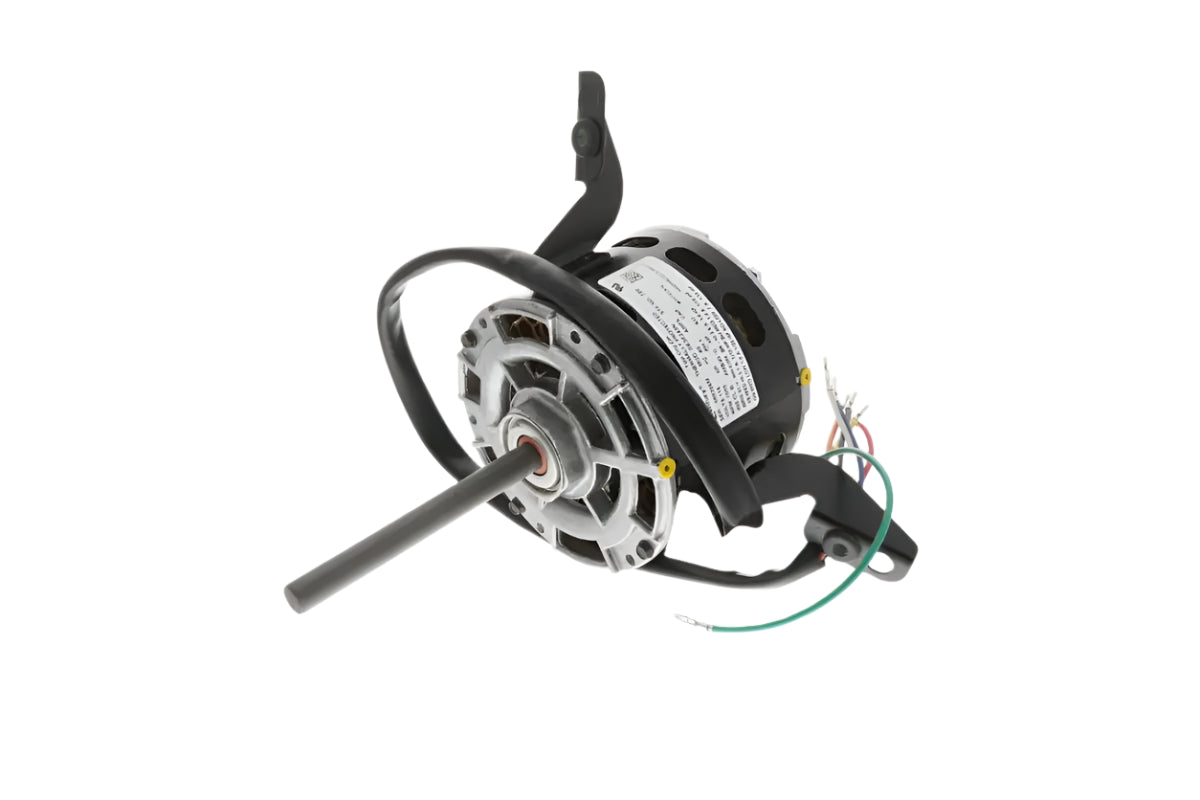

CENTURY MOTORS 799A 5inch 5-Speed Single Shaft Open Fan/Blower Motor 1/8 1/10 1/15 1/20 1/30 HP REPLACEMENT DA3E200

Product Description

The CENTURY MOTORS 799A is a 5-speed single shaft fan and blower motor. This motor operates at 115 volts and reaches around 1000 RPM, suitable for various applications. It supports a power range from 1/8 to 1/30 HP, making it versatile in operation.

• Type: Permanent Split Capacitor
• Built with auto protection for safety
• Designed for continuous air-over applications

Product Highlights

This motor is ideal for applications requiring dependable airflow and includes thermal protection. Its open construction allows effective heat dissipation, enhancing efficiency in various environments.

Product Information

Standard Information

• Brand: CENTURY
• Model: 799A

Technical Specifications

• Horse Power: 1/30, 1/20, 1/15, 1/10, 1/8
• RPM: 1000
• Insulation Class: B
• Poles: 6
• Phase: 1
• Speeds: 5
• Duty: Continuous Air Over
• Enclosure Type: Open Air Over
• Overload Protection: Automatic
• Motor Orientation: Horizontal
• Hertz: 60
• Voltage: 115V
• Rotation: CWSE
• Amperage: 2.6
• Frame: 42
• Diameter: 5 inches
• Bearings: Sleeve
• Service Factor: 1.0
• Thermal Protection: Automatic
• Motor Type: PSC
• Shaft Type: Flat
• Shaft Diameter: 0.500 inches
• Shaft Extension: 5.08 inches
• Country/Region of Manufacture: MX
• Manufacturer Warranty: 1 year
• Dimensions (Length x Width x Depth): 13.400 x 12.800 x 12.800 inches
