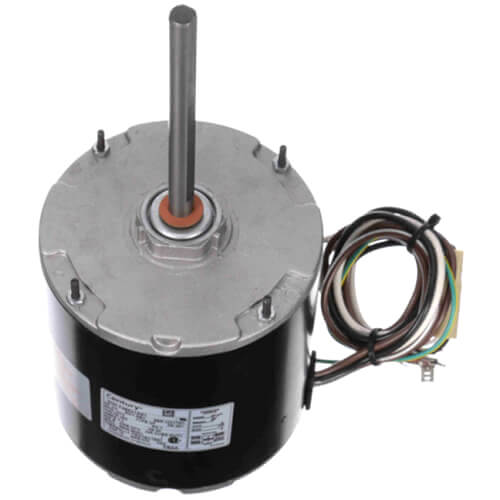

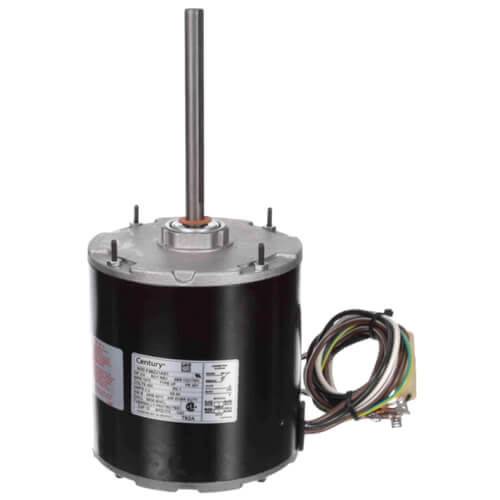

Century 792A 5-5/8 Outdoor Ball Bearing Motor 460V 1075 RPM 3/4 HP

Product Description

The Century 792A 5-5/8 Outdoor Ball Bearing Motor is designed for HVAC applications, providing efficient performance at 460V and 1075 RPM with a power of 3/4 HP. This motor is suitable for various mounting options and includes automatic overload protection.

• Energy Efficient
• 48Y Frame
• Stud / Belly Band Mounting

Product Highlights

Featuring single-phase operation and a 60 HZ frequency, the Century 792A motor is ideal for HVAC systems. Its reversible rotation and sleeve bearings ensure durable performance.

Product Information

Standard Information

• Brand: Century
• Model: 792A

Technical Specifications

• RPM: 1075
• Duty: Air Over
• Type: Permanent Split Capacitor
• Frame: 48Y
• Hertz: 60
• Mount: Extended Studs
• Phase: 1
• Poles: 6
• Speeds: 1
• Voltage: 460V
• Amperage: 2.2
• Bearings: Sleeve
• Rotation: Reversible
• Horse Power: 3/4
• Enclosure Type: Semi-Enclosed
• Insulation Class: B
• Diameter: 5-5/8 inches
• Motor Orientation: Any
• Overload Protection: Automatic
• Max Ambient Temp: 140°F
