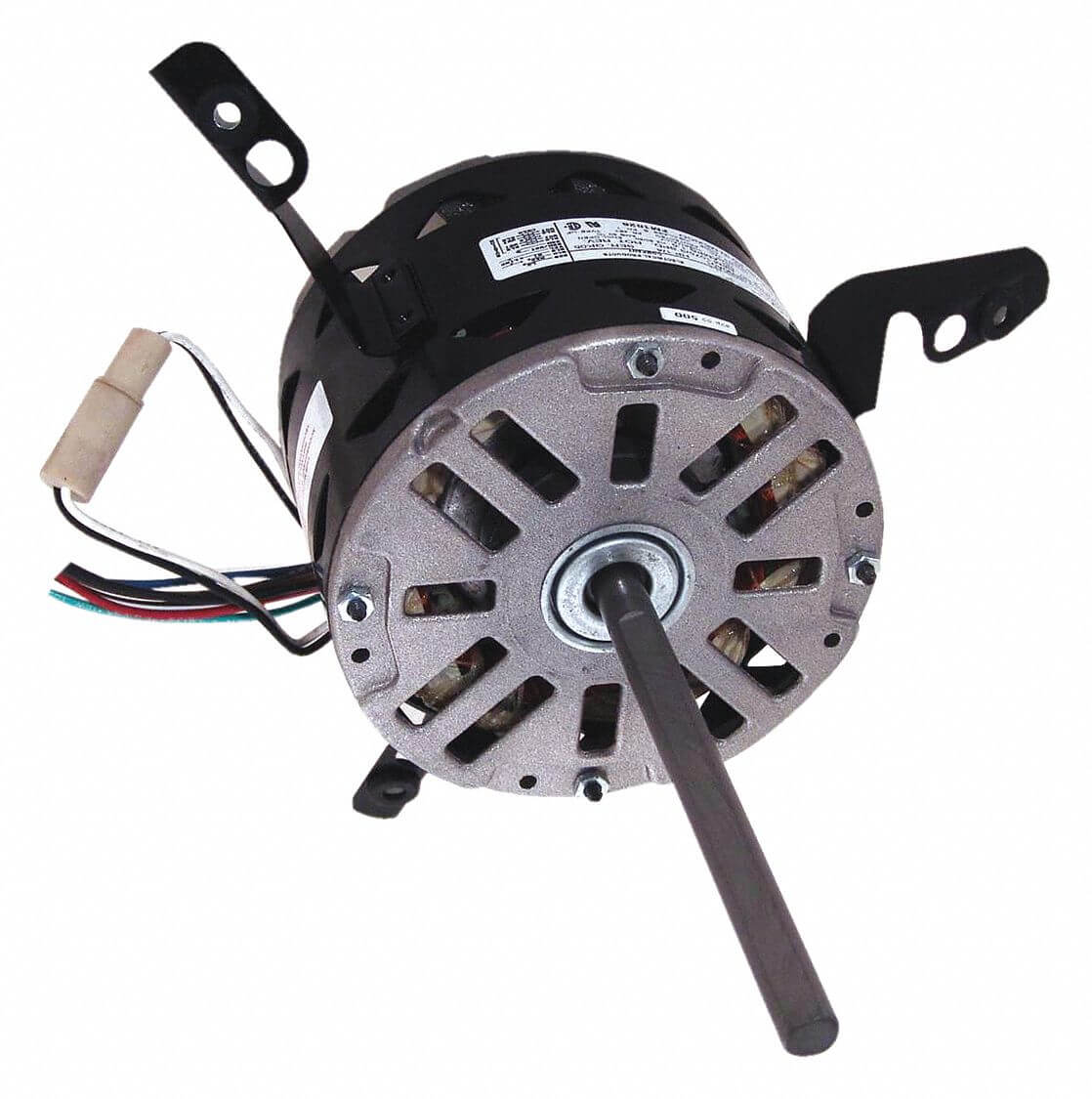

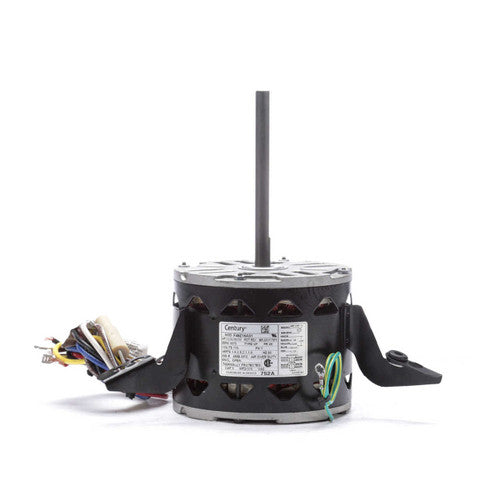

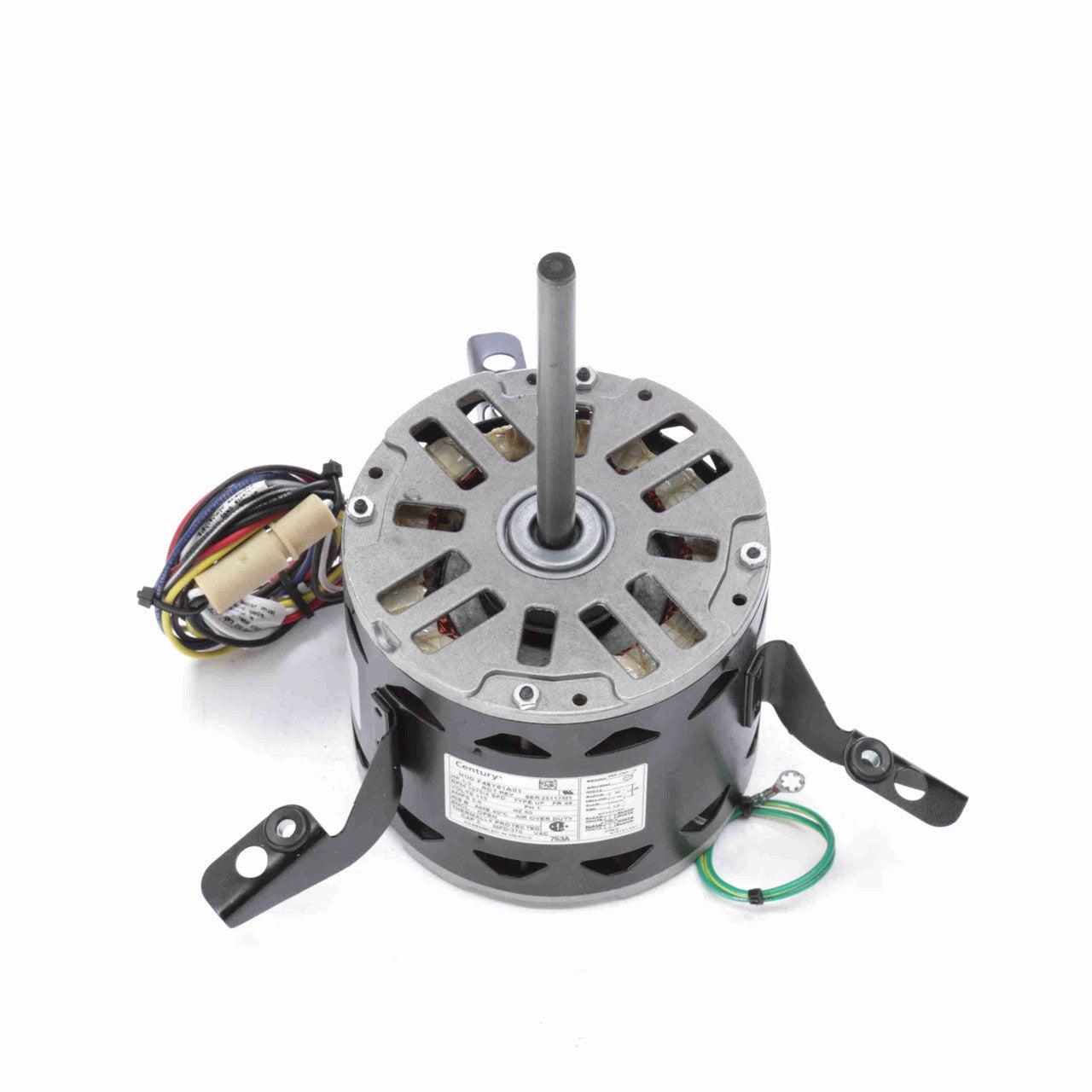

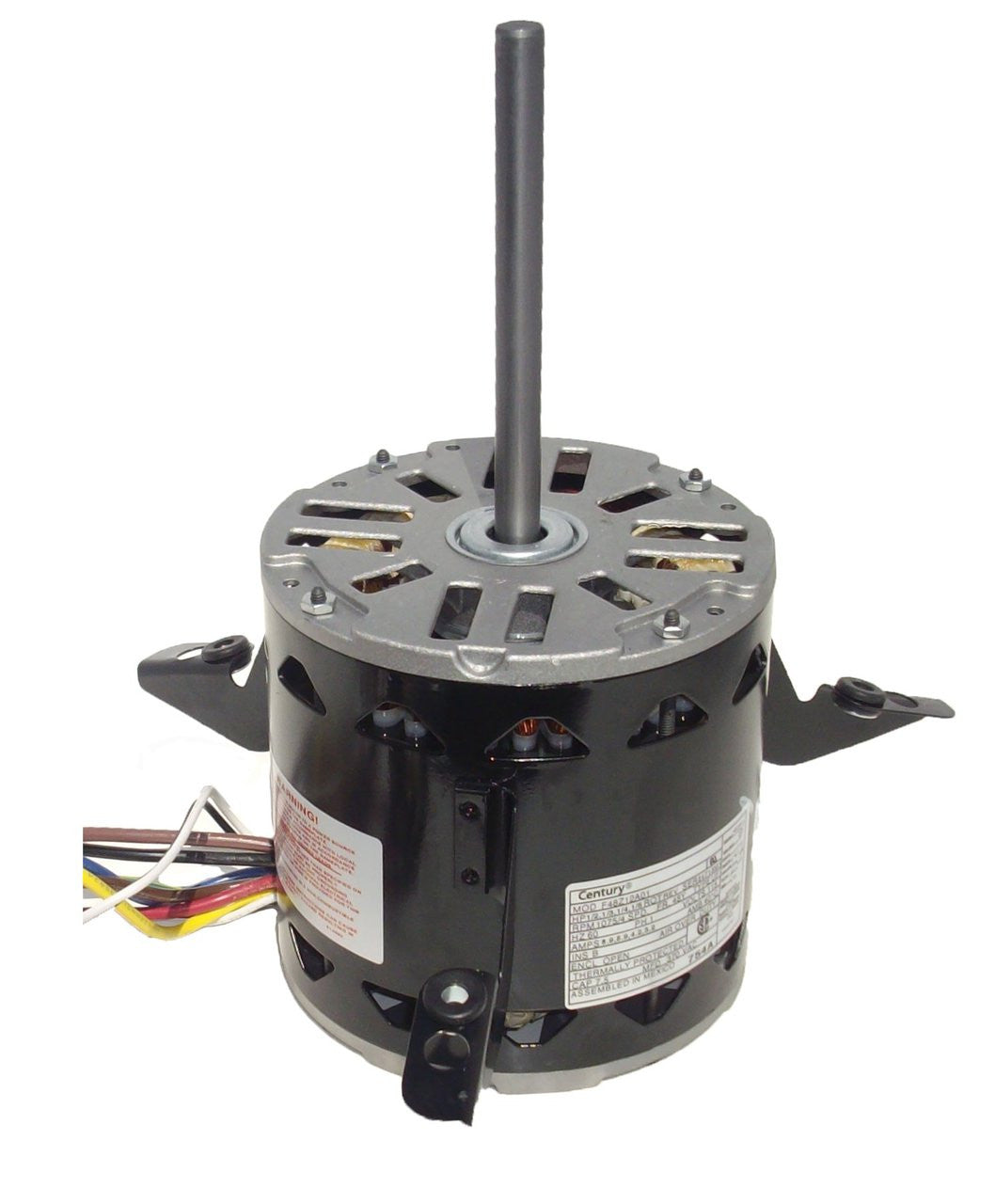

CENTURY MOTORS 753A-CL CENTURY MOTORS 753A 1/3 HP 1075 RPM Direct Drive Blower Motor

Product Description

The Century Motors 753A-CL is a 1/3 HP direct drive blower motor designed for HVAC systems. It operates efficiently at 115 volts and 1075 RPM. This motor is ideal for fan coil units and air conditioning applications in both residential and commercial settings.

• Direct drive blower motor for HVAC systems.
• Running at 1/3 HP, 115V, and 1075 RPM.
• Open air over (OAO) enclosure with a 48 frame.

Product Highlights

This energy-efficient motor is built to endure the demands of modern heating setups, providing reliable operation.

Product Information

Standard Information

• Brand: Century Motors
• MPN: 753A-CL

Technical Specifications

• HP: 1/3
• RPM: 1075
• Voltage: 115V
• Speeds: 4
• Frame: 48
• Phase: 1
• Enclosure Type: Open Air Over (OAO)
• Rotation: Reversible
• Shaft Diameter: 1/2 inch
• Amps: 5.6
• Frequency: 60 Hz
• Mounting Type: Flexible Arms
• Frame Material: Rolled Steel
• Insulation Class: Class B
• Max. Ambient Temp.: 40 Degrees C
