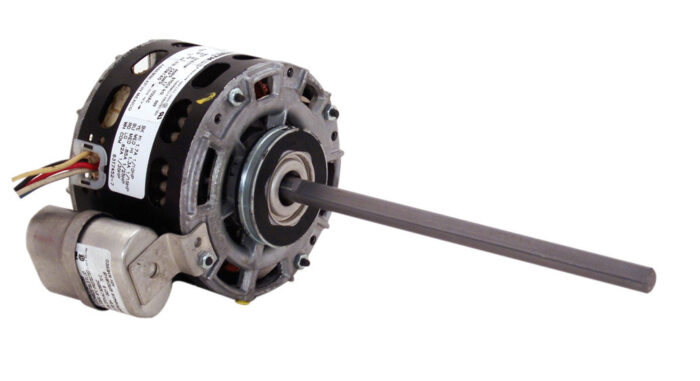

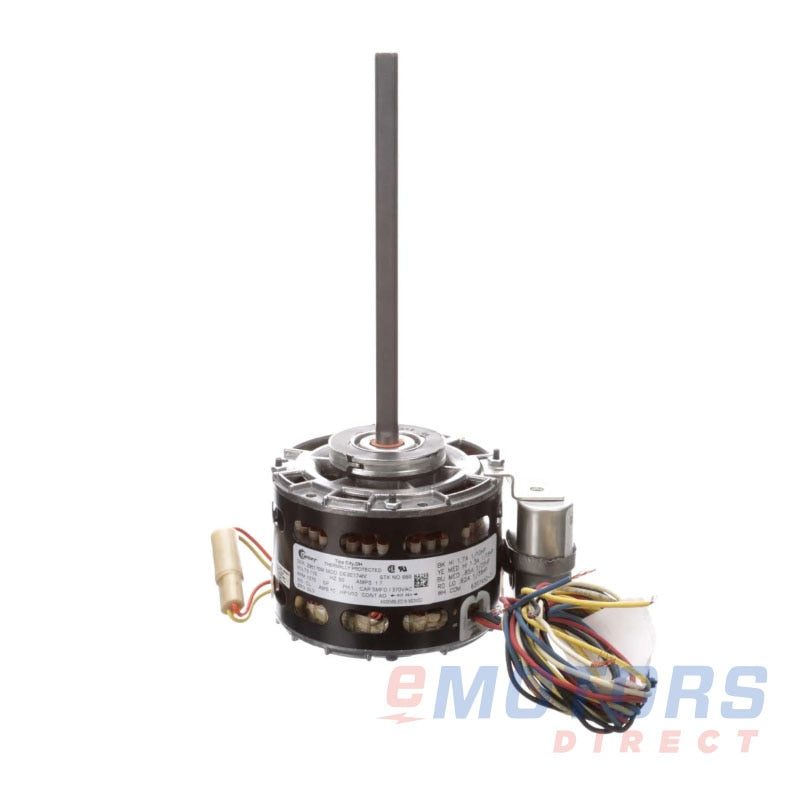

CENTURY MOTORS 669A Furnace Motor 1/10 HP 4-Speed

Product Description

The CENTURY MOTORS 669A is a reliable single-phase motor suited for use in furnace and air conditioning systems. It operates at one hundred fifteen volts and sixty hertz. This motor has an Open Air Over (OAO) enclosure made of rolled steel and features a half-inch diameter flatted shaft. It provides automatic overload protection and is designed to be reversible for flexible installation.

• Operates at one hundred fifteen volts and sixty hertz.
• Features a half-inch diameter flatted shaft.
• Designed with an OAO enclosure and includes automatic overload protection.

Product Highlights

Product Information

Standard Information

• Brand: CENTURY MOTORS
• MPN: 669A

Technical Specifications

• Rated Motor Output Power: 1/10 HP
• Rated Motor Speed: 1075 RPM
• Input Voltage: 115V
• Rated Motor Current: 1.7 AMP
• Frequency: 60 Hz
• Number of Speeds: 4
• Frame Size: 42
• Enclosure: OAO
• Rotation: Reversible
• Shaft Diameter: 0.5 inches
• Shaft Length: 8.58 inches
• Ambient Temperature: 40°C
• Efficiency: 65%
• Weight: 9 lbs
• Motor Type: Permanent Split Capacitor
• Agency Certification: UR/CSA
• Run Capacitor: 5 Mfd-370 Volts
