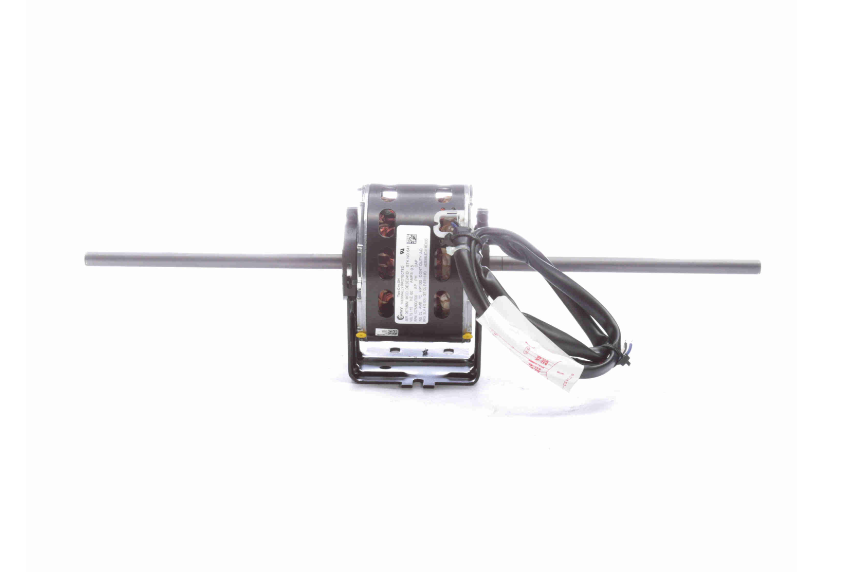

CENTURY MOTORS 641A Fan/Blower Motor 115V 5 Inch 3-Speed

Product Description

The CENTURY MOTORS 641A is a five inch, three-speed double shaft fan/blower motor operating at 115 volts. It is designed with a permanent split capacitor and continuous air over functionality. The motor also has a resilient base that provides stability. The leads measure a minimum of thirty-six inches long and it includes sleeve bearings and flatted shafts for better performance. This unit operates at sixty hertz and is built for a maximum ambient temperature of forty degrees Celsius.

• Permanent Split Capacitor design
• Three operational speeds
• Open construction with continuous air over

Product Highlights

This motor is suitable for various fan and blower applications, allowing for versatile installation and reliable operation. Its durability and efficiency make it a solid choice for professionals in HVAC and related fields.

Product Information

Standard Information

• Brand: CENTURY MOTORS
• MPN: 641A

Technical Specifications

• Type: Permanent Split Capacitor
• Horse Power: 1/30, 1/60, 1/125
• Bearings: Sleeve
• Voltage: 115V
• RPM: 1075
• Rotation: CWLE
• Enclosure Type: Open
• Speeds: 3
• Amperage: 0.3, 0.5, 0.4
• Phase: 1
• Output HP: 1/30 HP
• Service Factor: 1.0
• Frame: 42
• Enclosure: Open Air Over
• Thermal Protection: IMPEDANCE
• Ambient Temperature: 40 degrees Celsius
• Frequency: 60 Hz
• Duty: Continuous Air Over
• Insulation Class: B
• UL: Recognized
• CSA: Y
• CE: N
• Electrical Type: Permanent Split Capacitor
• Starting Method: Across The Line
• Poles: 6
• Mounting: Resilient Base
• Frame Material: Rolled Steel
• Shaft Type: Flat
• Shaft Diameter: 0.5 inches
• Frame Length: 3.58 inches
• Packaged Length: 22.88 inches
• Packaged Width: 6.25 inches
• Packaged Height: 6.44 inches
