Product Information

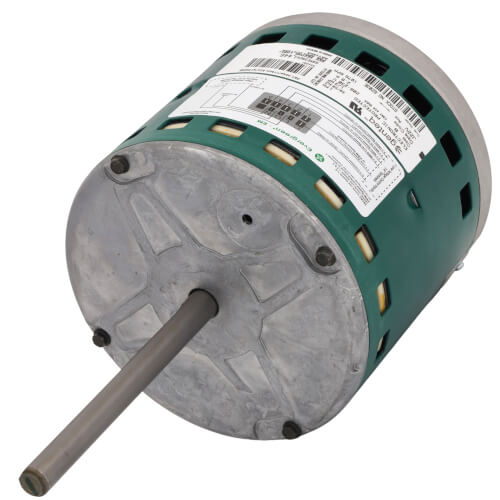

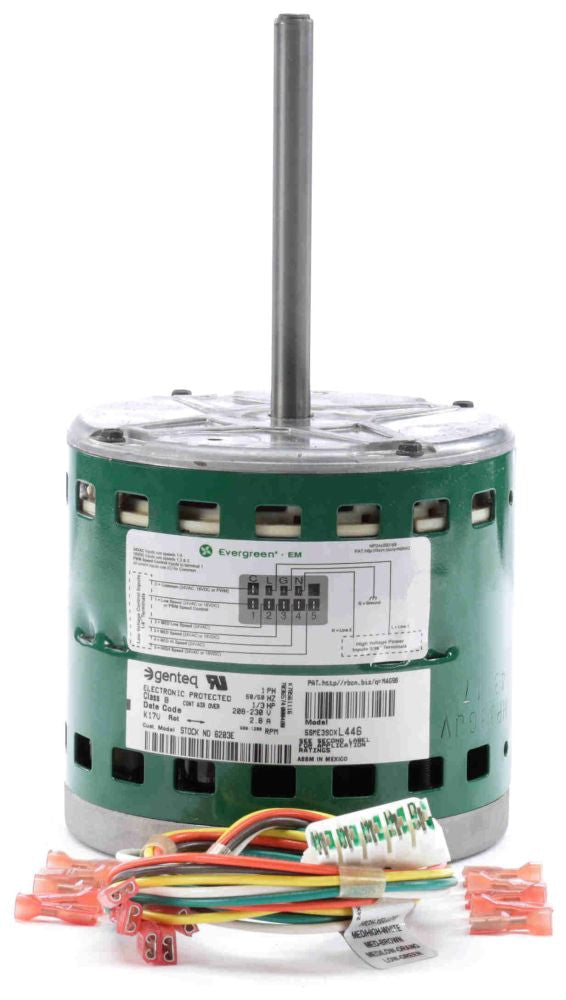

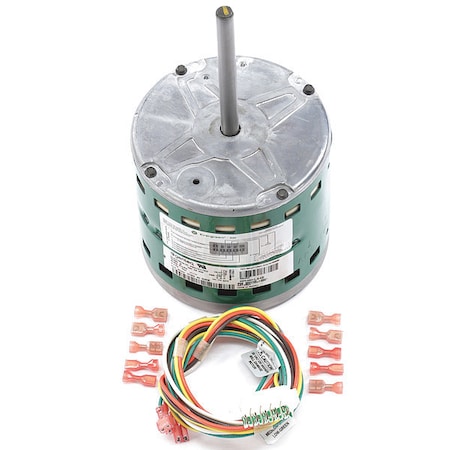

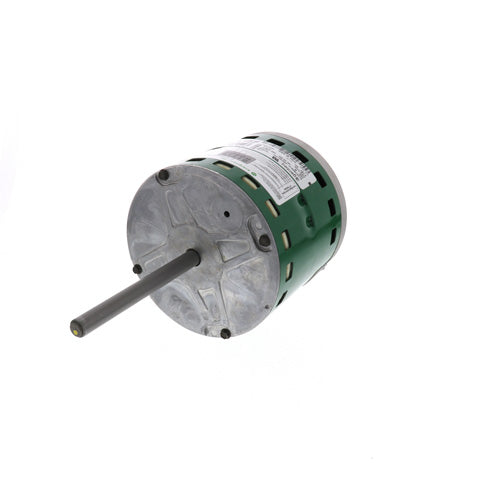

• High Efficiency EC 48 Frame Motor
• Maintains ECM Level Efficiency up to 80%
• Replaces Either PSC or X13 of Equivalent HP
• Multi-Volt 115/230VAC
• Replace 115 or 230 Volt with One Model
• Includes Wiring Harness and Simple Installation Guide
• Rotation Sensing Technology
• Automatically Selects Correct Rotation with First Start-Up
• 50/60 Hertz
Specifications:
• H.P.: 1/3
• Speeds: 1
• Amps: 5.0/3.0
• Rotation: Rotation Sensing Technology
• RPM: 1075
• Bearings: Ball
• Enclosure: Open
• Mounting: Belly Band
• Motor Type: Electronically Commutated
• Frame: 48
• Overload Protection: Electronic
• Hertz: 50/60
• Shaft Dimension (In.): 1/2 x 5
• Efficiency: Up to 80%
• Lead Lengths (In.): 45
• Includes: Wiring Harness & Installation Guide
• Voltage: 115/208 – 230
