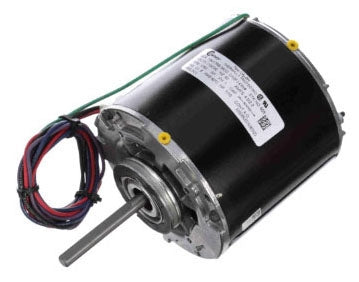

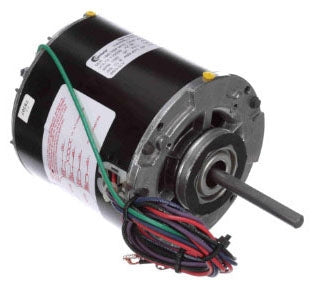

Regal Rexnord - Century Motors 608 1/10 HP 115/230 Volt AC 1-Phase Refrigeration Motor

Product Description

The Regal Rexnord - Century Motors 608 is a refrigeration motor designed for efficiency. This motor operates at one-tenth horsepower, with voltage options of 115/230 volts in a single-phase configuration. With a speed rating of 1050 RPM and six poles, it is suitable for a range of HVAC applications.

• Voltage: 115/230 VAC
• Speed: 1050 RPM
• Reversible Operation

Product Highlights

This motor is designed with a shaded pole for reliable performance. Its robust construction with a rolled steel frame ensures durability. It features a resilient ring mount for stable and secure installation.

Product Information

Standard Information

• Brand: Regal Rexnord - Century Motors
• MPN: 608

Technical Specifications

• Power Rating: 1/10 HP
• Voltage Rating: 115/230 Volt AC 1-Phase
• Frequency Rating: 60 Hertz
• Motor FLA: 4.6/2.3 Amp
• Speed Rating: 1050 RPM
• Reversible: Yes
• NEMA Frame Size: 42
• Insulation Class: A
• Frame Material: Rolled Steel
• Mounting: Resilient Ring
• Weight: 8 Pound
• Applications: Refrigeration, Unit Heater, Space Heater
• Approval: UL, CSA
• Starting Method: Induction Run
• Ambient Temperature Rating: 40 Degrees Celsius
