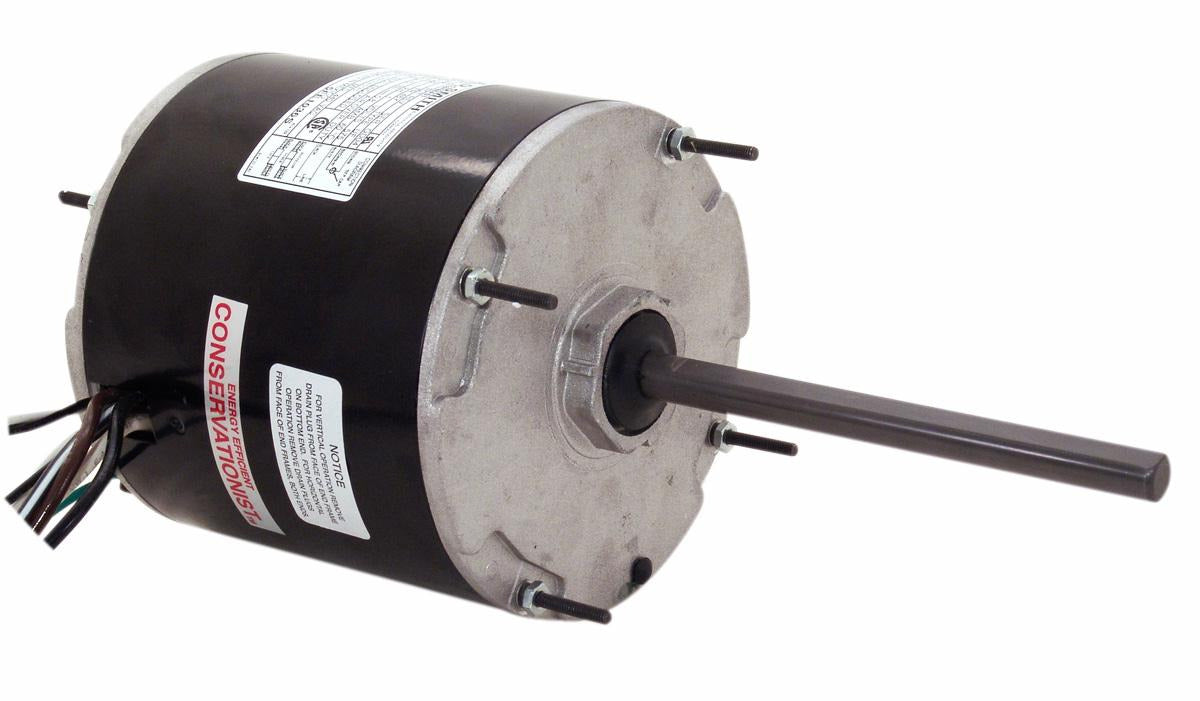

Century 5FE1054S Condenser Fan Motor 1/2 HP 575V

Product Description

The Century 5FE1054S Condenser Fan Motor is designed for reliable performance in HVAC systems. With a power rating of 1/2 HP and operating at 575 volts, it ensures efficient cooling for your condenser unit.

• Electrical Type: PSC
• HP: 1/2
• RPM: 1625

Product Highlights

This motor features a TEAO enclosure and a durable rolled steel construction. It is equipped with ball bearings for smooth operation and has an auto overload protector for safety. The REV rotation and flat shaft type make it versatile for various mounting positions.

Product Information

Standard Information

• Brand: Century
• MPN: 5FE1054S

Technical Specifications

• Electrical Type: PSC
• HP: 1/2
• KW: 0.37
• RPM: 1625
• Frame: 48Y
• Diameter: 5.6 inches
• Enclosure: TEAO
• Phase: Single
• Voltage: 575
• Rotation: REV
• Overload: Auto
• Material: Rolled Steel
• Bearings Type: Ball / Ball
• Mounting: Extended Studs
• Amperage: 1.0
• Shaft Type: Flat
• Shaft Extension: 6.5 inches
• Shaft Diameter: 0.5 inches
• Ambient Temperature: 60 degrees C
• Duty: Air Over
• Insulation Class: B
• Poles: 4
• Service Factor: 1
• Start Method: Across The Line
