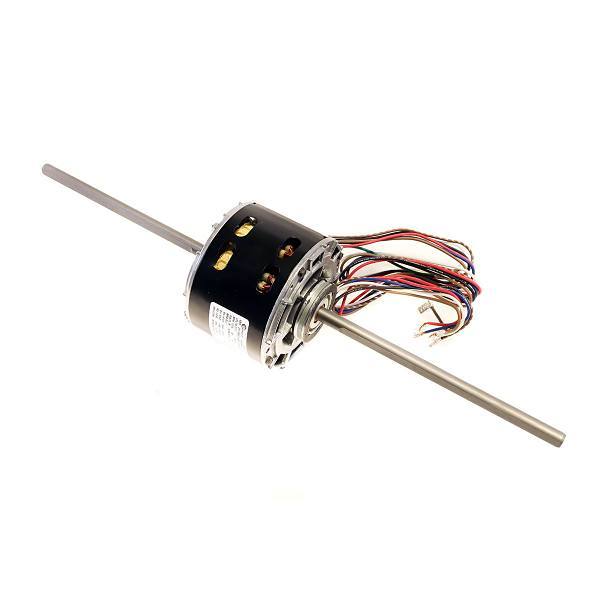

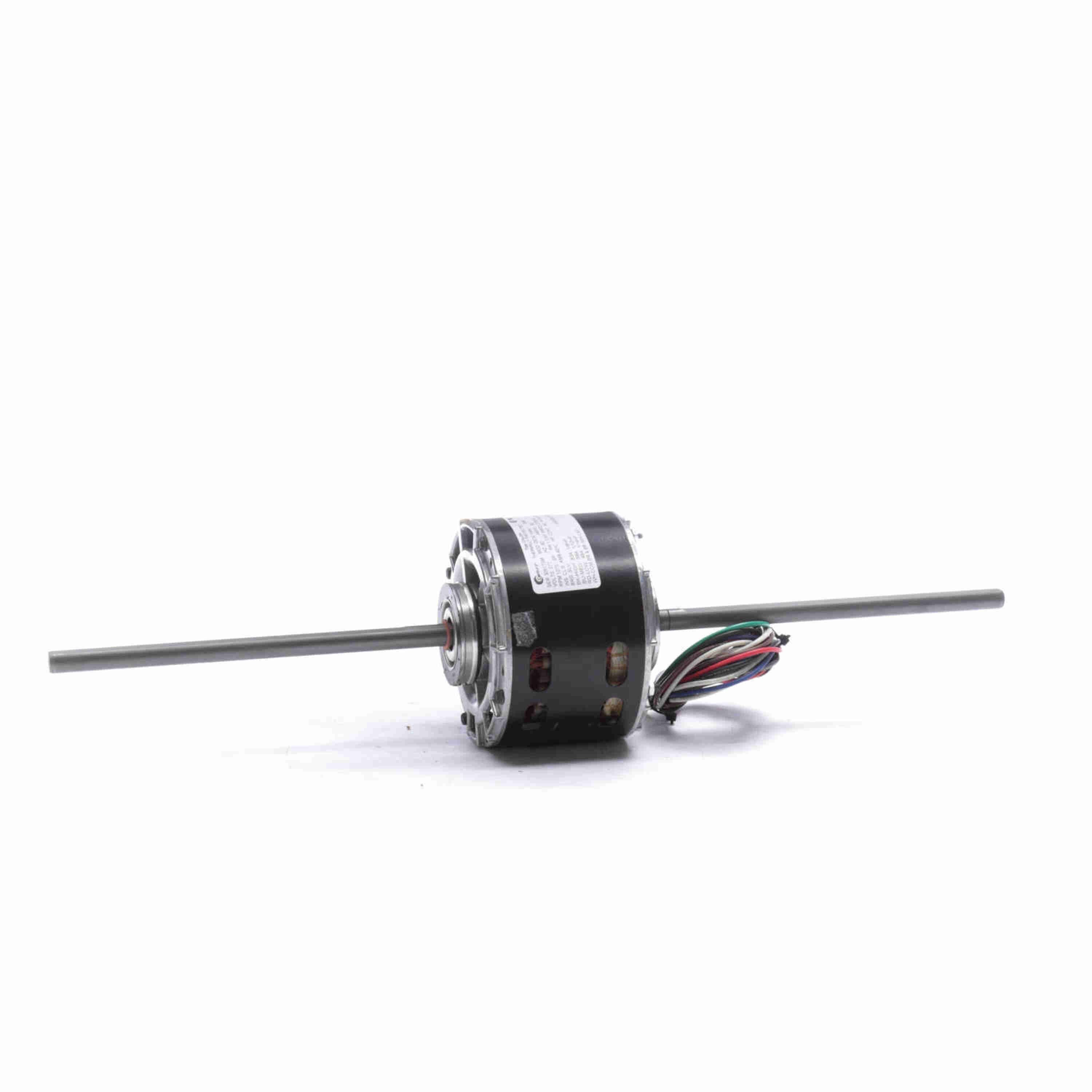

CENTURY MOTORS 596A OEM Replacement Motor 1/8-1/12-1/14 HP 277V

Product Description

The Century Motors 596A is a single-phase OEM replacement motor with the MPN 596A. It operates at a voltage of 277V and has a speed of 1075 RPM. This motor is suitable for applications requiring three speed options and features a 42 frame.

• Operates at 1/8, 1/12, 1/14 horsepower
• Thermally protected with open air over enclosure
• Uses permanent split capacitor electrical type

Product Highlights

This motor is designed for continuous air over duty and includes thermal protection for safe operation. It rotates counterclockwise at the lead end, making it ideal for many HVAC applications.

Product Information

Standard Information

• Manufacturer Part Number: 596A
• Phase: 1

Technical Specifications

• Output HP: 1/8, 1/12, 1/14 HP
• Voltage: 277 V
• Speed: 1075 RPM
• Service Factor: 1.0
• Frame: 42
• Enclosure: Open Air Over
• Thermal Protection: Thermally Protected
• Efficiency: 44 %
• Current: 0.83, 0.59, 0.49 A
• Duty: Continuous Air Over
• Insulation Class: B
• Number of Speeds: 3
• Electrical Type: Permanent Split Capacitor
• Rotation: Counterclockwise Lead End
• Mounting Type: Resilient Rings
• Frame Material: Rolled Steel
• Shaft Diameter: 0.500 in
• Shaft Length: 9 in
