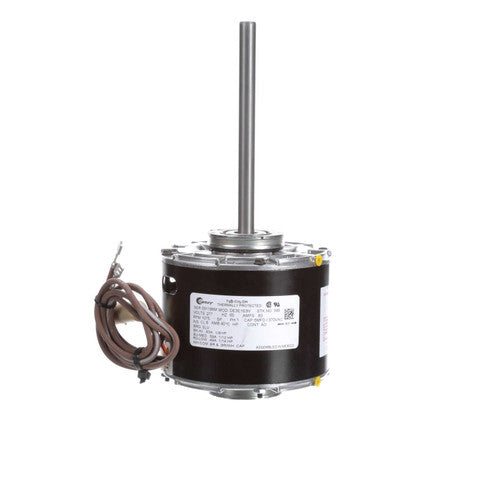

CENTURY MOTORS 595A Century Motors 595A Permanent Split Capacitor Motor Power 1/8 HP

Product Description

The Century Motors 595A is a reliable single-phase permanent split capacitor motor designed for continuous operation. This motor operates at 277V with a speed of one thousand seventy-five RPM. It features a 42 frame and has an open air over enclosure, making it suitable for a variety of HVAC applications.

• Permanent split capacitor design for efficiency.
• Reversible rotation for installation flexibility.
• Automatic thermal protection for safety.

Product Highlights

This motor is ideal for furnace blowers, air handlers, fan coils, and air conditioning systems.

Product Information

Standard Information

• Brand: Century
• Country of Origin: Mexico

Technical Specifications

• MPN: 595A
• Horsepower: 1/8 HP
• Voltage: 277 V
• Frequency: 60 Hz
• Phase: 1
• Speed: 1075 RPM
• Number of Speeds: 3
• Full Load Amps: 0.83/0.59/0.49 FLA
• Rotation: Reversible
• Bearing Type: Sleeve
• Enclosure Type: Open Air Over
• Mounting Type: Resilient Rings
• Frame Size: 42
• Thermal Protection: Automatic
• Insulation Class: B
• Ambient Temperature: 40 °C
• Shaft Diameter: 0.500 inches
• Shaft Extension: 6.5 inches
• Shaft Type: Flat
• Certifications: UL and CSA
• Electrical Type: Permanent Split Capacitor
• Frame Material: Rolled Steel
• Frame Length: 3.83 inches
