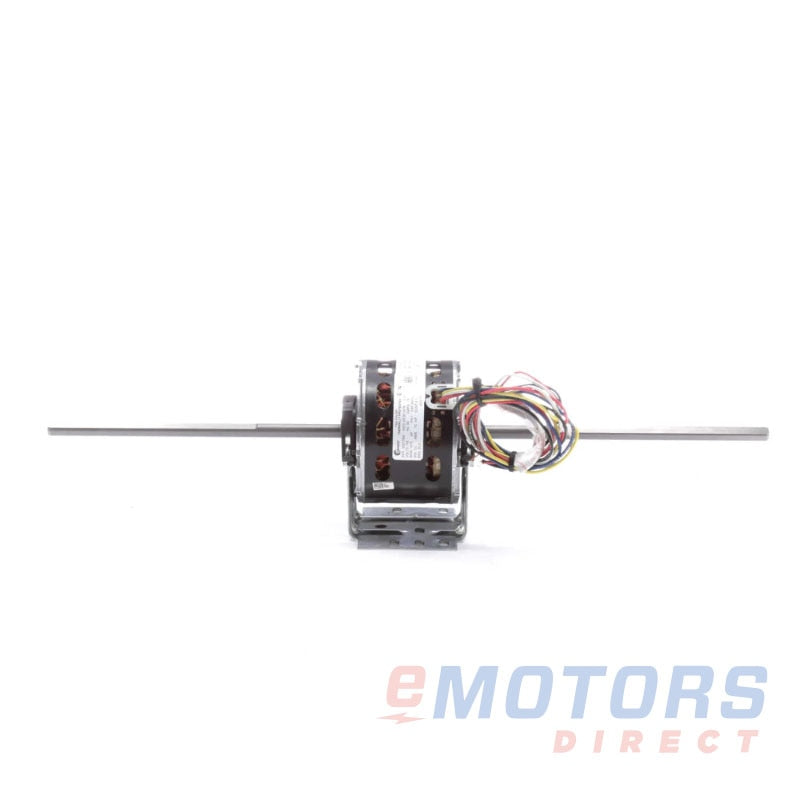

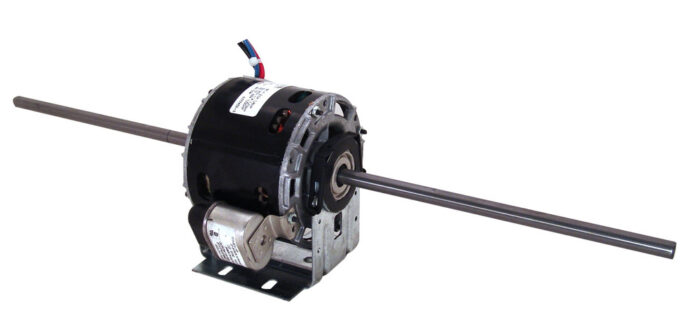

CENTURY MOTORS 546A Furnace Motor

Product Description

The CENTURY MOTORS 546A is a single-phase motor ideal for fan coil and air conditioner systems. It operates on one hundred fifteen volts and sixty hertz, achieving a speed of one thousand seventy-five RPM. This motor comes with a 42 frame and features an open air over (OAO) enclosure along with automatic overload protection.

• Rated output power of one twentieth horsepower
• Designed for continuous duty with Class A insulation
• Rolled steel frame construction

Product Highlights

This motor is suitable for various air conditioning applications and provides reliable performance in fan coil operations.

Product Information

Standard Information

• Brand: CENTURY MOTORS
• MPN: 546A

Technical Specifications

• Rated Motor Output Power: 1/20 HP
• Rated Motor Speed: 1075 RPM
• Input Voltage: 115V
• Rated Motor Current: 0.78, 0.55, 0.36, 0.27 AMP
• Frame: 42
• Enclosure: OAO
• Approximate Weight: 11.13 lb
• Insulation Class: A
• Ambient Temperature: 40°C
• Overload Protector: Automatic
