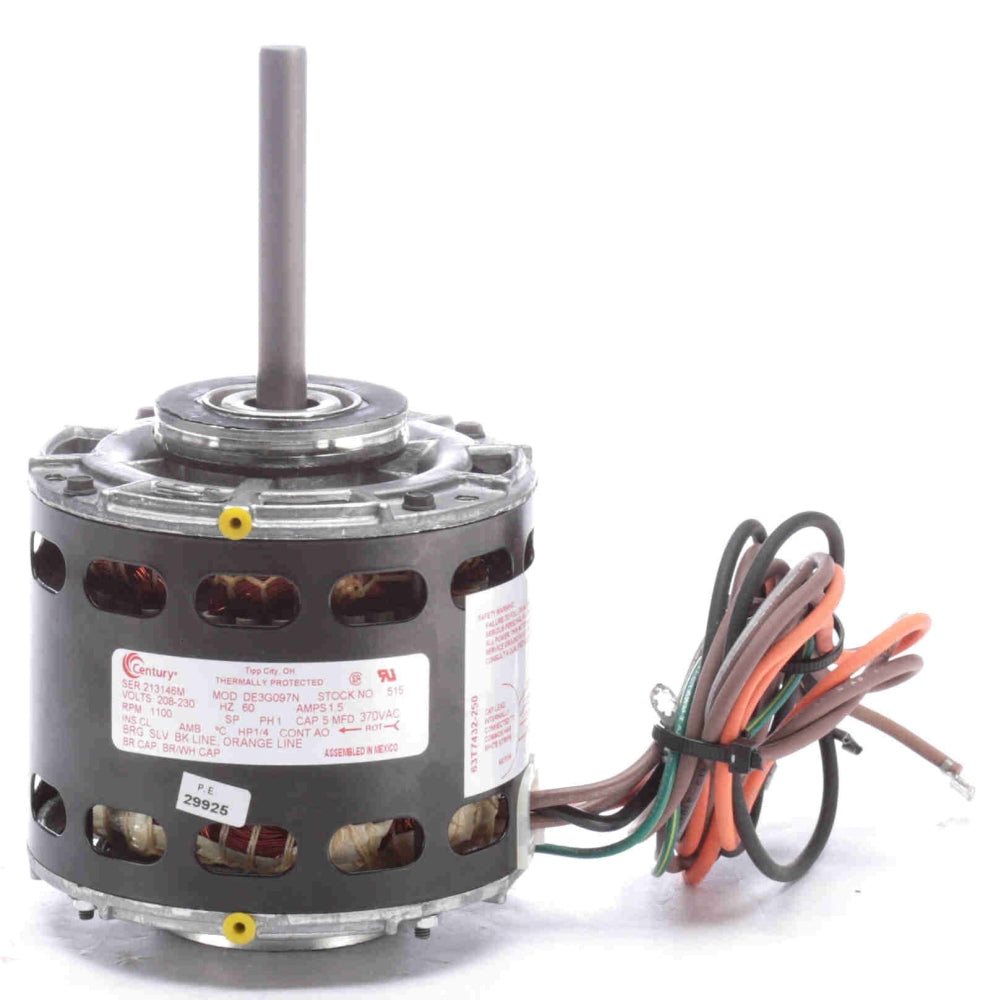

Century Motors 515 HVAC/R Motor 1/4 HP 208 to 230 VAC

Product Description

The Century Motors 515 HVAC/R Motor is designed for reliable operation in applications such as furnaces, air handlers, fan coils, and air conditioning systems. Featuring a resilient ring mount and an open air-over enclosure, this motor is built to ensure continuous duty performance.

• Efficient 1/4 HP output with an operational voltage of 208 to 230 VAC and a frequency of 60 Hz.
• Constructed with a NEMA 42Y rolled steel frame for durability.
• Utilizes a permanent split capacitor start mechanism, enhancing motor efficiency and reliability.

Product Highlights

This motor is equipped with a flat shaft, operates at 1100 RPM and includes a 36-inch lead and a 5 microfarad 370 volt capacitor for installation ease.

Product Information

Standard Information

• Speed: 1100 RPM
• Service Factor: 1

Technical Specifications

• Frame Material: Rolled Steel
• Insulation Class: A
• Mounting Type: Resilient Ring
• Bearing Type: Sleeve (Drive End/Opposite Drive End)
• Approvals: UL, CSA
• Weight: 9 Pounds
