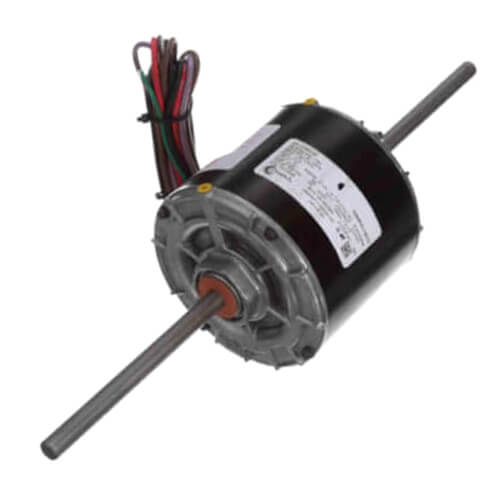

Century 466 5 2-Speed Double Shaft Fan/Blower Motor Less Base 208-230V 1075 RPM 1/4 1/8 HP

Product Description

The Century model 466 is a reliable 5-inch double shaft fan and blower motor designed to deliver efficient performance for HVAC applications. This motor operates on 208-230 volts and features a speed of one thousand seventy-five RPM. It offers dual horsepower options at one fourth and one eighth HP to meet varying operational needs.

• Automatic overload protection
• Continuous air over duty rating
• Equipped with sleeve bearings

Product Highlights

This motor features a compact frame design and is suitable for horizontal installations. It is built with a totally enclosed air over structure to ensure durability in demanding environments.

Product Information

Standard Information

• Brand: Century
• MPN: 466

Technical Specifications

• Voltage: 230V, 208/230V
• Amperage: 1.2, 1.4 Amps
• Duty: Continuous Air Over
• Frame Size: 42
• Speed: 2 Speeds
• Poles: 6
• Enemy Orientation: Horizontal
• Max Ambient Temperature: 140°F
• Insulation Class: B
• Enclosure Type: Totally Enclosed Air Over (TEAO)
