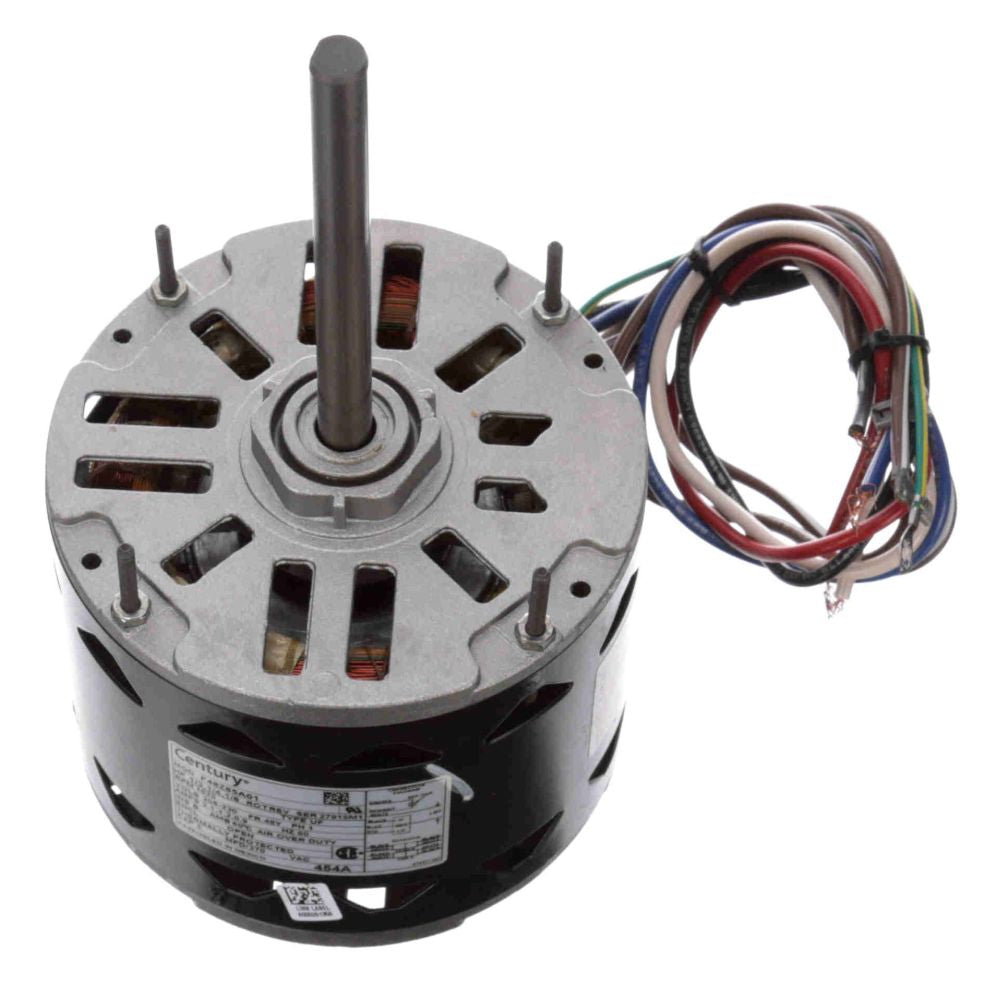

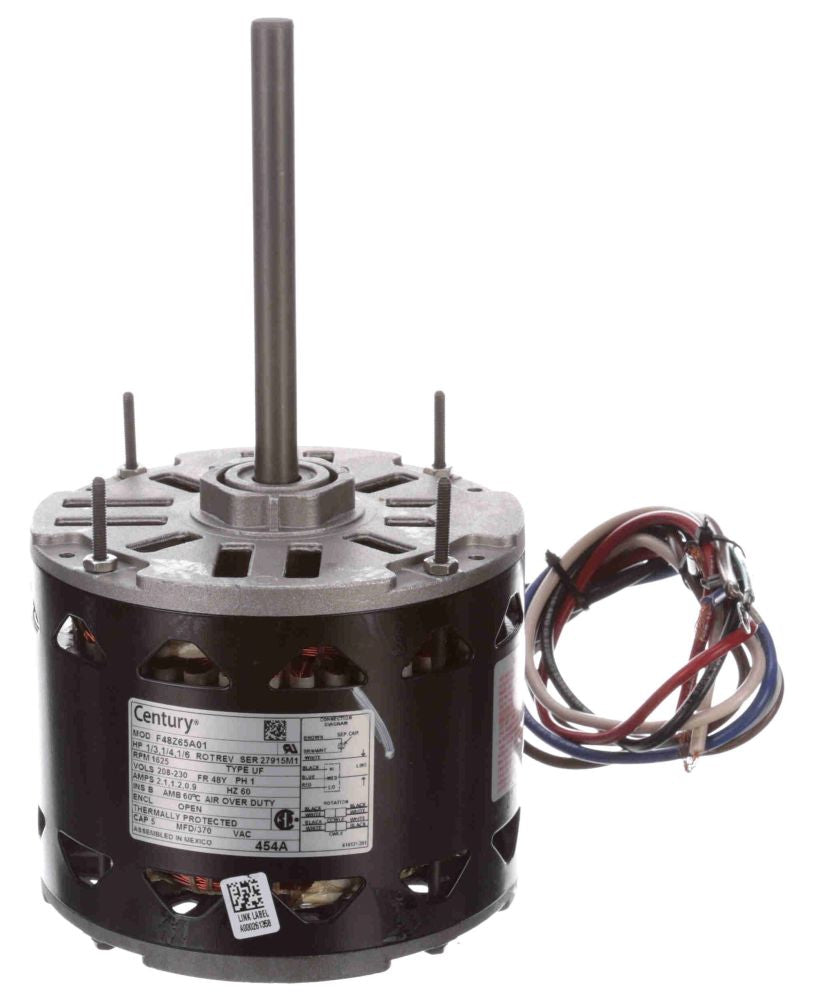

Regal Rexnord - Century Motors 454A 1/3 HP 208-230V 60 Hz 3-Speed

Product Description

The Regal Rexnord Century Motors 454A is a versatile blower motor designed for efficiency and durability. This motor operates at one-third horsepower and is suitable for 208 to 230 volts in single-phase applications. It can handle a current of up to 2.1 amps and features a speed of 1625 RPM with three selectable speeds, allowing for flexibility in various HVAC settings.

• Class B insulation for improved thermal protection.
• Open air-over design, ideal for both indoor and outdoor applications.
• Reversible orientation for installation versatility.

Product Highlights

This motor is perfect for direct drive fans and indoor blower systems. Its robust construction with a rolled steel frame and extended stud mounting ensures reliability in demanding environments.

Product Information

Standard Information

• Brand: Regal Rexnord - Century Motors
• MPN: 454A

Technical Specifications

• Power Rating: 1/3 HP, 1/4 HP, 1/6 HP
• Voltage Rating: 208 to 230 Volt AC
• Frequency Rating: 60 Hertz
• Motor FLA: 2.1 Amp
• Number of Speeds: 3
• Speed Rating: 1625 RPM
• Reversible: Yes
• Frame Material: Rolled Steel
• Insulation Class: B
• NEMA Frame Size: F48Y
• Mounting: Extended Stud
• Weight: 19 Pounds
• Approval: UL, CSA
