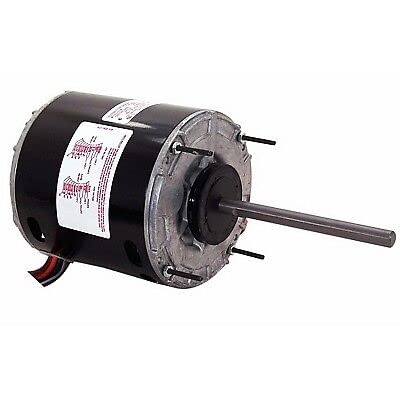

Century Motors 436A 1/3HP 460V Motor 1075RPM 48 Frame

Product Description

The Century Motors 436A is a robust electric motor designed for reliability and efficiency. Suited for a range of industrial applications, this motor features a voltage of 460V and a power output of 1/3 horsepower, making it ideal for high-demand environments.

• Delivers 1075 RPM for optimal performance
• Features resilient ring mounting and automatic overload protection
• Equipped with a permanent split capacitor and ball bearings for long-lasting operation

Product Highlights

This motor is engineered with a reversible rotation capability and contains a single shaft measuring 1/2 inches in diameter and 6 inches in length. It operates at a service factor of 1.00, housed within an open enclosure for enhanced ventilation.

Product Information

Standard Information

• Application: Suitable for fan and blower assemblies in industrial settings
• Installation: Offers easy installation and maintenance, thanks to its compact design and versatile mounting options

Technical Specifications

• Frame Size: 48
• Motor Type: Permanent Split Capacitor
• Voltage: 460V
• Power: 1/3HP
• RPM: 1075
• Insulation: Class F
• Enclosure Type: Open
• Service Factor: 1.00
