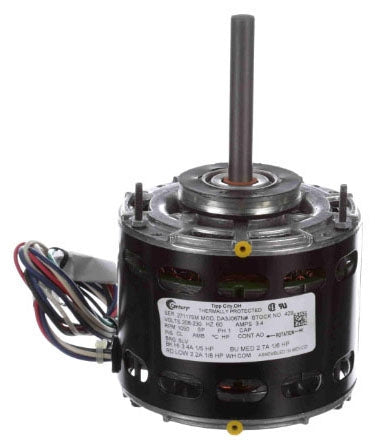

Regal Rexnord Century 429 Blower Motor 1/5 HP 208-230V 1050 RPM 3-Speed

Product Description

The Regal Rexnord Century 429 blower motor delivers reliable performance for HVAC and other applications. This motor has a power rating of 1/5 HP and operates on 208 to 230 volts, single-phase power.

• 1/5 HP power rating
• 208 to 230 volts AC, single-phase
• 1050 RPM with 3-speed operation

Product Highlights

This motor is ideal for use in furnace blowers, attic ventilators, air handlers, and fan coil units, providing efficient and reliable operation.

Product Information

Standard Information

• Brand: Regal Rexnord - Century Motors
• Model: 429

Technical Specifications

• Approval: UL, CSA
• Mounting: Resilient Ring
• Motor FLA: 3.4 Amp, 2.7 Amp, 2.2 Amp
• Power Rating: 1/5 HP, 1/6 HP, 1/8 HP
• Speed Rating: 1050 RPM
• Enclosure Type: Open Air-Over
• Frame Material: Rolled Steel
• Voltage Rating: 208 to 230 Volt AC, Single-Phase
• NEMA Frame Size: 42Y
• Insulation Class: A
• Number Of Speeds: 3
• Frequency Rating: 60 Hertz
• Service Factor: 1
