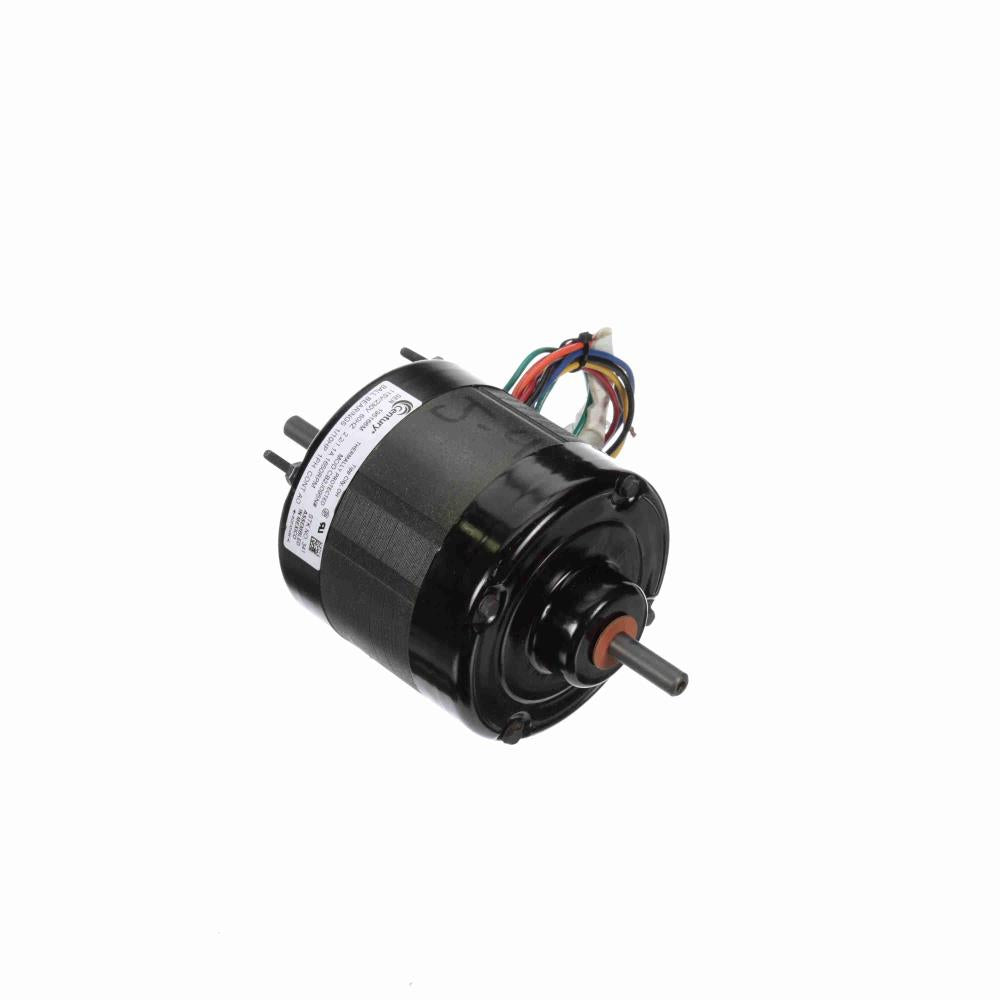

Century Motors 341 115/230V 1/10HP 1650RPM Motor

Product Description

The Century Motors 341 motor is a high-performance, shaded-pole condenser fan motor designed for reliability and efficiency. Ideal for HVAC applications, this motor operates at an output of 1/10 horsepower with a speed of 1650 RPM.

• Designed for continuous air-over applications.
• Features automatic overload protection for enhanced safety.
• Equipped with extended studs for flexible mounting options.

Product Highlights

This motor is engineered to perform well in various industrial settings with a service factor of 1 and an electrical voltage capacity of 115/230 volts. Suitable for both horizontal mounting, this motor ensures consistent operation with its single-speed functionality and counterclockwise rotation.

Product Information

Standard Information

• Manufactured by: Century Motors
• Country of Origin: Mexico

Technical Specifications

• Type: Shaded Pole, Single Phase
• Frame Size: 4.4 inches
• Enclosure: Open Air-Over (OAO)
• Current: 2.2/1.1 amps
• Bearings: Ball/Ball
• Material: Rolled Steel
• Shaft: Diameter 0.375 inches, Extension 2 X 3/8 X 2 inches
• Certifications: UL Recognized, CSA approval
