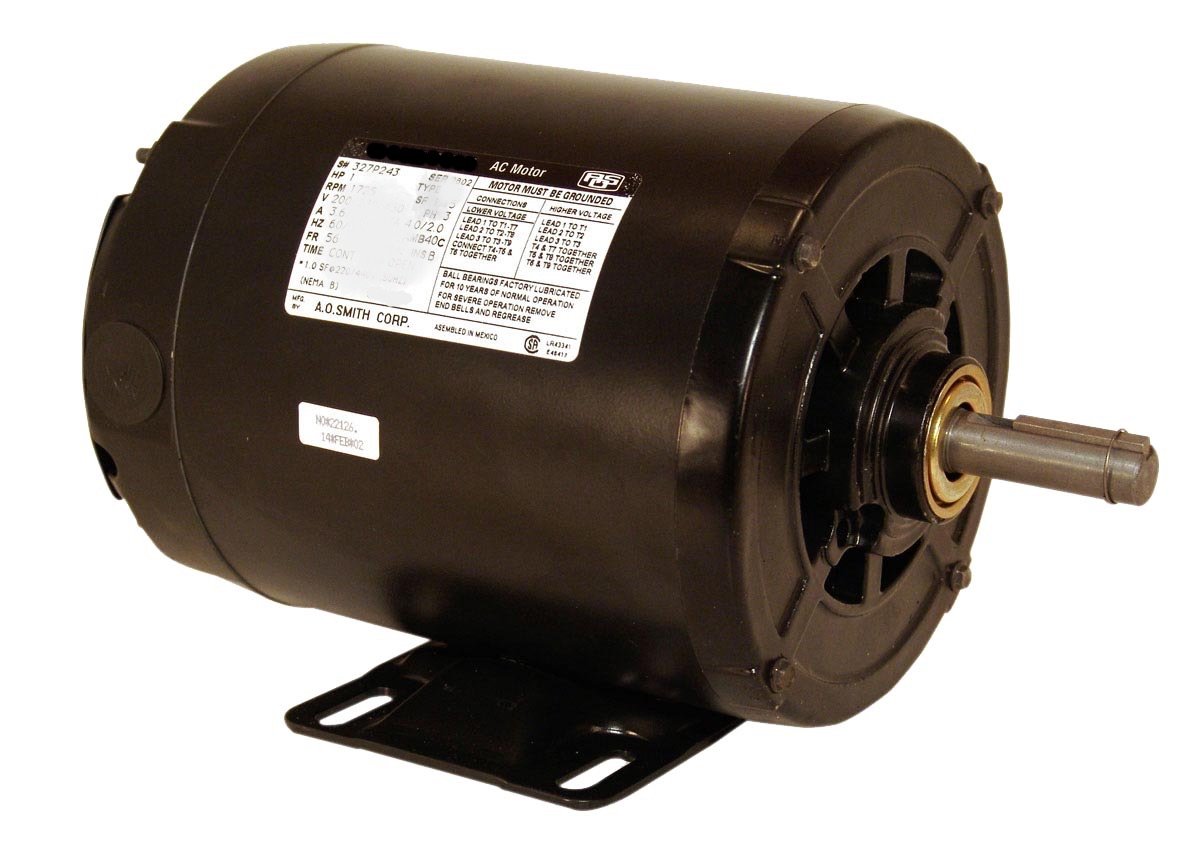

Century OB3075ES Three Phase ODP Motor 3/4 HP 56 Frame Ball Bearings Continuous Duty

Product Description

The Century OB3075ES motor is a three phase ODP motor designed for various industrial applications. This motor, manufactured by Century, is known for its energy efficiency and robust performance.

• 3/4 HP with 1725 RPM
• 200-230/460 volts
• Continuous duty drip-proof design

Product Highlights

This motor is suitable for pumps, fans, compressors, and conveyors. It features a 56 frame with ball bearings and class B insulation, ensuring reliable operation. The motor operates at 60/50Hz with reversible rotation and a 40C ambient rating.

Product Information

Standard Information

• Manufacturer: Century
• Brand: Century

Technical Specifications

• Horsepower: 3/4 HP
• RPM: 1725 RPM
• Voltage: 200-230/460 volts
• Full Load Amps: 3.4/1.7 amps
• Service Factor: 1.25
• Frame: 56
• Insulation Class: B
• Frequency: 60/50Hz
• Rotation: Reversible
• Ambient Temperature: 40C
• Duty: Continuous
• Design: Drip-proof
• Bearing Type: Ball bearings
• Enclosure Type: Open Drip-Proof (ODP)
• Cage Type: Squirrel cage
