Product Description

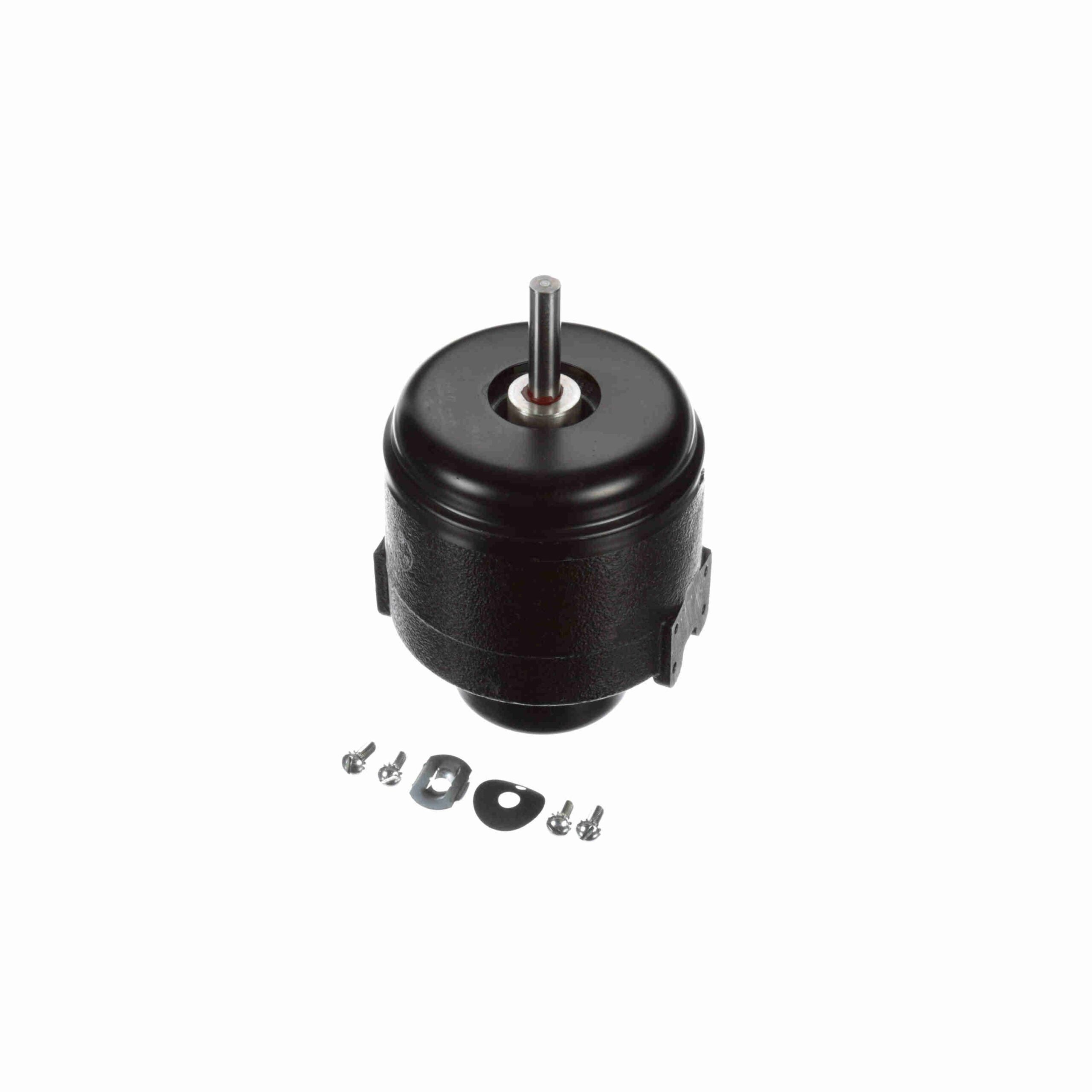

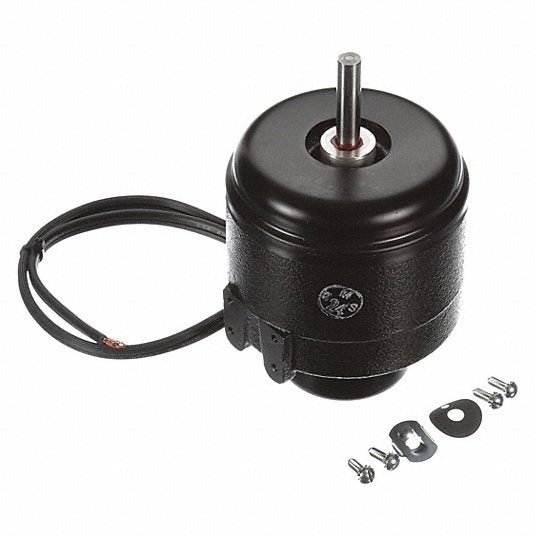

The Century Motors 260 is a unit bearing fan motor with a power rating of 50 watts. It operates at 230V AC and 50/60 Hertz, with a motor FLA of 0.85 Amp and a speed rating of 1500 RPM. The motor features a cast iron frame and is designed for horizontal and shaft up mounting. It is a shaded pole, high-efficiency motor with clockwise lead end rotation.
- Power Rating: 50 Watt
- Voltage Rating: 230 Volt AC
- Speed Rating: 1500 RPM
Product Highlights
This Century Motors unit bearing fan motor is ideal for refrigeration applications, fans, blowers, furnaces, and air conditioners.
Product Information
Standard Information
-
Brand: CENTURY MOTORS
-
Manufacturer Part Number: 260
-
Country of Origin: USA
Technical Specifications
-
Manufacturer Part Number: 260
-
Power Rating: 50 Watt
-
Voltage Rating: 230 Volt AC
-
Frequency Rating: 50/60 Hertz
-
Motor FLA: 0.85 Amp
-
Number Of Speeds: 1
-
Speed Rating: 1500 RPM
-
Frame Material: Cast Iron
-
Mounting: Horizontal and Shaft Up
-
Rotation: Clockwise Lead End
-
Overall Diameter: 3-7/8 Inch
-
Shaft Diameter: 3/8 Inch
-
Brand: CENTURY MOTORS
-
Electrical Type: Shaded Pole
-
Enclosure: Totally Enclosed Air Over
-
Phase: 1
-
Output Watts: 50 W
-
Voltage: 230 V
-
Service Factor: 1
-
Frame: UNIT BEARING
-
Thermal Protection: Thermally Protected
-
Ambient Temperature: 40 °C
-
Frequency: 60 Hz
-
Current: 0.85 A
-
Duty: Continuous
-
Insulation Class: A
-
UL: Recognized
-
CSA: Y
-
CE: N
-
Starting Method: Across The Line
-
Poles: 4
-
Mounting Type: 2 BOSS/OSE 3 HOLES
-
Drive End Bearing: Unit
-
Opp Drive End Bearing: Unit
-
Shaft Type: Flat
-
Frame Length: 4.79 in
-
Shaft Extension: 1.6 in
-
Packaged Length: 9.39 IN
-
Packaged Width: 6.87 IN
-
Packaged Height: 6.87 IN
-
RPM: 1500
-
Amperage: 0.85
-
Full Load Amps: .85
-
Watts: 50
-
Speeds: 1
-
Bearings: Unit Bearing
