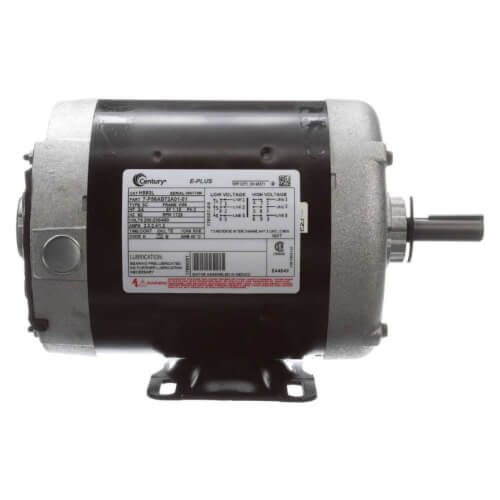

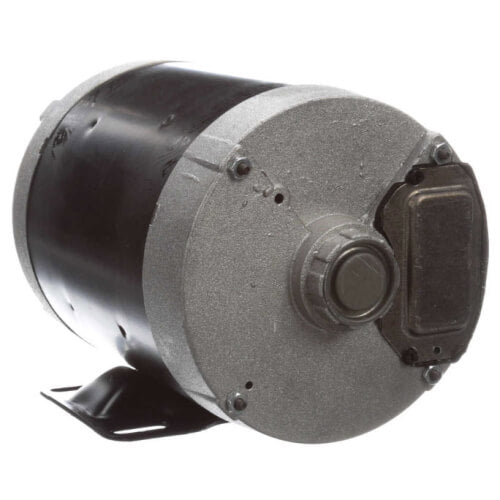

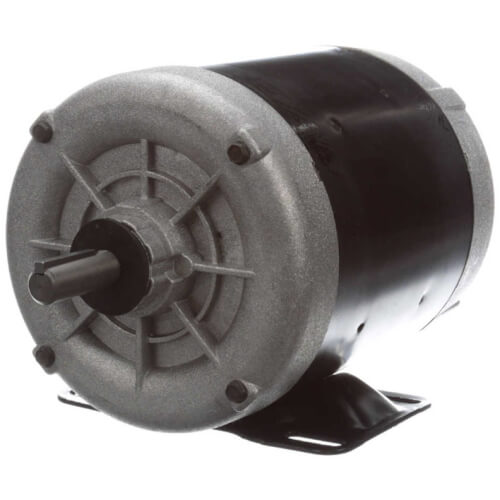

Regal Rexnord Century Motors H580L 200-230/460V 3PH 3/4HP 1725RPM

Product Description

The Regal Rexnord Century Motors H580L is a three-phase, 3/4 horsepower motor, operating at 1725 revolutions per minute and capable of alternating between 200-230/460 volts. This robust motor is designed for general-purpose industrial applications.

• Engineered for durability with a cast-iron frame and TEFC construction
• Equipped with ball bearings and supports rotation in RCCW direction
• Energy-efficient performance supports a sustainable operation

Product Highlights

This motor is characterized by its versatility, robust construction, and precise speed control, making it Suited for a wide range of industrial applications including pumps, compressors, and conveyors.

Product Information

Standard Information

• Brand: Regal Rexnord - Century Motors
• MPN: H580L

Technical Specifications

• Voltage: 200-230/460V
• Phase: Three
• Power: 3/4 HP
• RPM: 1725
• Frame Size: 56
• Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
• Insulation Class: B
• Max Ambient Temperature: 104°F
