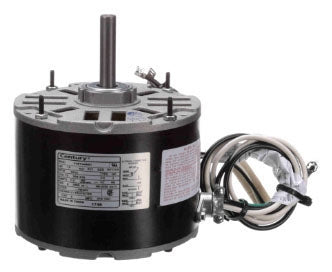

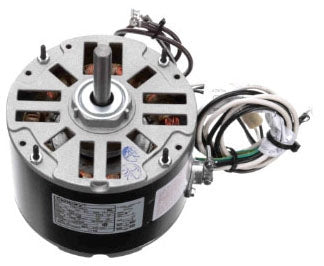

Century 174A 1/6 HP 208-230 Volts 1625 RPM 48Y

Product Description

The Century Motors 174A is an HVAC/R motor with a power rating of 1/6 horsepower. It operates at 208 to 230 volts and a frequency of sixty Hertz. Designed for one-phase operation, it runs at a speed of 1625 RPM. The motor features a four-pole design and is suitable for various applications, including refrigeration. This model includes a flat shaft and is reversible, adding to its versatility in use. The unit is built with a NEMA 48Y rolled steel frame and is equipped with a sleeve bearing for enhanced durability.

• Power Rating: 1/6 HP
• Voltage Range: 208 to 230 Volts
• Speed Rating: 1625 RPM

Product Highlights

Built for reliability in demanding situations and ideal for HVAC professionals, this motor can replace units in various cooling systems.

Product Information

Standard Information

• Frame Size: 48Y
• Motor Type: Permanent Split Capacitor

Technical Specifications

• Insulation Class: B
• Service Factor: 1
• Ambient Temperature Rating: 60 degrees C
• Weight: 10 pounds
• Enclosure Type: Semi Enclosed, Air-Over
• Bearing Type: Sleeve (Drive End/Opposite Drive End)
• Starting Method: Induction Run
• Includes: 36-inch lead, 5 microfarad capacitor
