Regal Rexnord - Century Motors 160A 1/3 HP 208-230 VAC 1-Phase 1625 RPM

Product Description

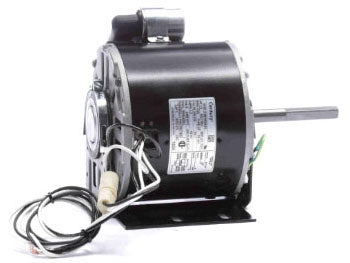

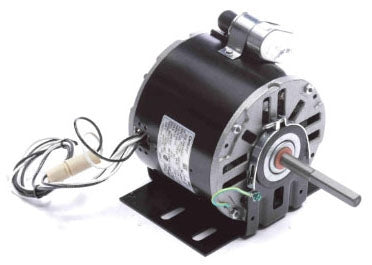

The Regal Rexnord - Century Motors 160A is designed for HVAC and refrigeration applications. This motor operates at a power rating of one-third horsepower and is compatible with 208 to 230 volts, single-phase power supply. It provides a speed of 1625 revolutions per minute while supporting a resilient base mount for easy installation.

• Voltage: 208 to 230 VAC
• Speed: 1625 RPM
• Power: 1/3 HP

Product Highlights

The 160A motor is suitable for a variety of industrial uses, offering efficiency and reliability. It features reversible operation for flexible installation and application. The permanent split capacitor design enhances performance in HVAC systems.

Product Information

Standard Information

• Brand: Regal Rexnord - Century Motors
• MPN: 160A

Technical Specifications

• Power Rating: 1/3 HP
• Voltage Rating: 208 to 230 Volt AC, 1-Phase
• Speed Rating: 1625 RPM
• Enclosure Type: Semi Enclosed, Air-Over
• Frame Size: F48Y
• Insulation Class: B
• Weight: 15 lbs
• Bearing Type: Sleeve
• NEMA Frame Size: F48Y
• Number of Poles: 4
• Ambient Temperature Rating: 60°C
• Starting Method: Induction Run
• Lead Length: 36 inches
