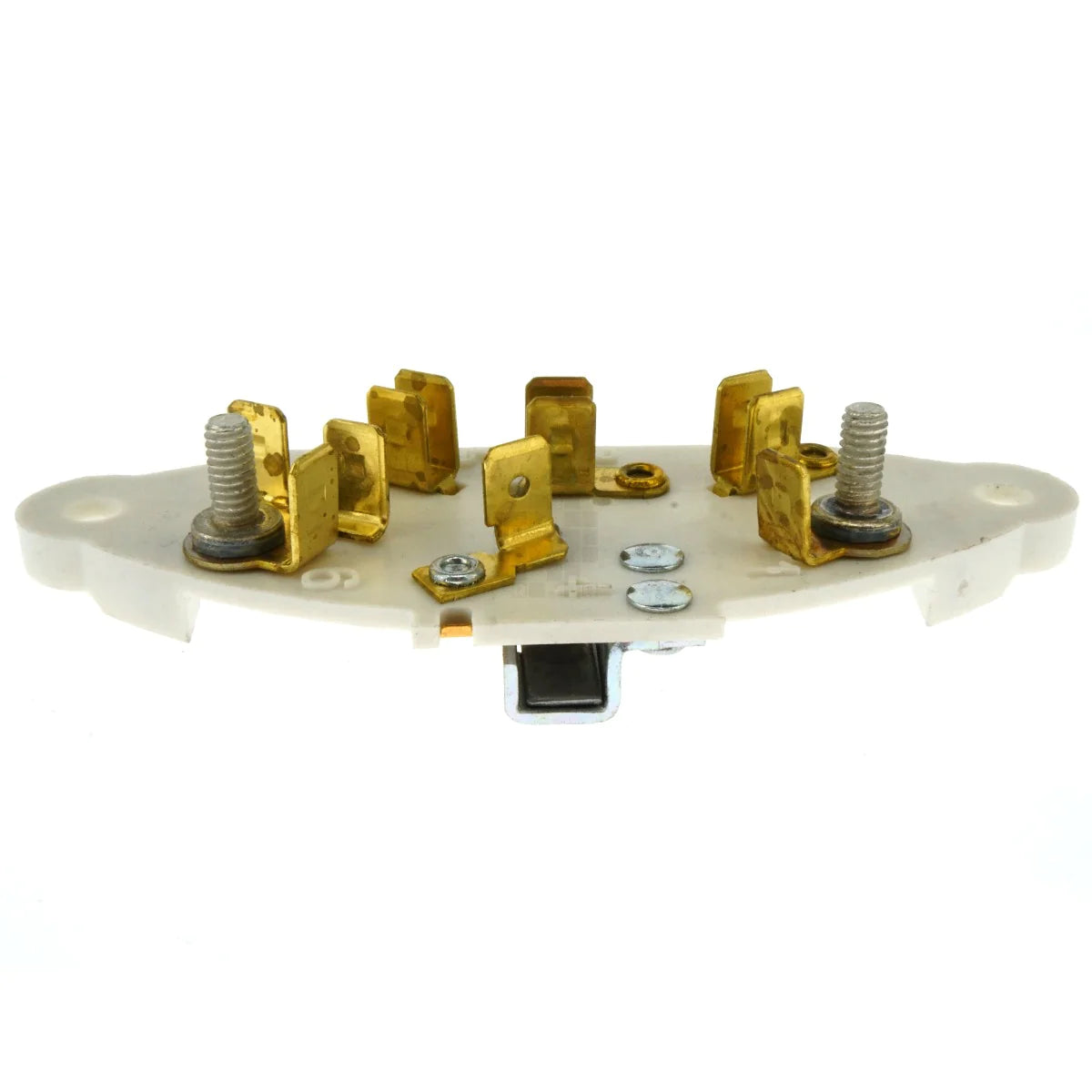

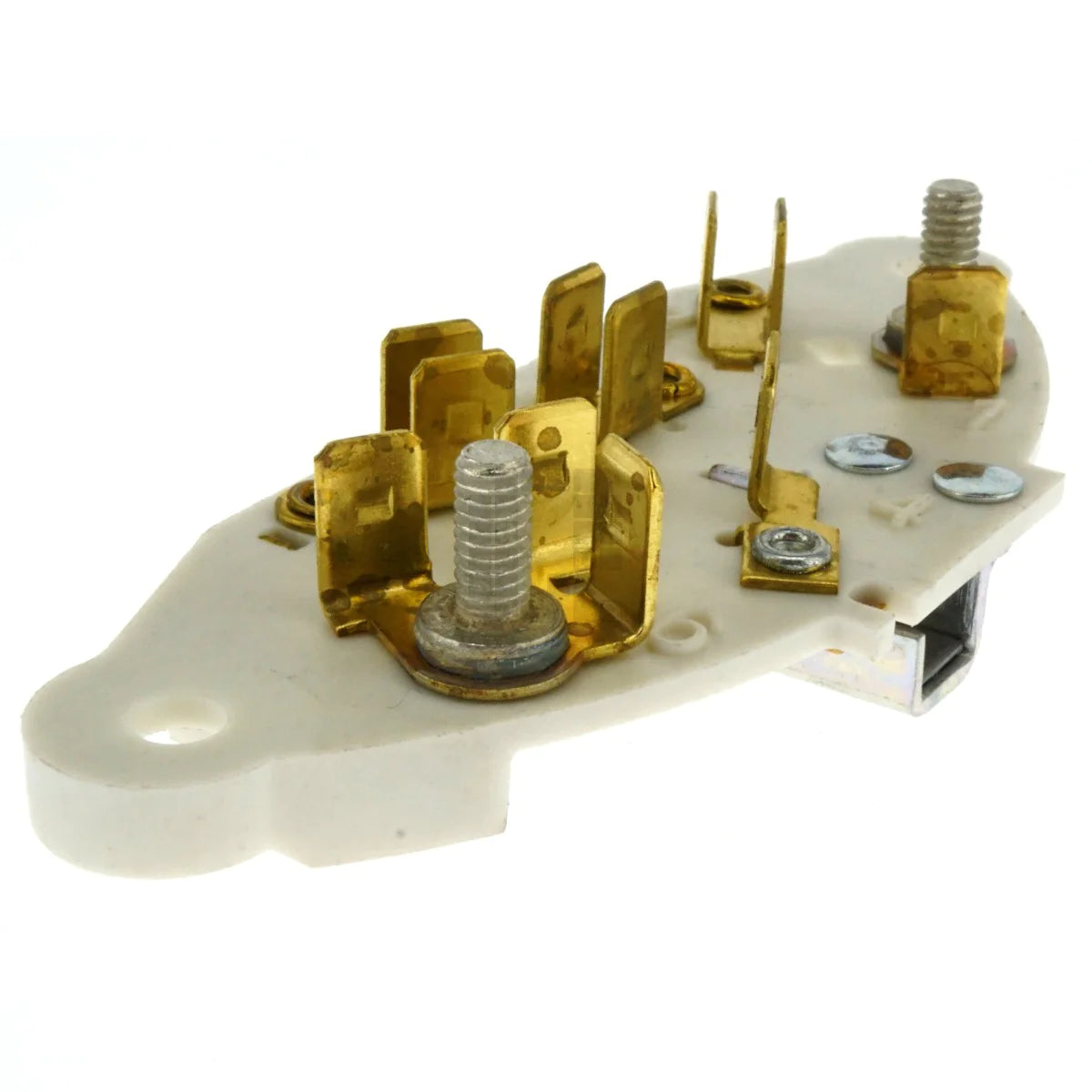

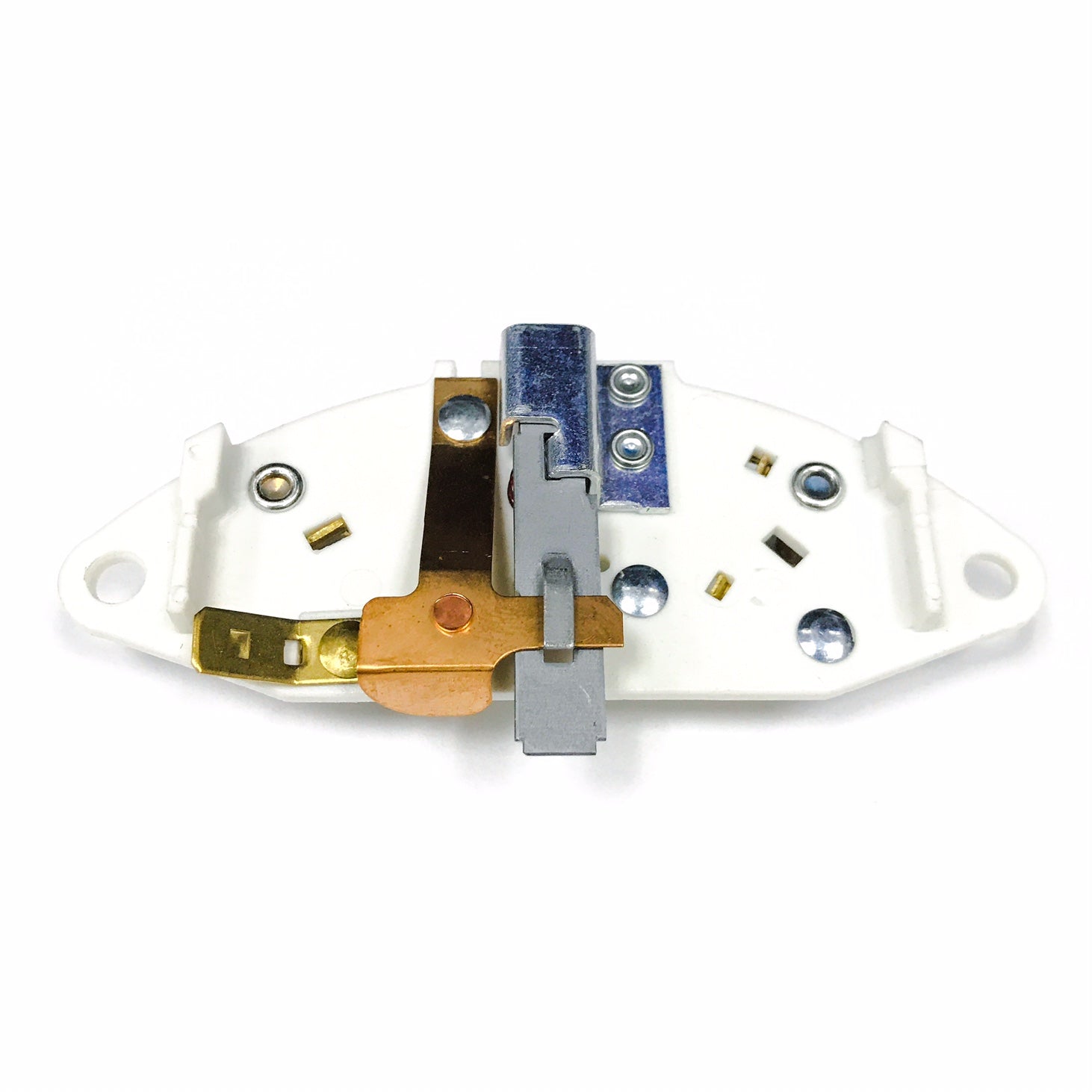

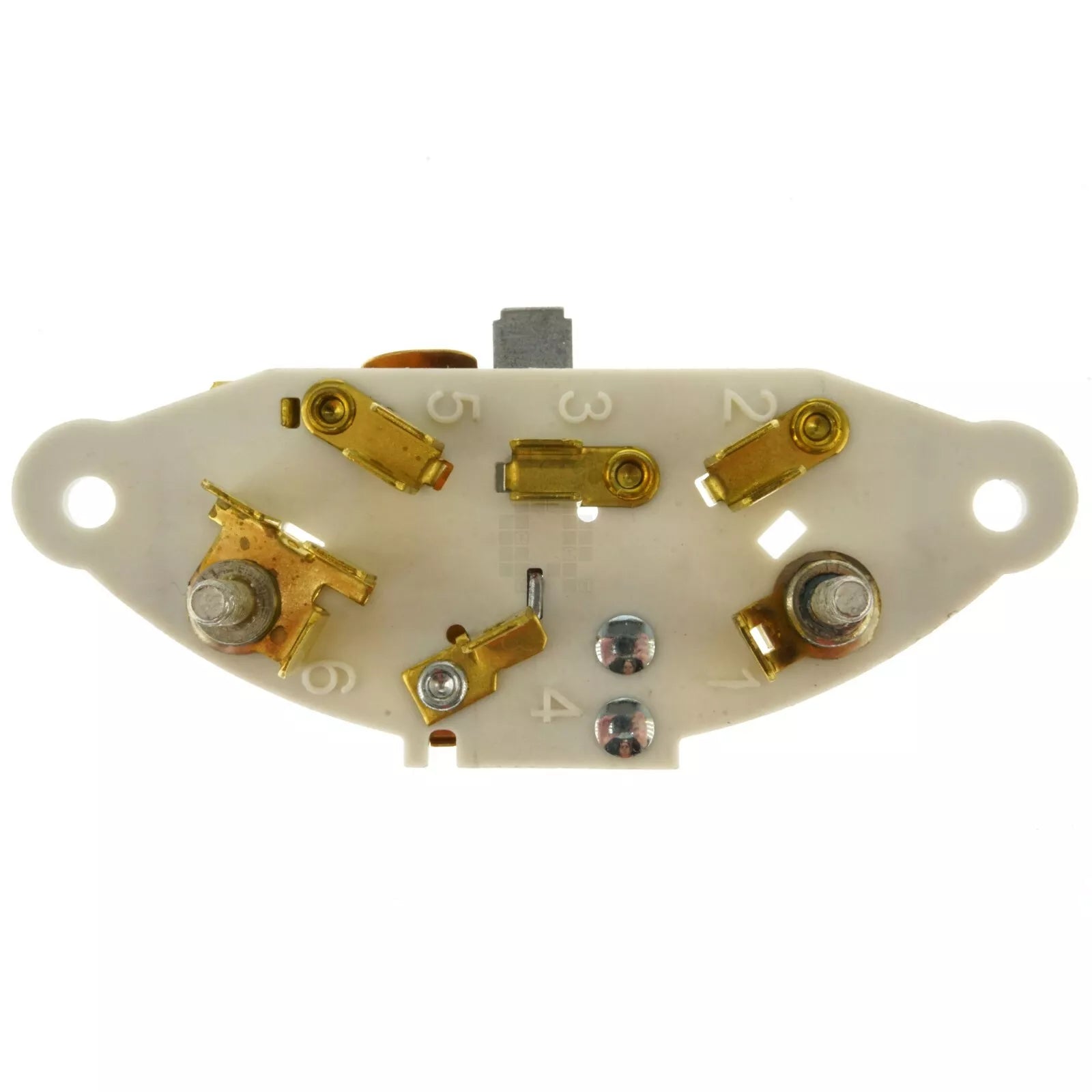

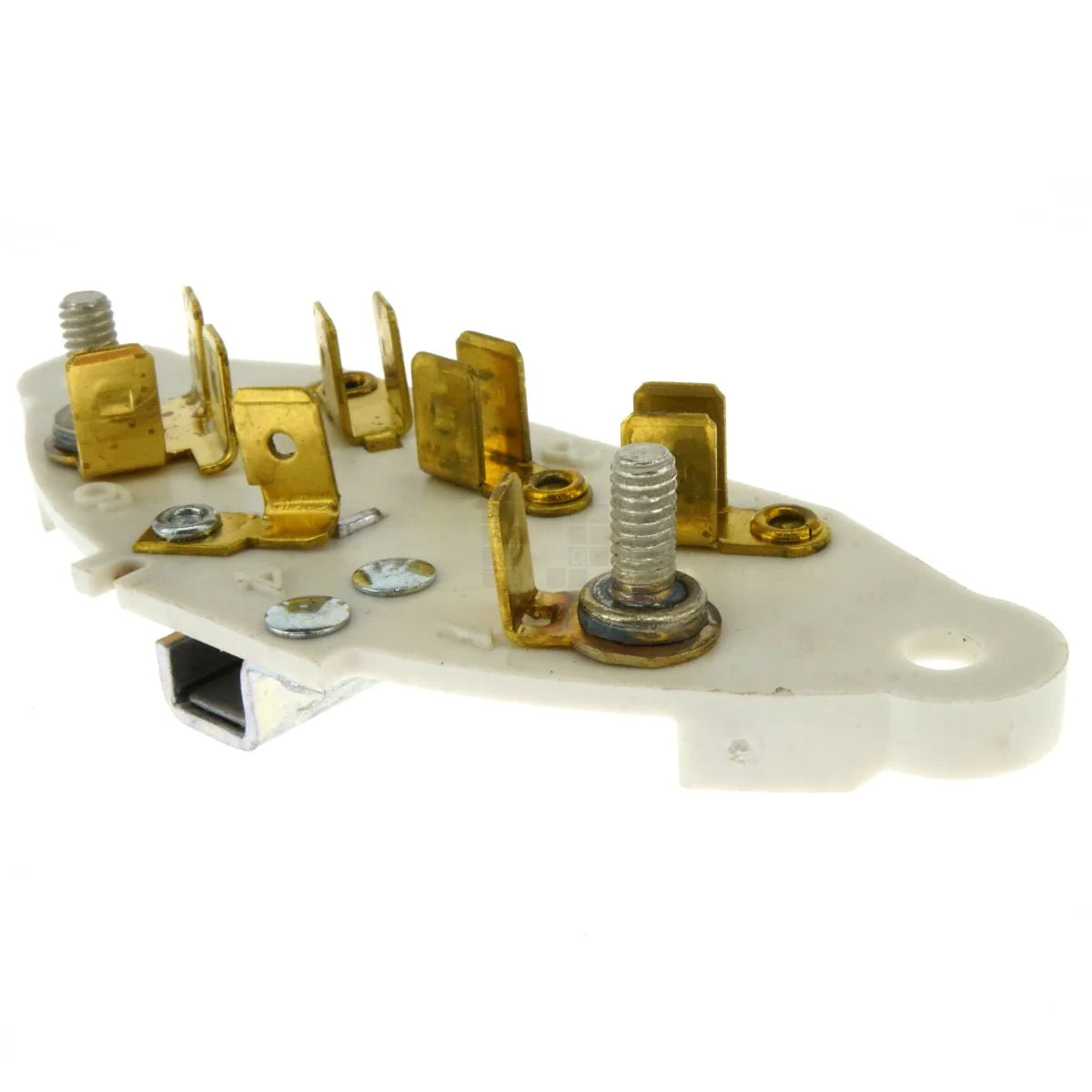

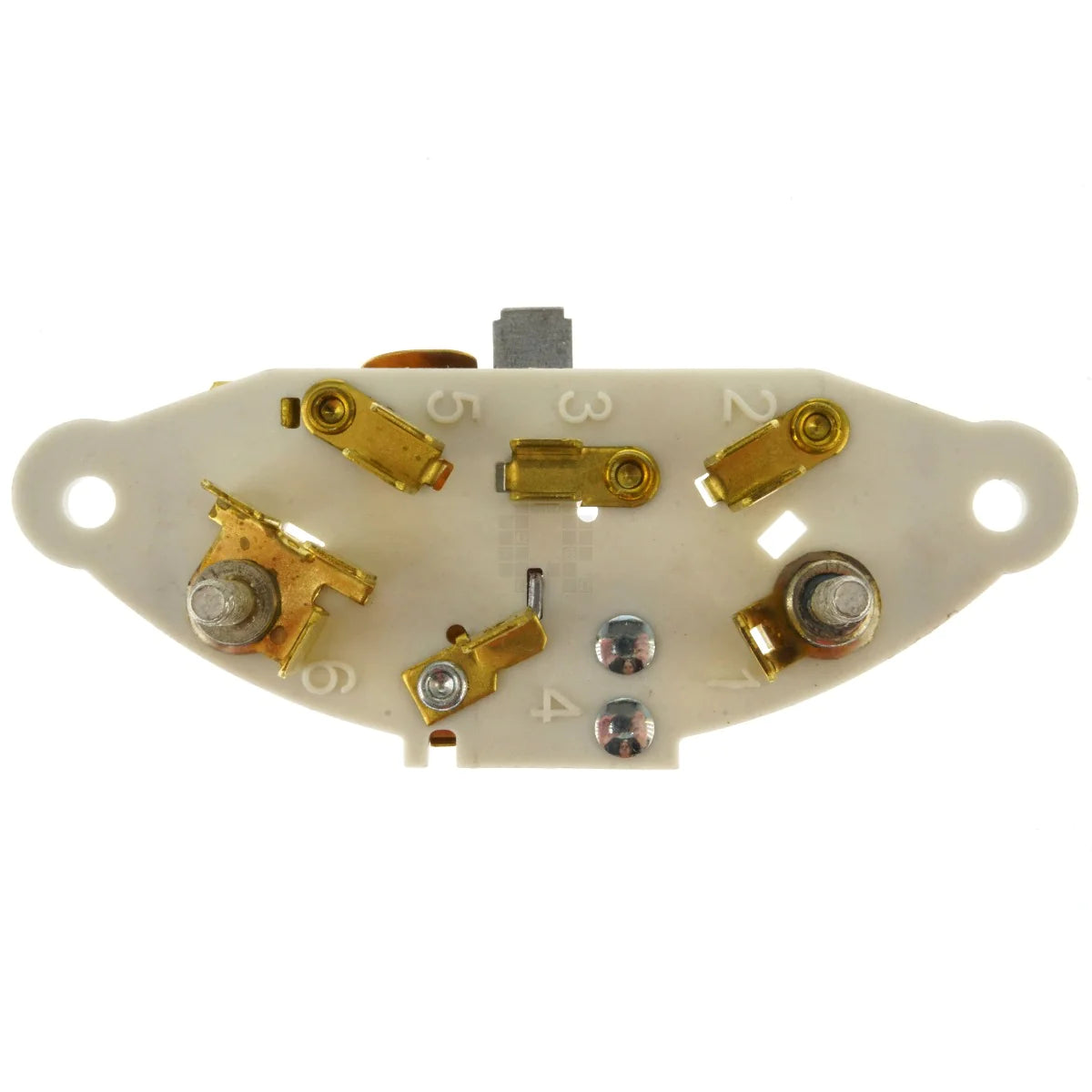

CENTURY MOTORS 13980750 Start Stationary Switch

Product Description

The CENTURY MOTORS 13980750 is a stationary start switch suitable for use with single-speed motors. It is designed with a single arm, making it easy to operate. This switch is compatible with a crescent board and includes six terminals with one-quarter inch male spade connections and two threaded posts with a diameter of zero point sixteen inches.

• Stationary start switch
• Designed for single-speed motors
• Compatible with crescent boards

Product Highlights

This start switch is essential for controlling single-speed motors in various applications.

Product Information

Standard Information

• Brand: Century
• MPN: 13980750

Technical Specifications

• Type: Start Switch
• Model: SCN-471
• Connections: Six terminals with one-quarter inch male spade terminals
• Threaded Posts: Two posts with diameter zero point sixteen inches
• Markings: 10004789-001
• Contact Diameter: Zero point two five zero inches
• Mounting Holes: Zero point one nine zero inches diameter with three point three one two inches between centers
• Weight: Two pounds
