Description

Product Description

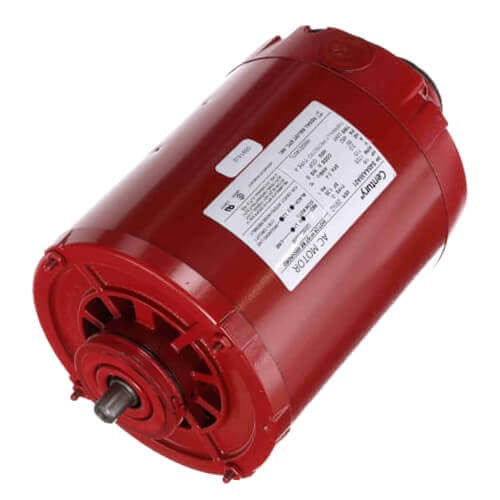

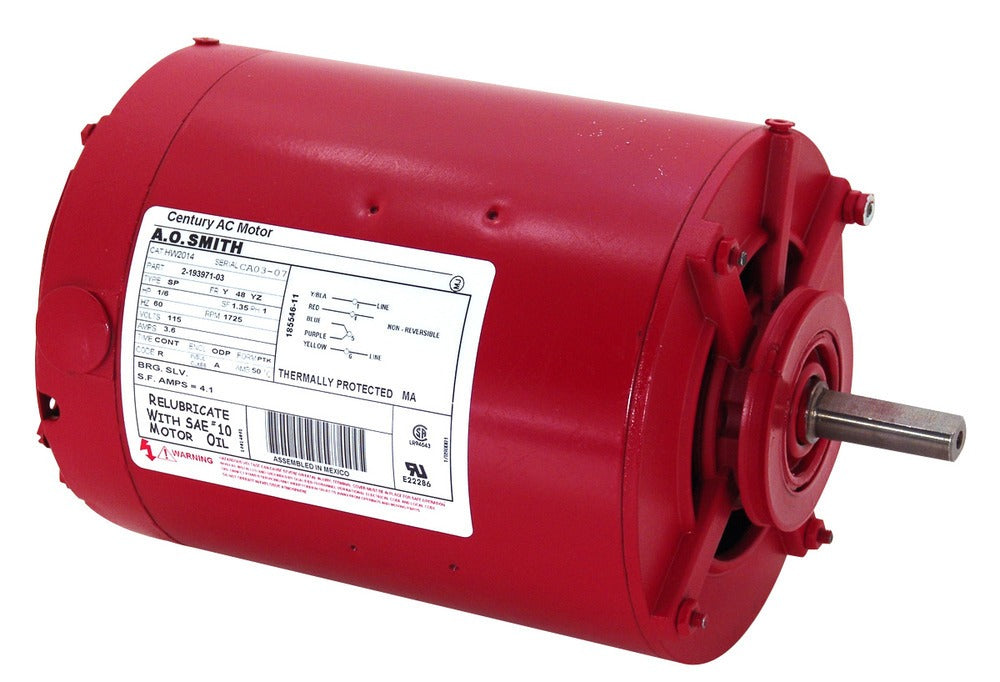

Century HW2014L is an electric hot water circulator pump motor rated 1/6 HP (0.17 kW) for split-phase 115 V single-phase operation. The single-speed motor is listed at 1725 RPM in detailed specs (1800 RPM in some summaries), uses sleeve bearings and an open enclosure with cushion ring mounting, and has a 1/2 inch flat shaft. It features automatic overload protection and a 1.35 service factor for continuous-duty circulator applications.

  • 1/6 HP split-phase motor, 115 V, single speed, 1725 RPM (1800 RPM listed), 4 poles
  • Sleeve bearings, open (ODP) enclosure, cushion ring mounting, rolled steel frame
  • Flat shaft 1/2 in. (1/2 x 5/8 flat), automatic overload/thermal protector, service factor 1.35

Product Highlights

Circulator pump replacement motor for hot water systems with 1/6 HP, 115 V split-phase operation and automatic overload protection.

Product Information

Standard Information

  • Brand: CENTURY
  • Manufacturer Part Number: HW2014L
  • Country of Origin: Mexico
Technical Specifications
Brand
Century
MPN
HW2014L
Product Type
Electric hot water circulator pump motor
Motor Type
Split phase
Horsepower
1/6 HP
Power (kW)
0.17 kW
Input Voltage
115 V
Phase
1
Frequency
60 Hz
RPM
1725 (detailed) / 1800 (summary)
Poles
4
Speeds
1
Full Load Amps
3.60
Enclosure
Open
Enclosure Type (alternate)
Open drip proof (ODP)
Frame
48YZ
Frame (alternate)
48Z
Bearings
Sleeve
Mounting
Cushion rings
Rotation
CWLE (clockwise looking at end) / clockwise
Service Factor
1.35
Overload Protection
Automatic (automatic reset thermal protector)
Shaft Diameter
1/2 in.
Shaft Length
5/8 in.
Shaft Dimension
1/2 x 5/8 flat
Insulation Class
B
Duty
Continuous
Material / Frame Construction
Rolled steel
Weight
12.00 lb
Dimensions (L x W x H)
11 x 8 x 9 in.
Country of Origin
Mexico
Certifications
UL recognized; CSA listed; CE not listed
Poles / Number of Poles (alternate)
4
Starting Method
Across the line
