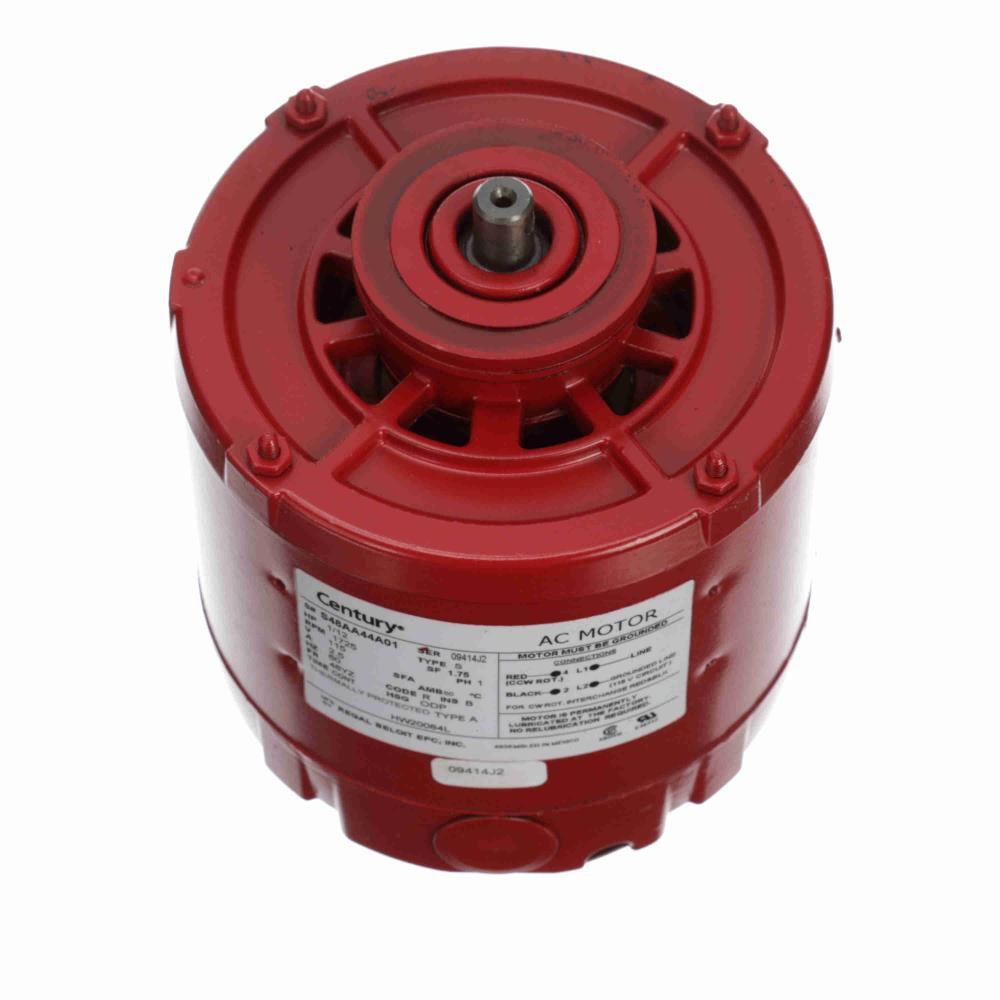

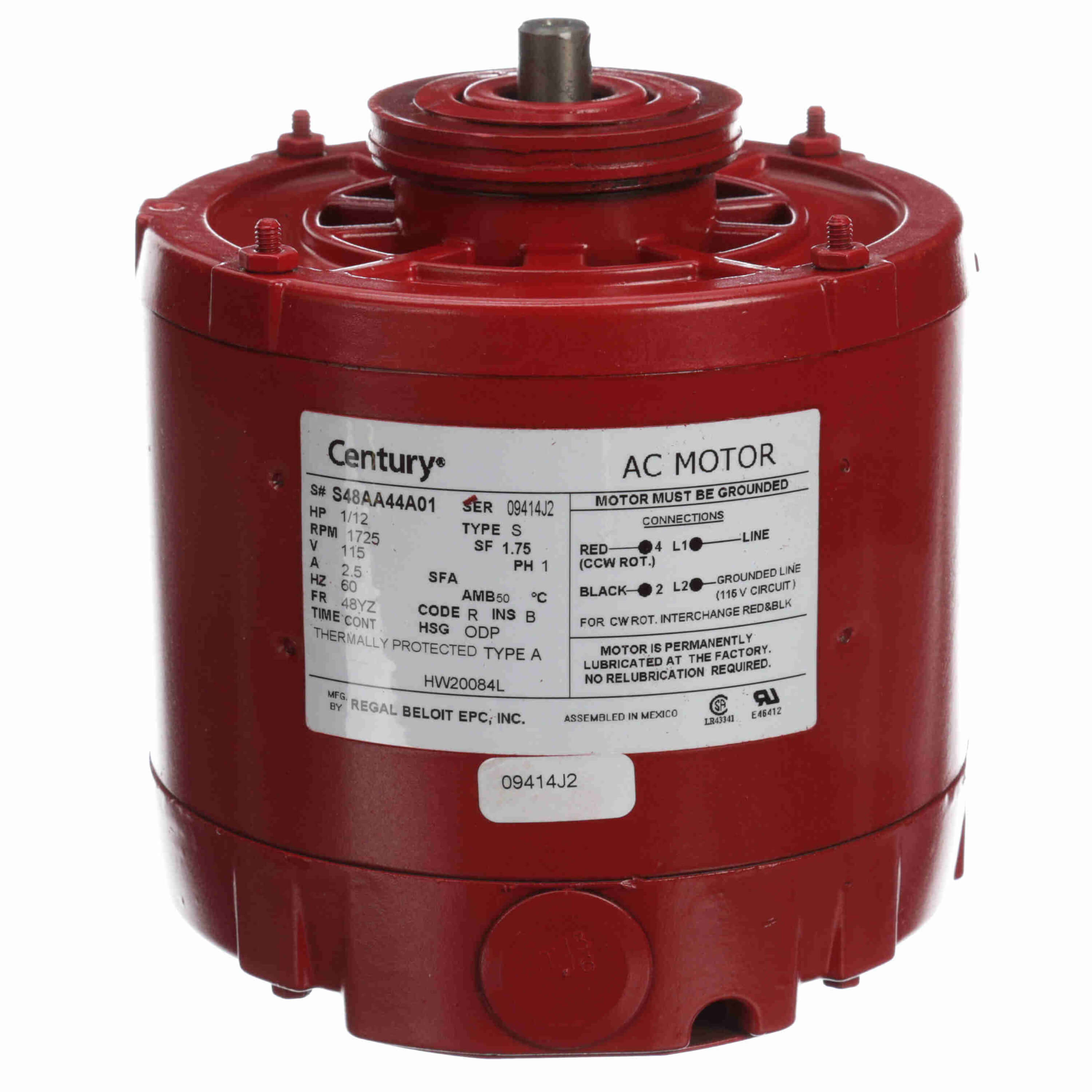

Century HW20084L Circulator Pump Motor 1/12 HP 115V Replacement MPN

Product Description

The Century HW20084L Circulator Pump Motor is designed for reliable performance in various applications. This motor operates at 1/12 horsepower, is rated at 115 volts, and has a speed of 1725 revolutions per minute. Its construction features rolled steel, ensuring durability. The motor includes an automatic reset thermal protector for added safety. This motor is suitable for use in HVAC systems, especially for circulating hot water.

• Power: 1/12 HP
• Voltage: 115V
• Speed: 1725 RPM

Product Highlights

This motor is effective for providing consistent water circulation in heating systems.

Product Information

Standard Information

• Brand: Century
• MPN: HW20084L

Technical Specifications

• Type: Circulator Pump Motor
• Electrical type: Split Phase
• Frame size: 48YZ
• Amperage: 2.5
• Bearings type: Sleeve
• Mounting type: Resilient Rings
• Weight: 11 lbs
• Dimensions: 11 inches (length) x 7.5 inches (width) x 7 inches (height)
