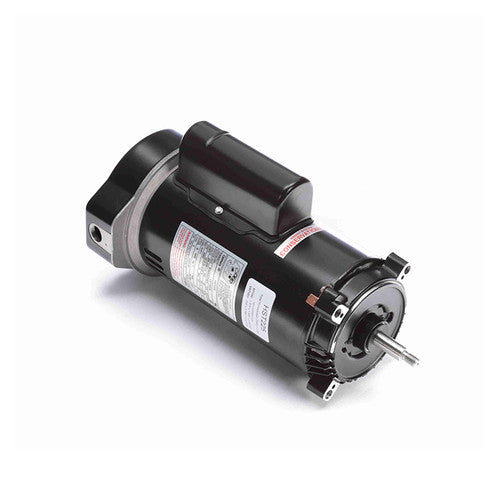

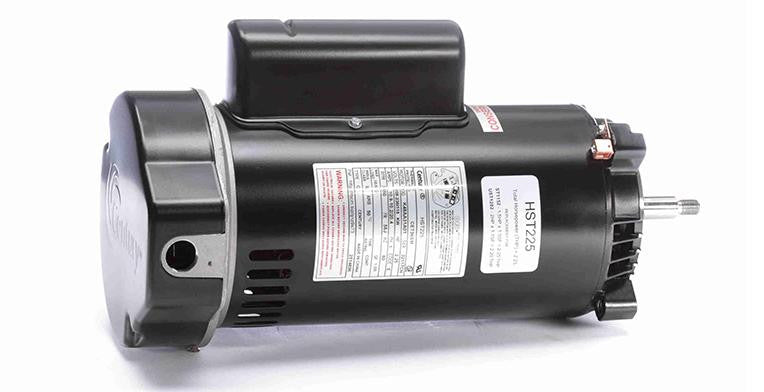

Century HST225 Centurion Pro Pool Pump Motor 2.25 HP (56J Frame)

Product Description

Century HST225 is a single-phase Centurion Pro pool and spa pump motor rated 2.25 HP (1.7 kW) with 3450 rpm nameplate speed and dual-voltage capability (208-230/115 V) for 60 Hz operation. The motor uses a capacitor start/capacitor run design, 56J frame, open drip-proof enclosure, automatic thermal protection, premium sealed bearings, 303 stainless steel shaft and is rated for continuous duty up to 50°C ambient.

• Electrical: single-phase capacitor start/capacitor run, 208-230/115 V dual-voltage, 60 Hz, full load amps 20.4 A (115 V); 10.9-10.2 A (208-230 V).
• Mechanical: 2.25 HP (1.7 kW), 3450 rpm (2-pole), 56J frame, 0.625 in shaft diameter, 2.562 in shaft extension, 303 stainless steel threaded shaft.
• Protection and serviceability: open drip-proof enclosure, automatic thermal protection, premium sealed 203 bearings both ends, triple-seal pump-end protection, accessible terminal board and voltage change device.

Product Highlights

2.25 HP dual-voltage pool pump motor, 3450 rpm, 56J frame, ODP enclosure, automatic thermal protection, premium sealed bearings, 303 stainless steel shaft, rated to 50°C ambient.

Product Information

Standard Information

• Brand: CENTURY
• Manufacturer Part Number: HST225
• Country of Origin: Thailand

Technical Specifications

• Brand: Century
• MPN: HST225
• Model Name: Centurion Pro
• Horsepower: 2.25 HP
• Power (kW): 1.7 kW
• Voltage: 208-230/115 V
• Frequency: 60 Hz
• Speed: 3450 rpm
• Poles: 2
• Phase: Single-phase
• Electrical Type: Capacitor start / capacitor run
• Full Load Amps: 20.4 A (115 V); 10.9-10.2 A (208-230 V)
• Service Factor: 1.0
• Number of Speeds: 1
• Frame: 56J
• Enclosure: Open Drip Proof (ODP)
• Insulation Class: F
• Thermal Protection: Automatic
• Duty: Continuous
• Ambient Temperature Rating: 50 °C
• Mounting: Round
• Mounting Type: Horizontal
• Rotation: Counterclockwise Pump End (CCWPE)
• Shaft Diameter: 0.625 in
• Shaft Extension: 2.562 in
• Shaft Type: Threaded (7/16 threads as listed)
• Shaft Material: 303 stainless steel
• Drive End Bearing: Sealed ball (203)
• Opposite Drive End Bearing: Sealed ball (203)
• Frame Material: Rolled steel
• Overall Length: 16.24 in
• Frame Length: 9.50 in
• UPC: 786674070319
• Certifications: UL recognized; CSA certified
• Country of Origin: Thailand
• Weight (packaged): 32.00 LB
• Packaged Dimensions: 19.00 in (L) x 10.00 in (W) x 9.00 in (H)
