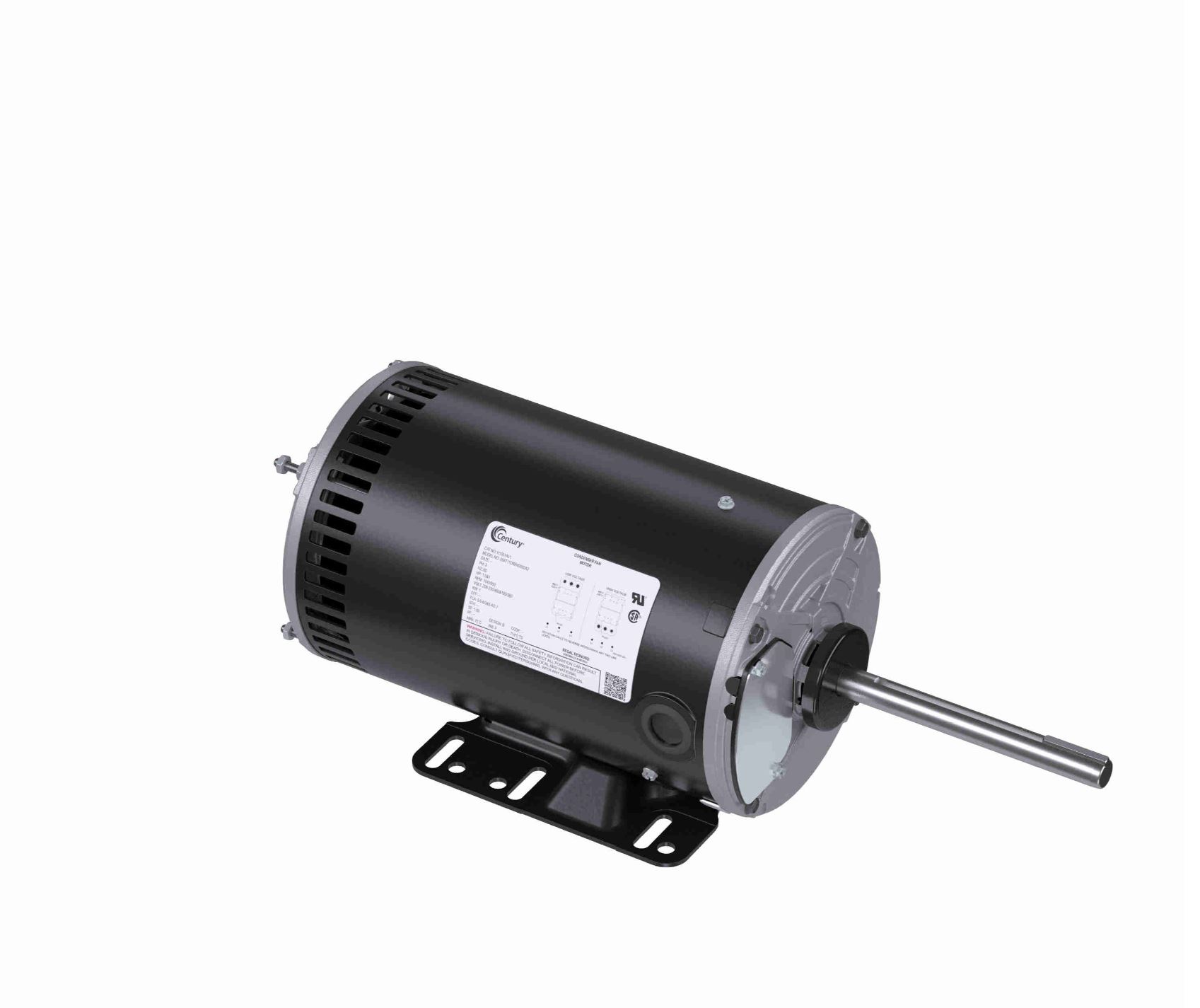

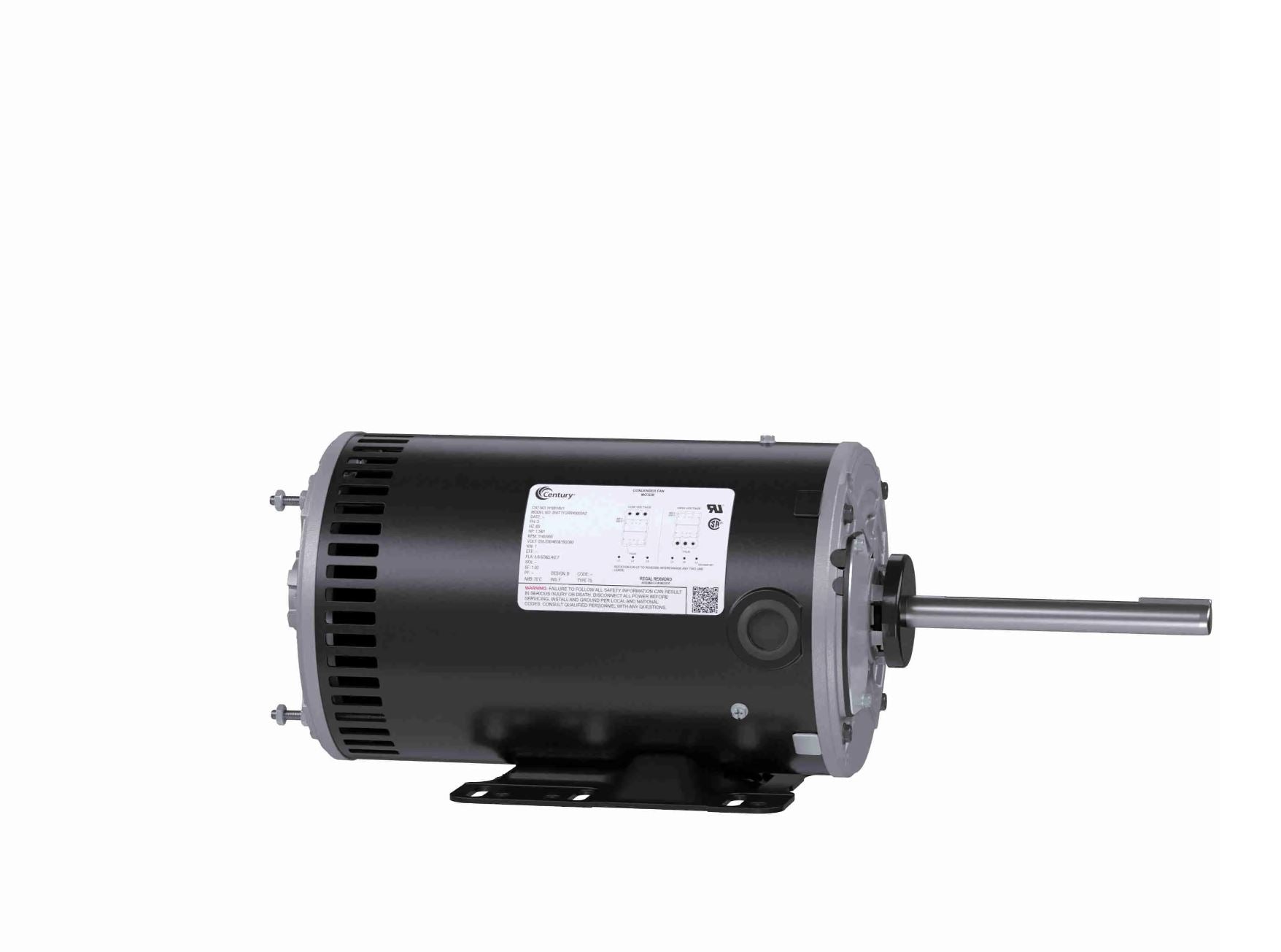

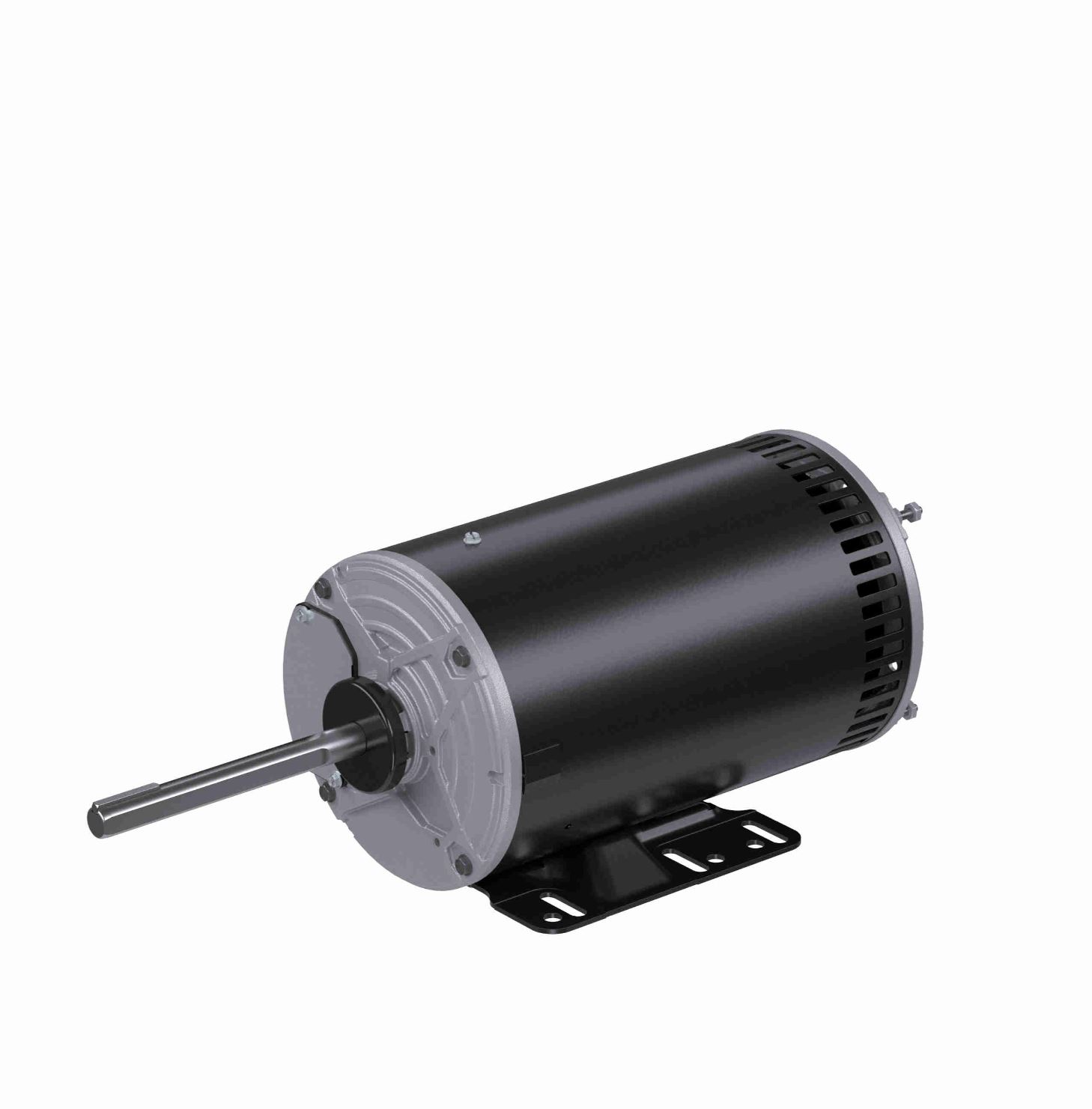

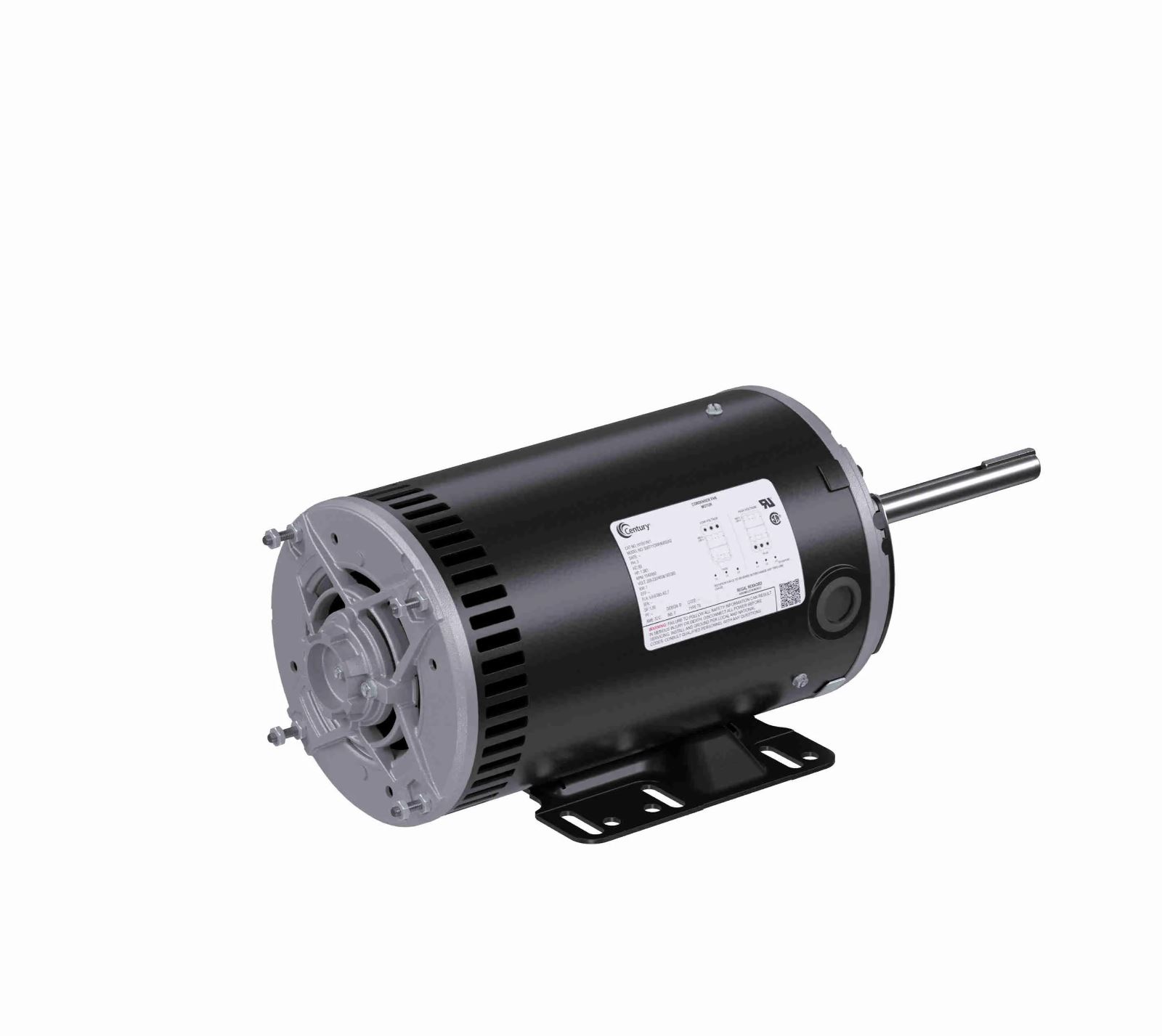

CENTURY H1051AV1 208-230/460v 3 Ph 1-1/2 Hp 1140 Rpm

Product Description

The CENTURY H1051AV1 is a 208-230/460v three-phase motor designed for efficient operation in HVAC systems. This 1.5 horsepower motor operates at 1140 RPM and is part of Century's JuggerNaut Condenser Fan Motors series. With a frame size of 56HZ and a shaft diameter of five-eighths inches, this motor is engineered to deliver reliable performance in outdoor condenser applications.

• Rated for high ambient temperatures up to seventy degrees Celsius.
• Includes an automatic reset thermal protector to prevent motor overload.
• Features double sealed ball bearings for moisture resistance and longevity.

Product Highlights

The CENTURY H1051AV1 is suitable for both commercial and residential HVAC systems, ensuring consistent airflow for air conditioning units and heat pumps.

Product Information

Standard Information

• Brand: CENTURY
• MPN: H1051AV1

Technical Specifications

• Phase: 3
• Voltage: 208-230/460v
• Horse Power: 1.5
• Speed: 1140 RPM
• Service Factor: 1
• Frame: 56HZ
• Enclosure: Open Air Over
• Thermal Protection: Thermally Protected
• Efficiency: 80%
• Max Ambient Temperature: 70°C
• Frequency: 60 Hz
• Current: 6/3 A
• Duty: Continuous
• Insulation Class: F
• Agency Certification: UR/CSA
• Shaft Type: Single Special Extension
• Frame Length: 9.65 inches
• Shaft Diameter: 0.625 inches
• Rated Load: 1 1/2 HP
