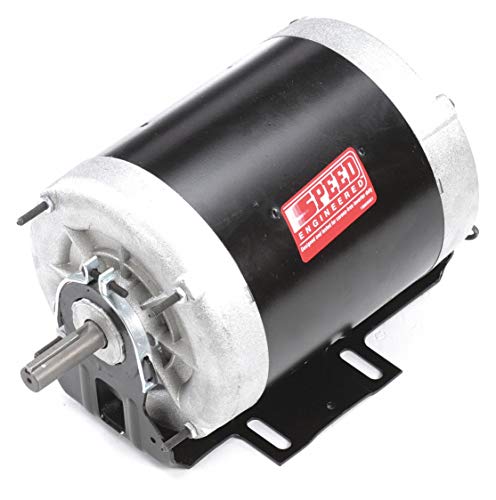

Century H1031L 3-Phase Belt Drive Motor 1 HP 56 Frame 200-230/460V AC 1725 RPM

Product Description

The Century H1031L is a 3-phase belt drive motor designed for reliable operation. It provides one horsepower at a speed of one thousand seven hundred twenty-five revolutions per minute. This motor is compatible with 200-230/460 volts and operates at sixty hertz.

• Belt drive motor with three-phase design.
• Protection class B insulation with a maximum ambient temperature of forty degrees Celsius.
• Suitable for HVAC/R applications.

Product Highlights

This motor is built from durable materials to withstand harsh industrial environments.

Product Information

Standard Information

• Manufacturer: Regal Rexnord - Century Motors
• Voltage: 200-230/460V

Technical Specifications

• Horsepower: 1 HP
• Nameplate RPM: 1725
• Frame Size: 56
• Full Load Amps: 3.3-3.4/1.7
• Mounting Type: Cradle base
• Shaft Diameter: 5/8 in
• Shaft Length: 1-15/16 in
• Insulation Class: B
• Service Factor: 1.15
• Country of Origin: Mexico
