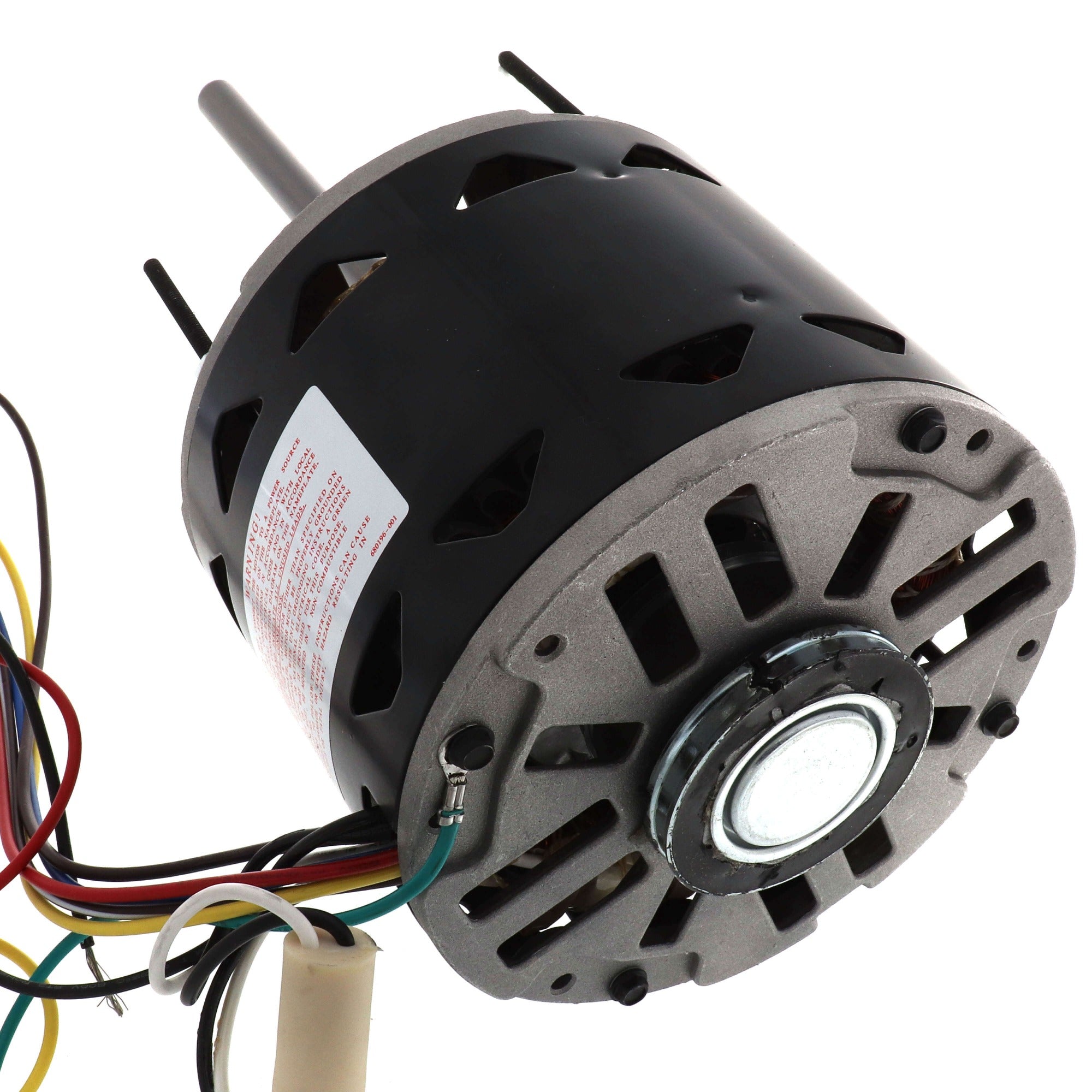

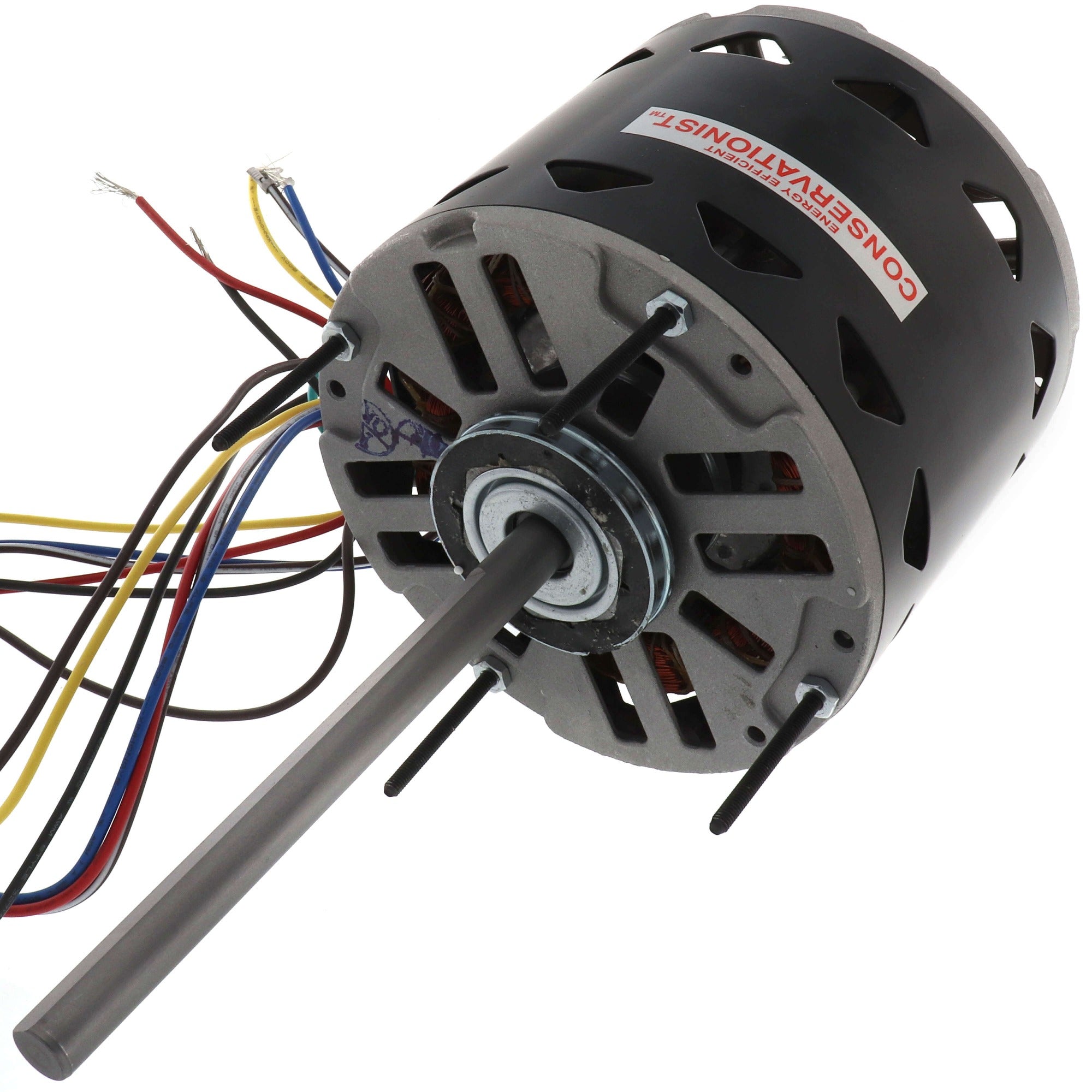

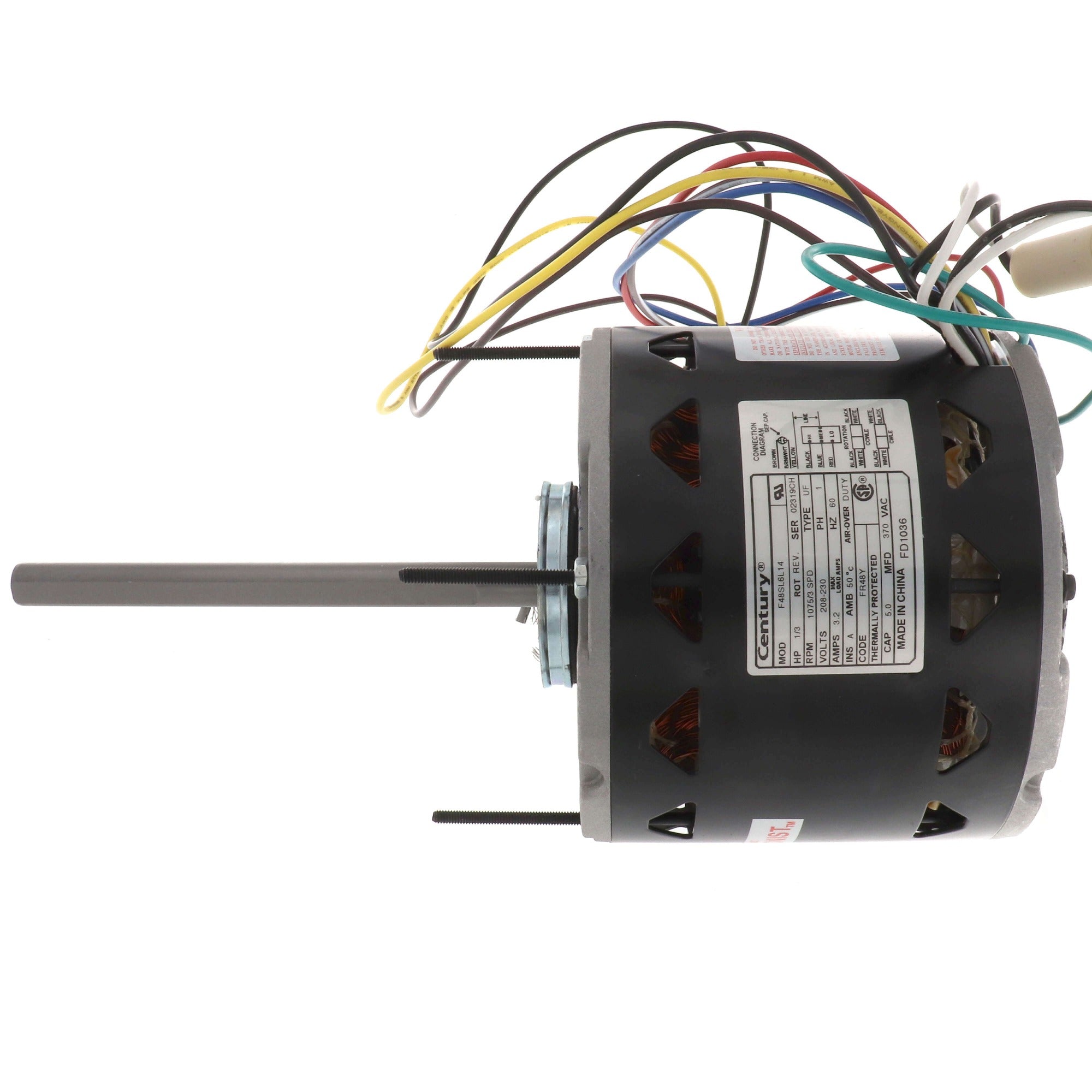

Century FD1036 5-5/8 inches Motor 1/3 HP (5-5/8 in) S1-02426086000

Product Description

The Century FD1036 is a 1/3 HP direct-drive blower motor (MPN FD1036) rated 1075 RPM for 208-230 V single-phase HVAC and fan applications. It features three speed selections, reversible rotation, automatic overload protection, and sleeve bearings in an open/drip-proof enclosure. The motor includes a mounting kit and a 0.5 in diameter shaft approximately 5-5/8 in long; it is intended for air-over (blower) duty and requires a run capacitor.

• 1/3 HP, 1075 RPM, 3-speed operation; 208-230 V, 60 Hz, single-phase
• Direct-drive PSC design with automatic thermal overload protection and reversible rotation (CW/CCW)
• 48 frame (5-5/8 in diameter), sleeve bearings, mounting kit/resilient ring; shaft 0.5 in diameter x 5-5/8 in length

Product Highlights

Direct-drive 1/3 HP blower motor for HVAC/fan applications; 3 speeds, reversible rotation, open/drip-proof enclosure; requires 5 MFD @ 370 V capacitor

Product Information

Standard Information

• Brand: CENTURY
• Manufacturer Part Number: FD1036
• Country of Origin: India
