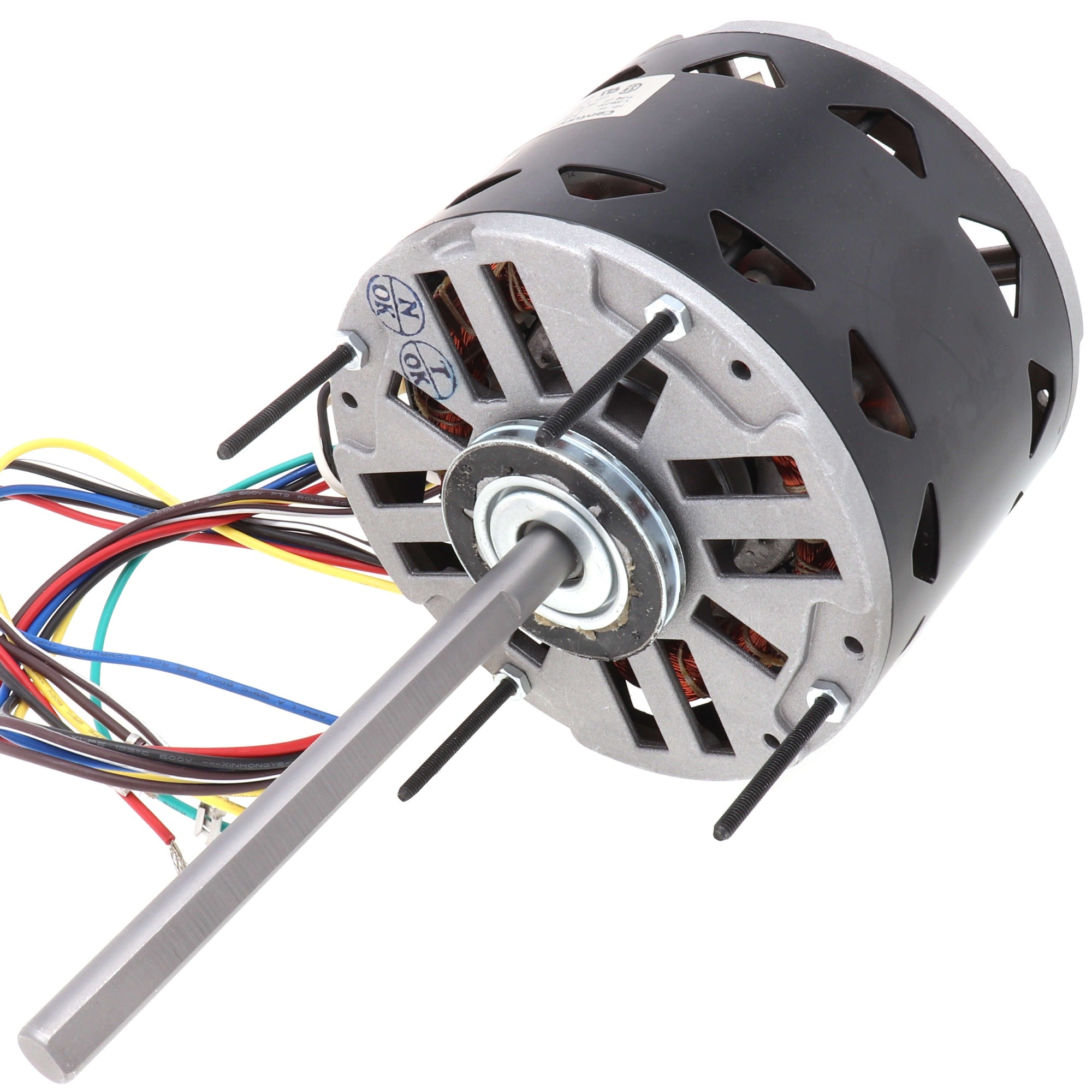

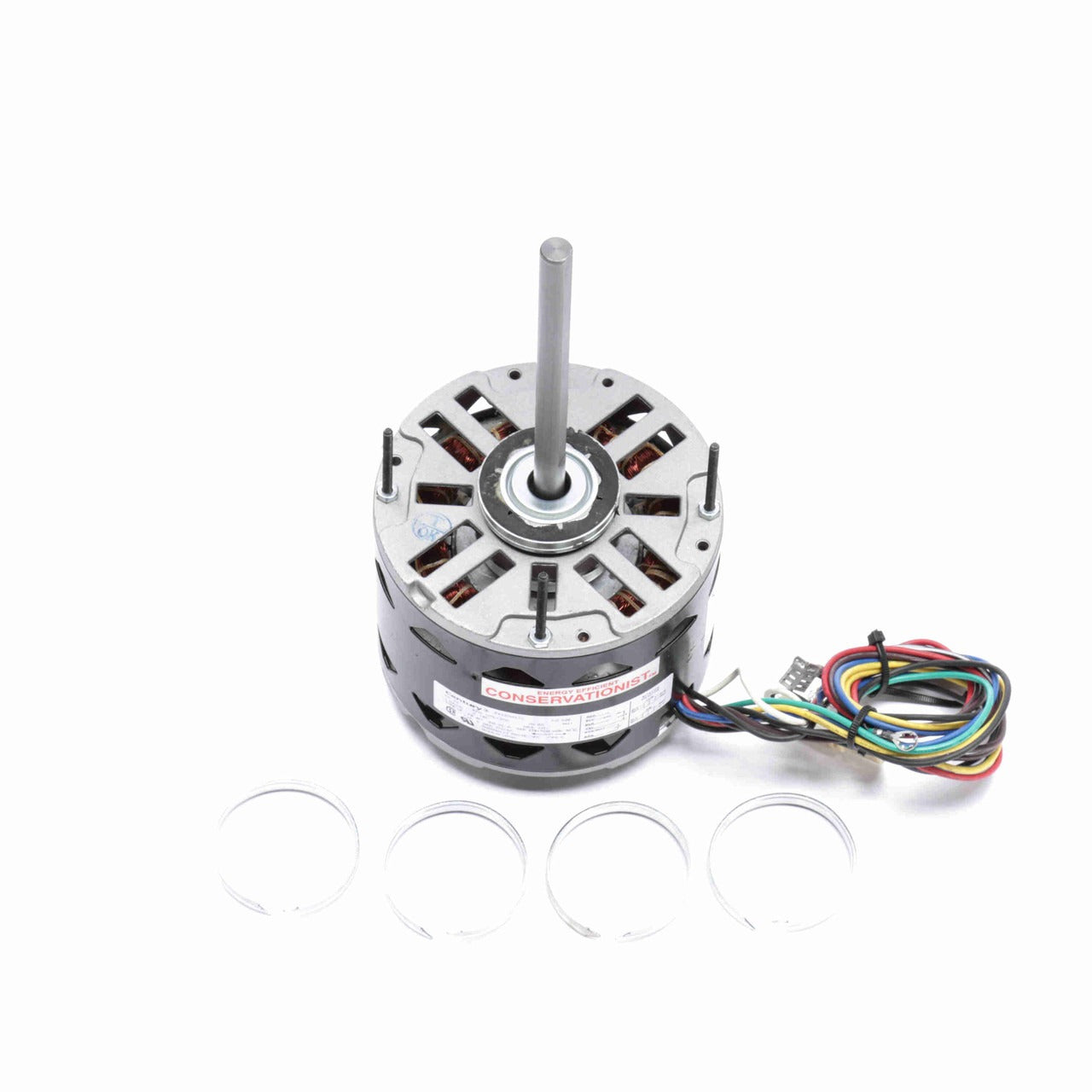

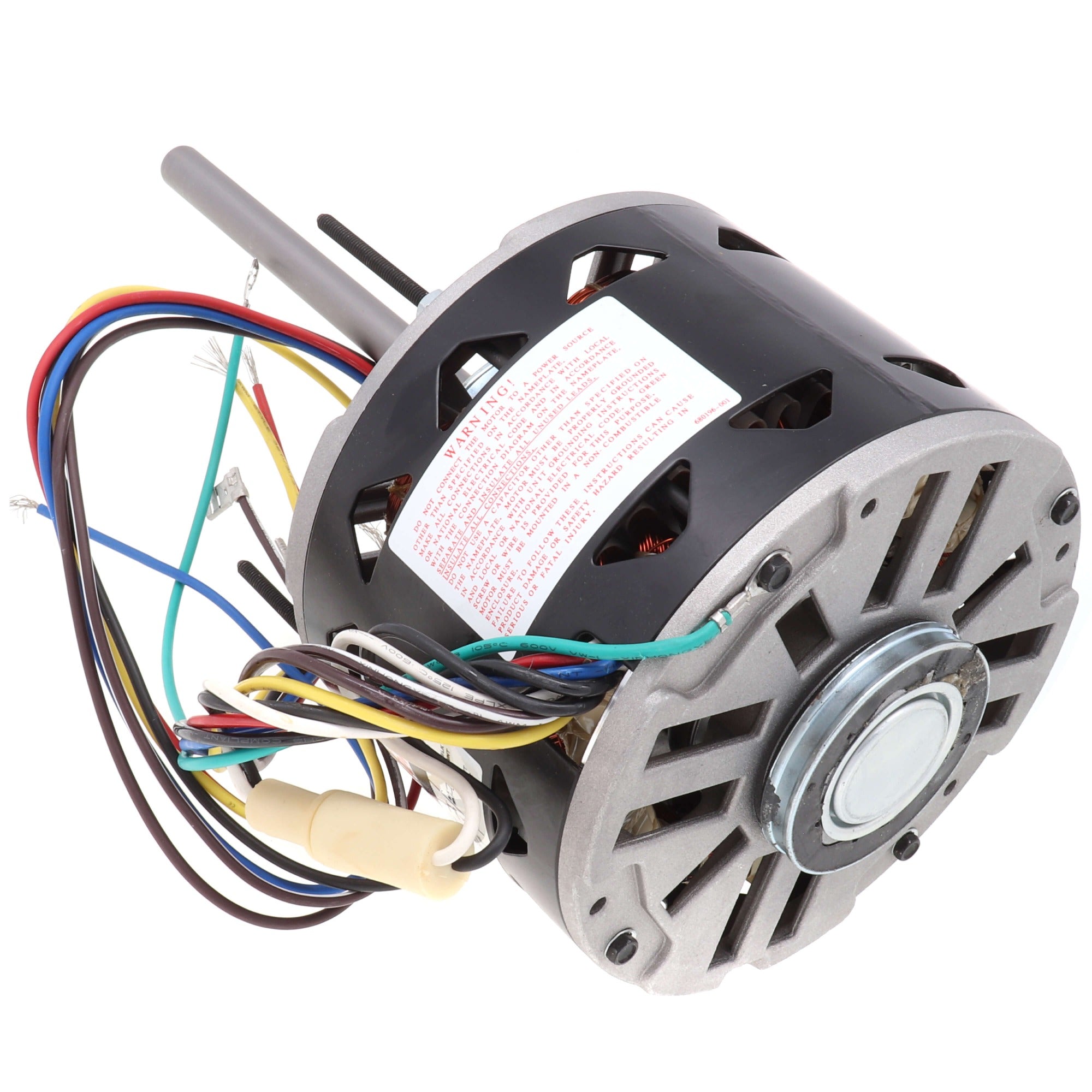

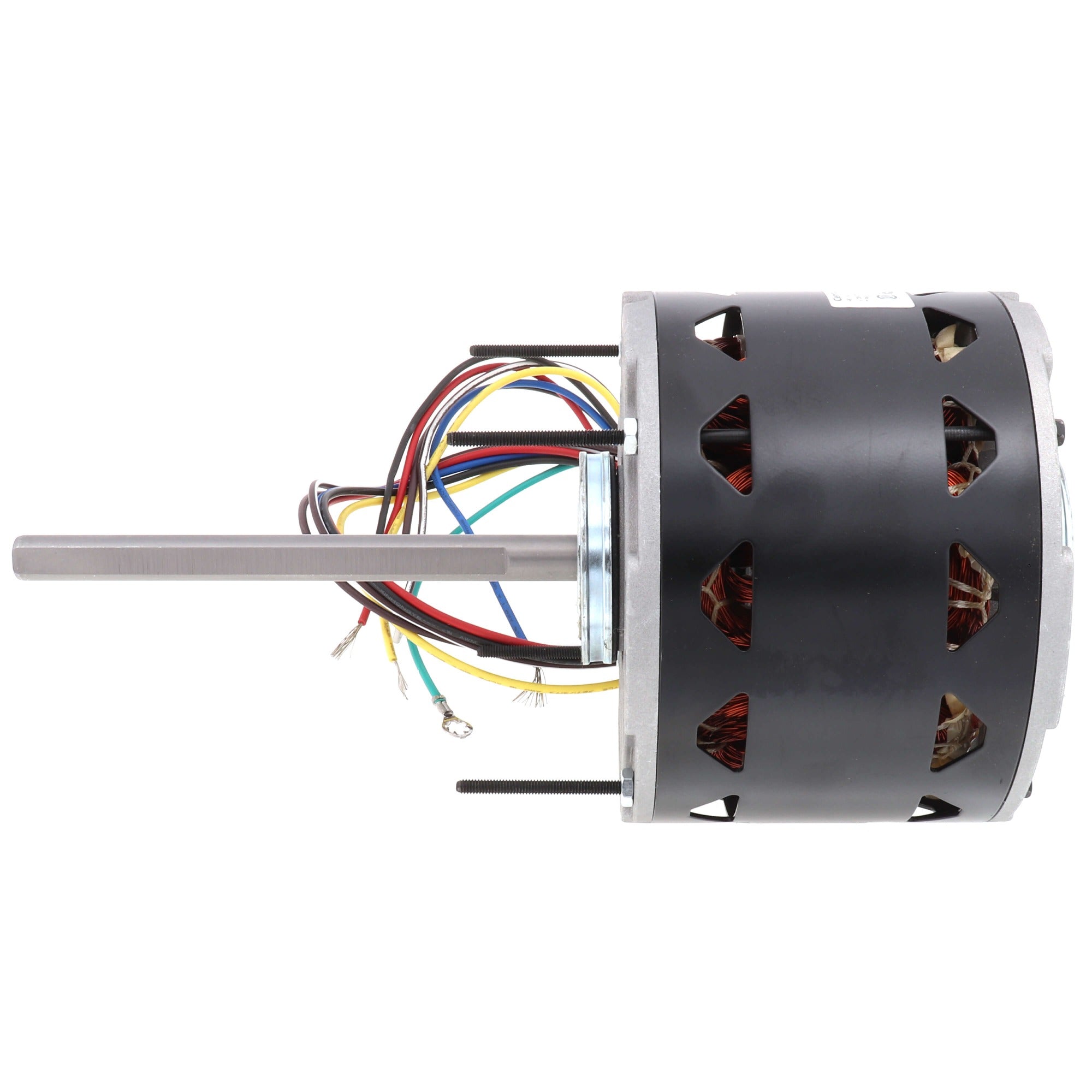

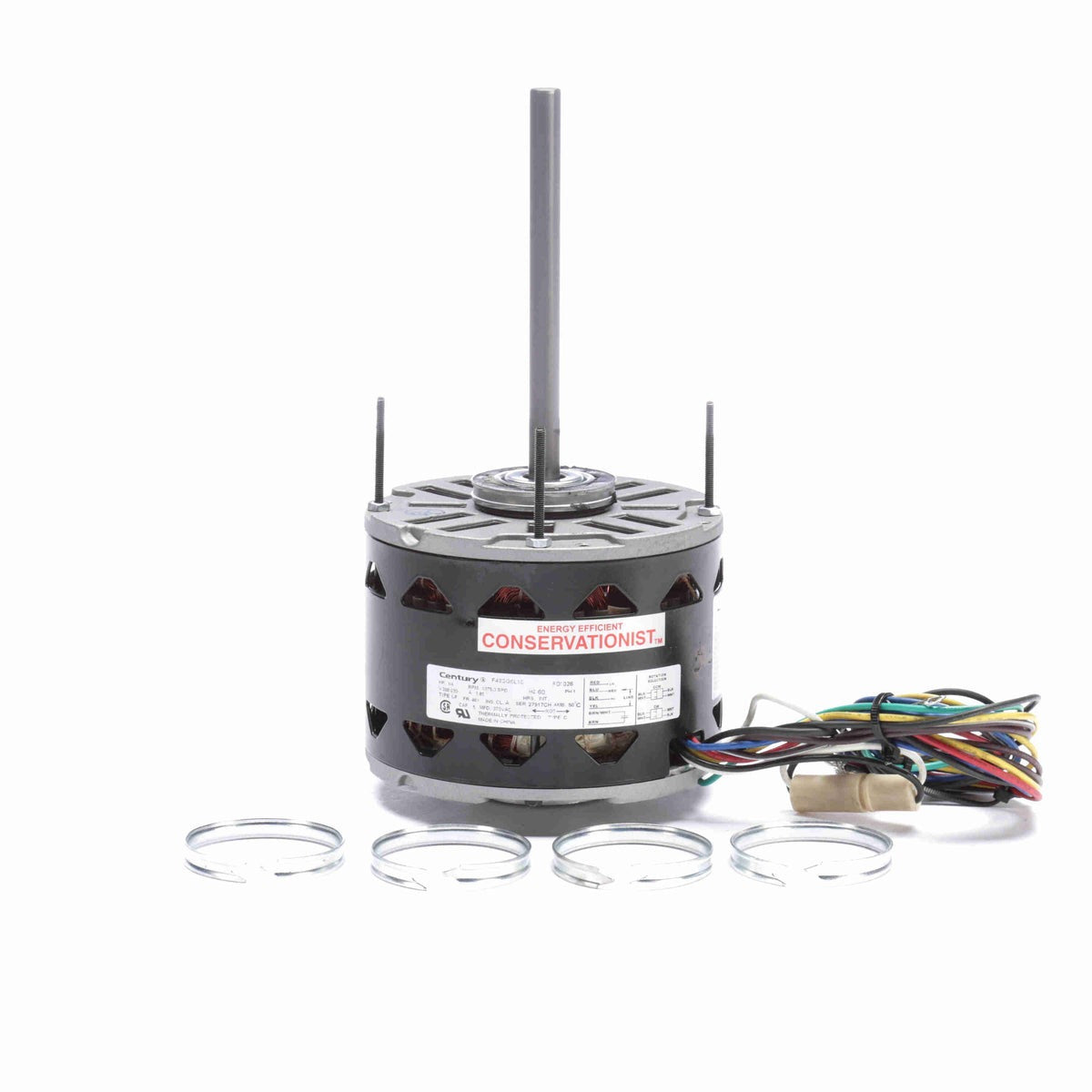

Century FD1026 Direct Drive Motor 1/4 HP (48Y Frame) FD1026

Product Description

Century FD1026 is a 1/4 HP permanent split capacitor (PSC) direct drive motor rated at 1075 RPM for 208-230 V single-phase air-over applications. It provides three-speed operation with reversible rotation and a full-load current of 1.85 A. The motor has ball bearings on both ends, an open/drip-proof enclosure with automatic thermal protection, and mounts using resilient rings; shaft diameter is 0.500 in.

• PSC design, 1/4 HP, rated 1075 RPM, 208-230 V single-phase, 3 speeds, 1.85 A full-load current
• Open/drip-proof enclosure, automatic thermal overload protection, reversible rotation, ball bearings (drive and opposite drive)
• Resilient ring mounting, 0.500 in flatted shaft, 48Y rolled steel frame, rated for air-over (OAO) duty

Product Highlights

Direct-drive 1/4 HP PSC blower motor, 1075 RPM, 208-230 V, 3-speed, ODP enclosure, ball bearings

Product Information

Standard Information

• Brand: CENTURY
• Manufacturer Part Number: FD1026
• Country of Origin: Mexico
