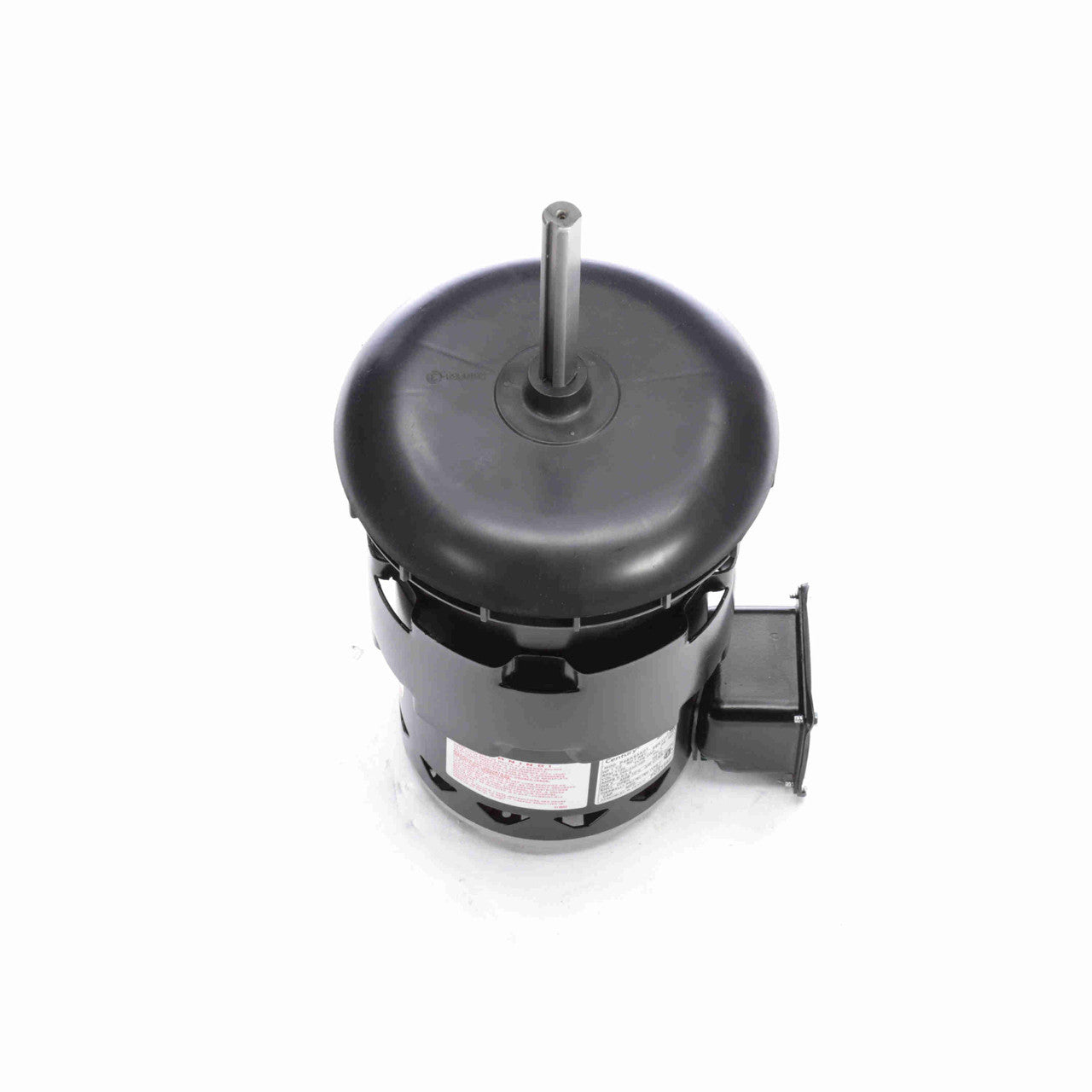

CENTURY FC3156F Heatmaster Condenser Fan Motor 1 1/2 HP 3 Ph

Product Description

The CENTURY FC3156F Heatmaster Condenser Fan Motor is a three-phase motor rated at one and a half horsepower. It operates efficiently at 1120 RPM with a voltage range of 200-230/460 volts. Designed for outdoor condenser units, this motor is ideal for central air conditioning systems.

• Thermally protected with automatic overload protection.
• Class F insulation allows operation in ambient temperatures up to seventy degrees Celsius.
• Includes ball bearings with a five-eighths inch diameter shaft featuring a flat and keyway.

Product Highlights

The FC3156F motor is built for reliability and efficiency in HVAC systems. Its robust design ensures it meets the demands of outdoor applications.

Product Information

Standard Information

• Brand: CENTURY
• MPN: FC3156F

Technical Specifications

• Phase: 3
• Output HP: 1 1/2 HP
• Voltage: 200-230/460 V
• Speed: 1120 RPM
• Service Factor: 1
• Frame: 48Y
• Enclosure: Open Enclosed
• Thermal Protection: Automatic
• Ambient Temperature: 70 °C
• Frequency: 60 Hz
• Current: 5.8/2.9 A
• Duty: Air Over
• Insulation Class: F
• UL: Recognized
• CSA: Y
• CE: N
• Number of Speeds: 1
• Electrical Type: Three Phase
• Starting Method: Across The Line
• Poles: 6
• Rotation: Reversible
• Mounting: Round Belly Band
• Motor Orientation: Vertical Shaft Up
• Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: Keyed
• Overall Length: 15.44 inches
• Frame Length: 9.00 inches
• Shaft Diameter: 0.625 inches
• Shaft Extension: 4.07 inches
• Packaged Length: 10.50 inches
• Packaged Width: 9.00 inches
• Packaged Height: 18.00 inches
• Rated RPM: 1140
• Max Ambient: 70 °C
• Horsepower: 1-1/2 HP
• Mounting Location: Belly Band
