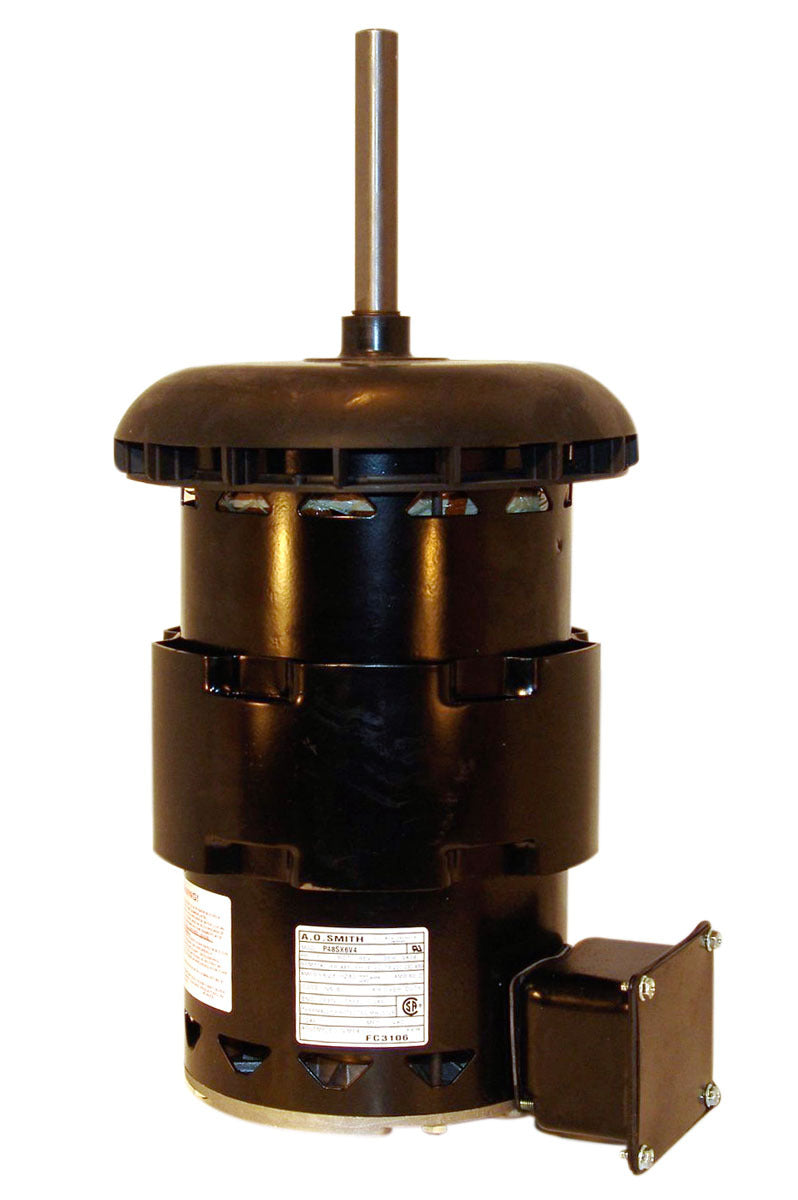

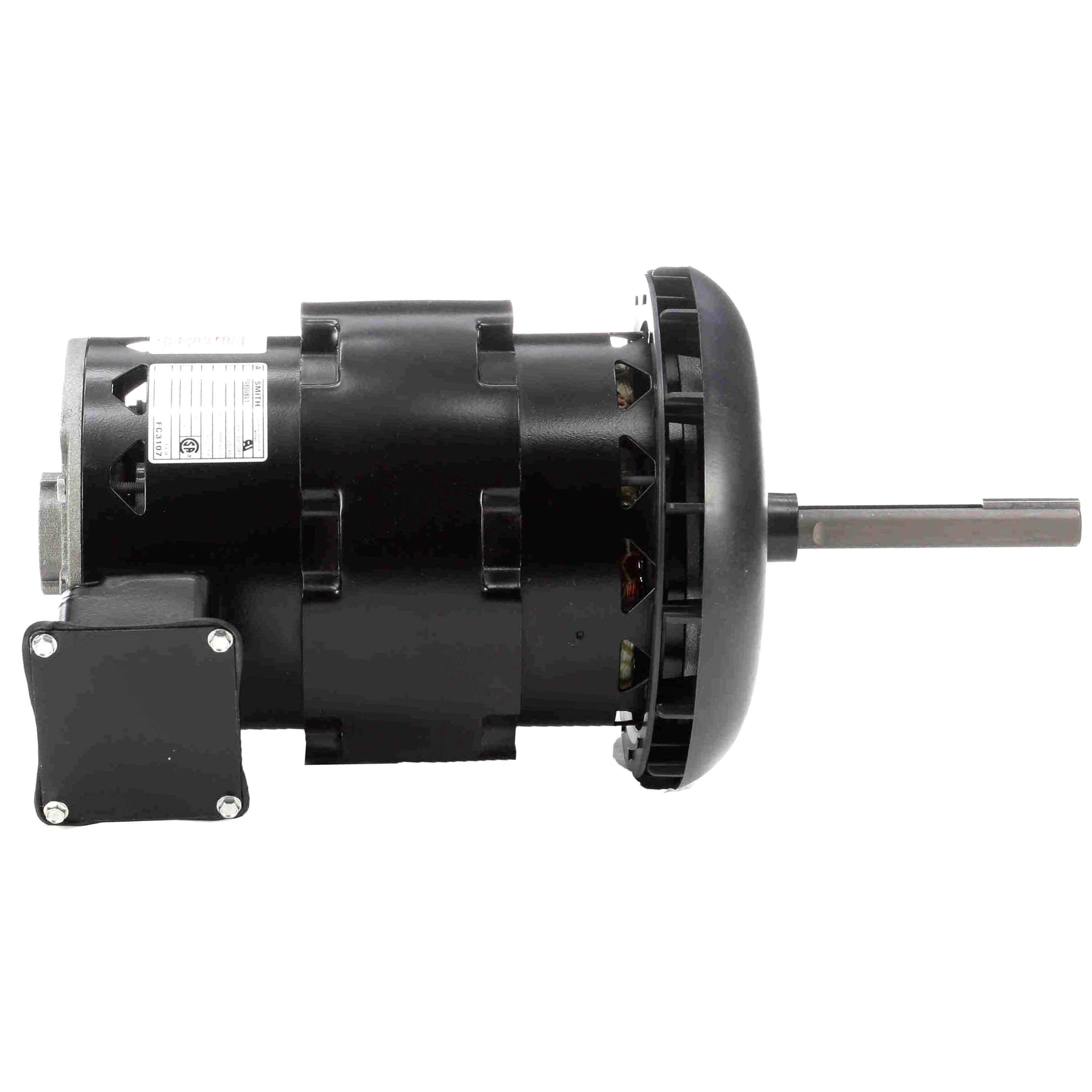

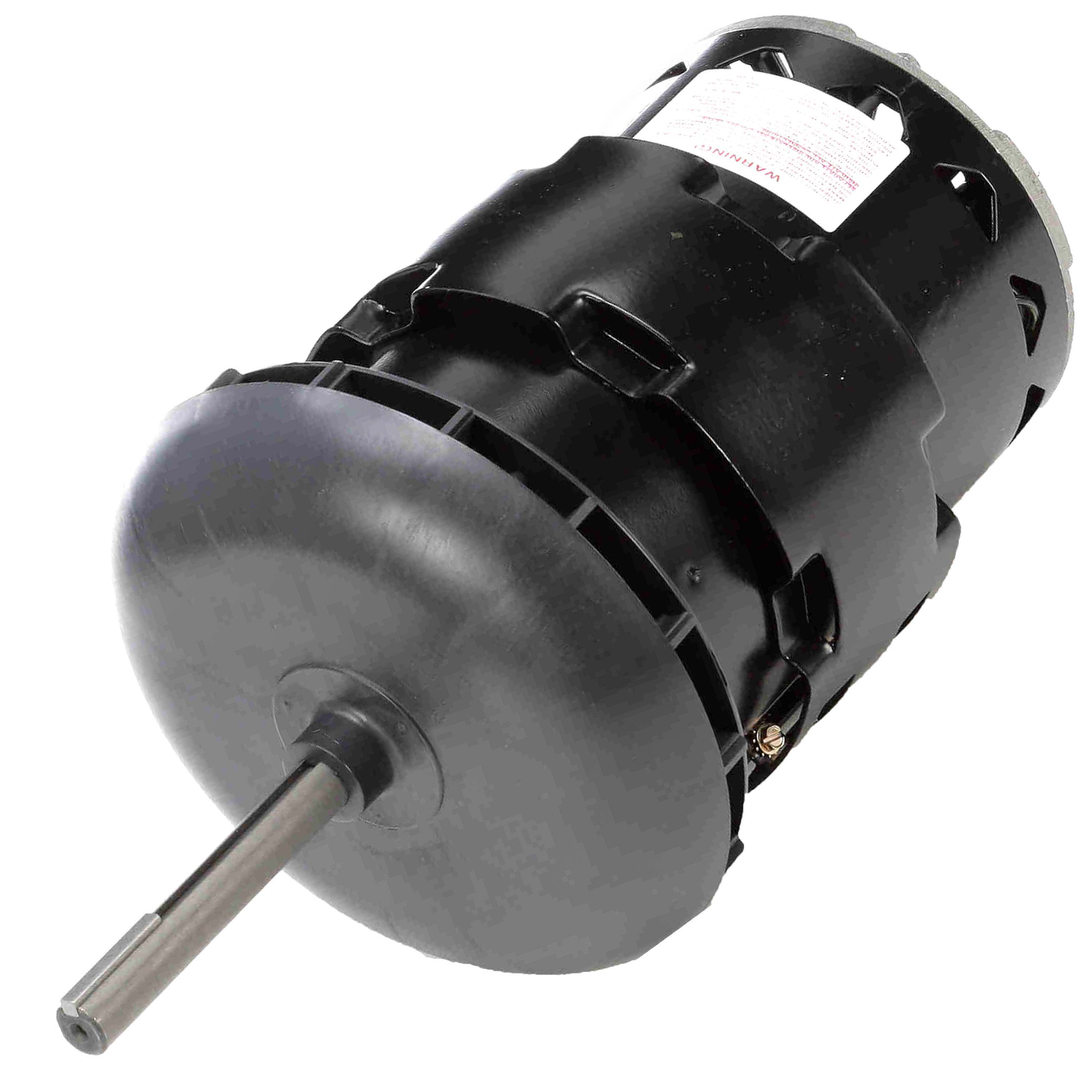

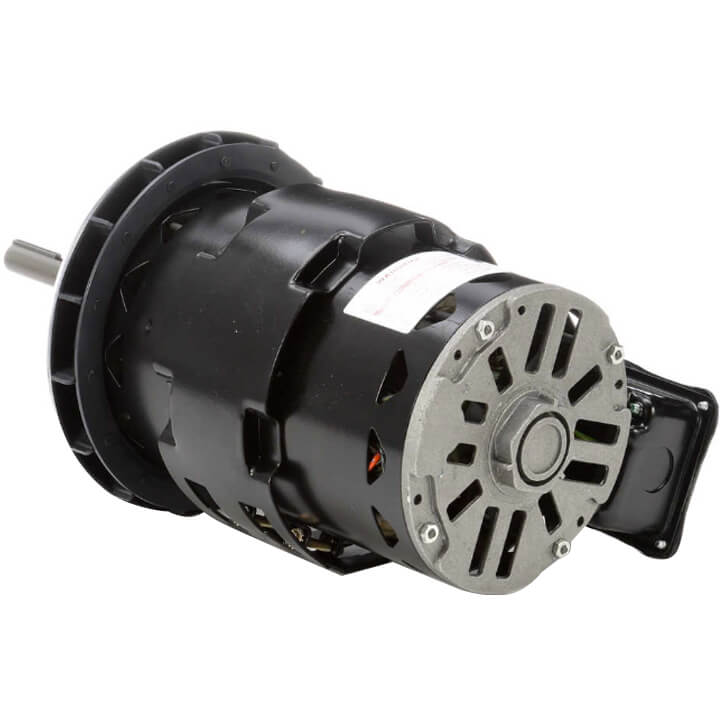

Century FC3107 Condenser Fan Motor 1 HP 5-5/8 Inch Deluxe Condenser Fan Motors

Product Description

The Century FC3107 is a three-phase condenser fan motor with a power rating of one horsepower and specifically designed for HVAC applications. This motor operates at a voltage of 200-230/460 volts and has a rotation speed of 1120 RPM. Its robust construction features a rolled steel body with an open drip proof enclosure, making it suitable for various industrial settings.

• Three-phase operation
• Auto overload protection
• Ball bearing type for durability

Product Highlights

This motor is engineered for energy efficiency and features a patented fan canopy. The vertical shaft composition allows for optimal installation in tight spaces, while the overall design supports various mounting types.

Product Information

Standard Information

• Brand: Century
• MPN: FC3107

Technical Specifications

• Power Output: 1 HP
• Voltage: 200-230/460
• Phase: Three
• RPM: 1120
• Frame Size: 48Y
• Diameter: 5.6 inches
• Weight: 30 lbs
• Amperage: 5.0/2.5
• Shaft Type: Keyed
• Shaft Diameter: 0.625 inches
• Overload Protection: Auto
• Ambient Temperature: 60°C
• Bearings Type: Ball
• Insulation Class: B
• Mounting Type: Round/Belly Band
• Orientation: Vertical Shaft Up
