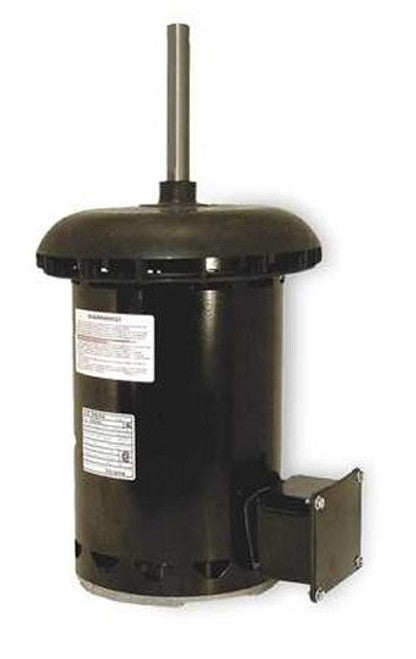

CENTURY FC3076F HEATMASTER Condenser Fan Motor 3/4 HP 200-230/460 V

Product Description

The CENTURY FC3076F HEATMASTER Condenser Fan Motor is a reliable 3/4 HP motor designed for air conditioning systems. It operates on a three-phase system with voltage options of two hundred to two hundred thirty or four hundred sixty volts. The motor runs at one thousand one hundred forty RPM, ensuring adequate speed for effective cooling. This model features an open enclosure, making it suitable for air-over applications.

• Thermal protection for safety
• Durable construction for commercial use
• Ball bearings for smooth operation

Product Highlights

This motor is built with thermal protection features and designed for easy mounting. Ideal for commercial cooling systems, it offers durability and efficiency.

Product Information

Standard Information

• Brand: CENTURY
• MPN: FC3076F

Technical Specifications

• Phase: 3
• Output HP: 3/4 HP
• Voltage: 200-230/460 V
• Speed: 1140 RPM
• Service Factor: 1
• Frame: 48Y
• Enclosure Type: Open Enclosed
• Thermal Protection: Automatic
• Ambient Temperature Rating: 70 °C
• Frequency: 60 Hz
• Current: 4.0/2.0 A
• Insulation Class: F
• Shaft Type: Keyed, diameter 5/8 inch
• Weight: 24 pounds
