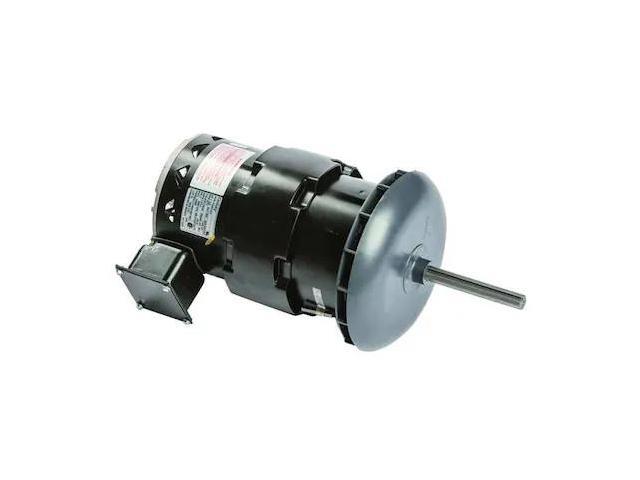

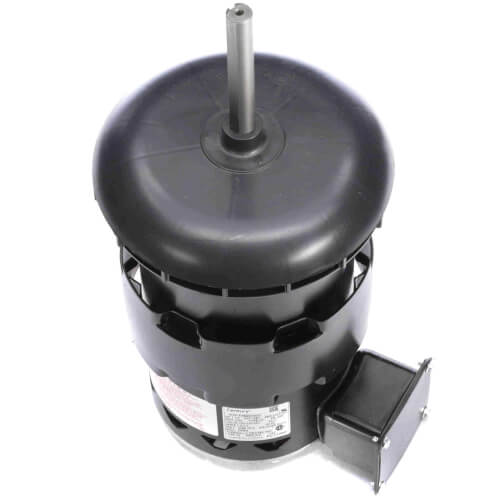

CENTURY FC1156F Deluxe Commercial Condenser Fan Motor 1-1/2 HP

Product Description

The CENTURY FC1156F is a Deluxe Commercial Condenser Fan Motor designed for efficiency. This motor operates at 1-1/2 horsepower and is suitable for air over applications in HVAC settings. It features automatic overload protection, making it reliable for long-term use.

• Rated for voltage input of 200-230/460V and operates at 1075 RPM
• Incorporates a reversible design with heavy-duty ball bearings
• Thermally protected and designed for vertical shaft up orientation

Product Highlights

This motor is ideal for commercial condenser fan applications, offering energy efficiency and robust performance

Product Information

Standard Information

• Brand: CENTURY
• MPN: FC1156F

Technical Specifications

• Type: Permanent Split Capacitor
• Horse Power: 1-1/2
• Voltage: 200-230/460V
• Rotation: Reversible
• Duty: Air Over
• Bearings: Double Sealed Ball
• Poles: 6
• Mount: Round Belly Band
• Phase: 1
• RPM: 1075
• Hertz: 60
• Enclosure Type: Open
• Frame: 48Y
• Speeds: 1
• Amperage: 7
• Insulation Class: F
• Overload Protection: Automatic
• Diameter (Inches): 5-5/8
• Max Ambient Temp (°F): 158°F
• Motor Orientation: Vertical Shaft Up
• Output KW: 1.1 kW
• Service Factor: 1
• Ambient Temperature: 70 °C
• Frequency: 60 Hz
• Current: 7.0/3.5 A
• UL: Recognized
• CSA: Y
• CE: N
• Electrical Type: Permanent Split Capacitor
• Starting Method: Across The Line
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: Keyed
• Overall Length: 15.98 inches
• Frame Length: 10.11 inches
• Shaft Diameter: 0.600 inches
• Shaft Extension: 4.1 inches
