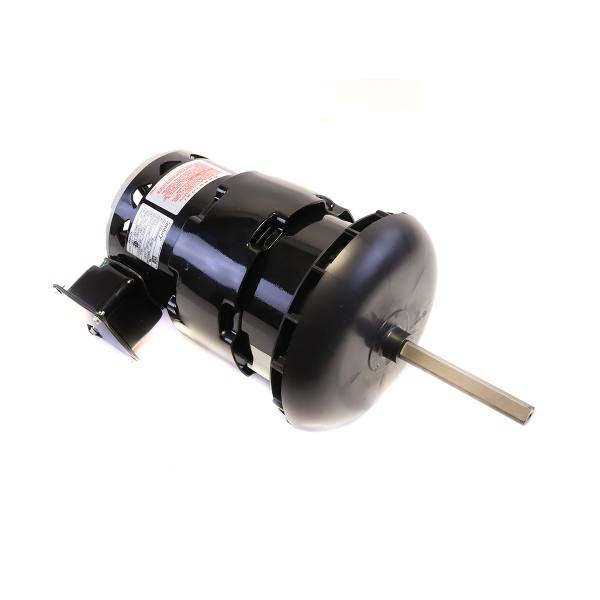

CENTURY FC1106F Heatmaster Condenser Fan Motor 1 HP 200-230/460 V

Product Description

The CENTURY FC1106F Heatmaster Condenser Fan Motor is a one horsepower motor built for heavy-duty condenser fan applications. It operates efficiently at 200-230/460 volts and runs at a speed of 1075 RPM. This motor supports single speed operation and has reversible direction capabilities.

• Permanent Split Capacitor (PSC) design; requires a capacitor of 25 Mfd-370 volts (not included)
• Thermally protected for enhanced safety
• Features a 5/8 inch diameter shaft with flat and keyway for secure installation

Product Highlights

This motor includes high-quality ball bearings and a conduit box. It is designed for vertical shaft up orientation and accommodates belly band mounting.

Product Information

Standard Information

• Phase: 1
• Output HP: 1 HP

Technical Specifications

• Voltage: 200-230/460 V
• Speed: 1075 RPM
• Service Factor: 1
• Frame: 48Y
• Enclosure: Open Enclosed
• Thermal Protection: Automatic
• Ambient Temperature: 70 °C
• Frequency: 60 Hz
• Current: 6.4/3.2 A
• Duty: Air Over
• Insulation Class: F
• UL: Recognized
• CSA: Y
• CE: N
• Number of Speeds: 1
• Electrical Type: Permanent Split Capacitor
• Starting Method: Across The Line
• Poles: 6
• Rotation: Reversible
• Mounting: Round Belly Band
• Motor Orientation: Vertical Shaft Up
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: Keyed
• Overall Length: 15.44 inches
• Frame Length: 9 inches
• Shaft Diameter: 0.625 inches
• Shaft Extension: 4.07 inches
• Motor Design: Permanent Split Capacitor
• Motor Enclosure Design: Open Air-Over
• Motor Mounting Type: Band
• Motor Shaft Rotation: CW/CCW
• Name Plate RPM: 1075 RPM
• Number of Phases: 1
• Product Height: 9.5 inches
• Product Width: 10 inches
• Height: 9.500
• Length: 18.500
• Width: 11.000
• MPN: FC1106F
• Brand: CENTURY
• Model: FC1106F
• Motor Type: UAF
• Country/Region of Manufacture: Mexico
