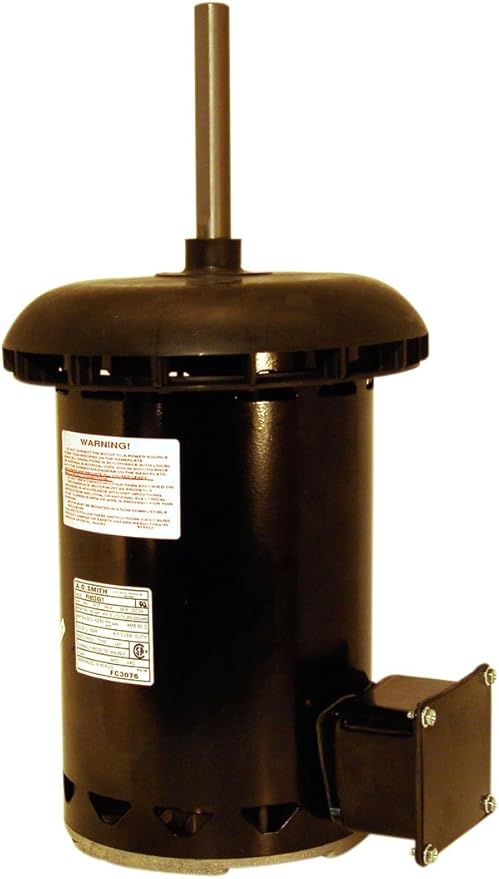

CENTURY FC1086F HEATMASTER Condenser Fan Motor 0.8 HP

Product Description

The Century FC1086F HEATMASTER condenser fan motor is designed for commercial applications requiring reliable cooling and ventilation. This motor provides 0.8 HP and operates efficiently within a voltage range of 200 to 230/460 V. It spins at a speed of 1075 RPM, making it suitable for various air over applications.

• Open enclosure with automatic thermal protection
• Class F insulation rated for 70 degrees Celsius ambient temperature
• 1/2 inch diameter shaft suitable for various mounting options

Product Highlights

The Century FC1086F is robustly built for durability and efficiency in demanding environments.

Product Information

Standard Information

• Brand: Century
• MPN: FC1086F

Technical Specifications

• Phase: 1
• Output HP: 0.8 HP
• Voltage: 200-230/460 V
• Speed: 1075 RPM
• Service Factor: 1
• Enclosure: Open Enclosed
• Thermal Protection: Automatic
• Ambient Temperature: 70 degrees Celsius
• Frequency: 60 Hz
• Current: 4.6/2.3 A
• Duty: Air Over
• Insulation Class: F
• Frame: 48Y
• Drive End Bearing: Ball
• Shaft Type: Double Flat
• Shaft Diameter: 0.500 inches
• Shaft Extension: 3.6 inches
