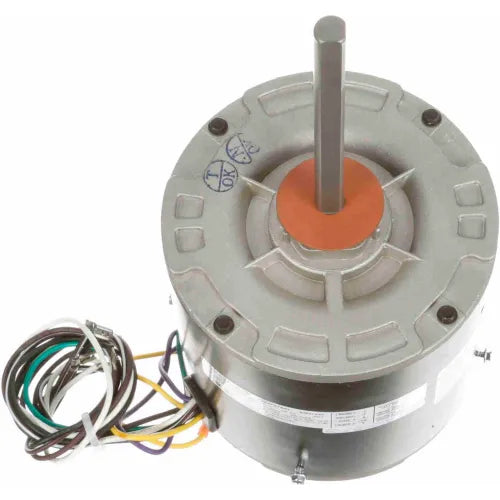

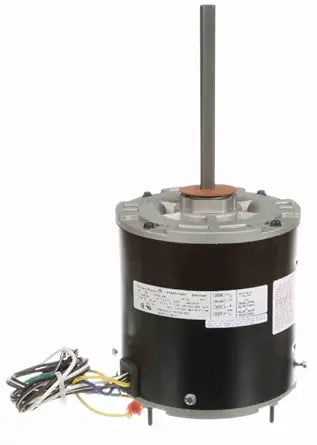

Century EM3746F Condenser Fan Motor 1/2 HP

Product Description

The Century EM3746F condenser fan motor is a reliable component for air conditioning systems. It features a half horsepower capacity with a PSC electrical type, ensuring efficient operation. The motor runs at eight hundred twenty-five RPM and is enclosed in a TEAO style, suitable for various climates.

• Electrical Type: PSC
• Highly efficient motor design
• Reversible rotation for flexible installation

Product Highlights

This motor is designed for durability and effectiveness in condenser units, making it a common choice among HVAC technicians.

Product Information

Standard Information

• Brand: Century
• MPN: EM3746F

Technical Specifications

• Electrical Type: PSC
• HP: 1/2
• KW: 0.37
• RPM: 825
• Frame: 48Y
• Diameter: 5.6 inches
• Enclosure: TEAO
• Phase: Single
• Voltage: 208-230 V
• Rotation: Reversible
• Overload: Auto
• Material: Rolled Steel
• Bearings Type: Ball
• Mounting: Extended Studs
• Amperage: 2.2-2.5 A
• Shaft Type: Flat
• Shaft Extension: 6.000 inches
• Assembly: Any
• Shaft Diameter: 0.500 inches
• Frequency: 60 Hz
• Service Factor: 1
• Thermal Protection: Automatic
• Ambient Temperature: 70 °C
• Duty: Air Over
• Insulation Class: F
• UL: Recognized
• CSA: Y
• CE: N
• Number of Speeds: 1
• Starting Method: Across The Line
• Poles: 8
• Motor Orientation: Any
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Overall Length: 12.21 inches
• Frame Length: 5.69 inches
• Motor Type: Condenser Fans Motor
• Full Load Amps: 2.2-2.5 FLA
• Rated RPM: 825
