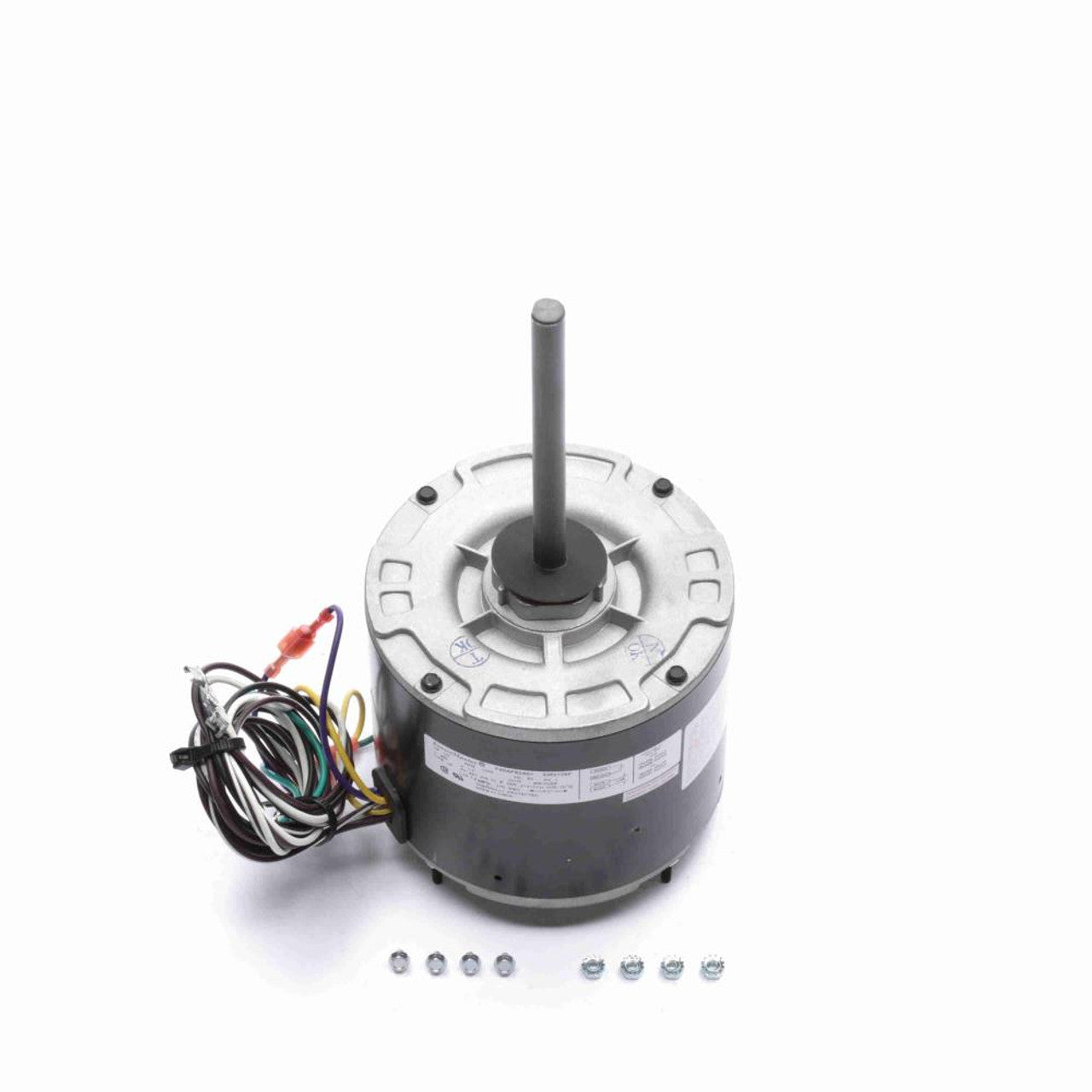

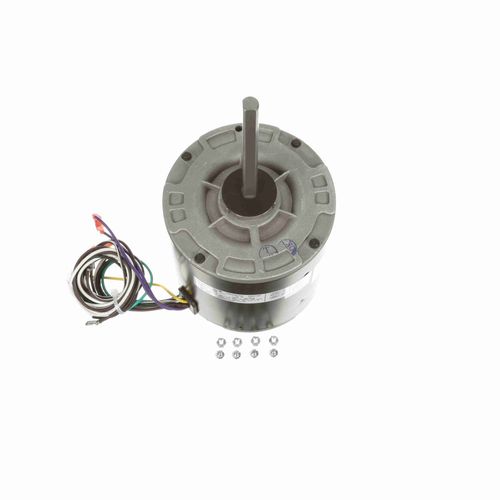

CENTURY EM3739F Condenser Fan Motor 3/4 HP 1075 RPM

Product Description

The CENTURY EM3739F condenser fan motor is suitable for HVAC systems. This motor has a horsepower rating of three-fourths and operates at a speed of 1075 RPM. It is designed to improve efficiency in your HVAC setups, providing durable performance across various condenser applications.

• Electrical type: PSC
• Reversible rotation feature
• TEAO enclosure for protection

Product Highlights

The versatile design makes this motor ideal for both general and specific HVAC condenser uses.

Product Information

Standard Information

• Brand: CENTURY
• MPN: EM3739F

Technical Specifications

• Electrical Type: PSC
• Horsepower: 3/4
• KW: 0.56
• RPM: 1075
• Frame: 48Y
• Diameter: 5.6 inches
• Enclosure: TEAO
• Phase: Single
• Voltage: 460 V
• Rotation: Reversible
• Overload: Auto
• Material: Rolled Steel
• Bearings Type: Ball / Ball
• Mounting: Extended Studs
• Amperage: 2.8 A
• Shaft Type: Flat
• Shaft Extension: 6.000 inches
• Assembly: Any
• Shaft Diameter: 0.500 inches
• Frequency: 60 Hz
• Thermal Protection: Automatic
• Ambient Temperature: 70 °C
• Duty: Air Over
• Insulation Class: F
• UL: Recognized
• CSA: Y
• CE: N
• Number of Speeds: 1
• Starting Method: Across The Line
• Poles: 6
• Motor Orientation: Any
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Overall Length: 12.17 inches
• Frame Length: 5.69 inches
• Service Factor: 1
• Nominal Rated Input Voltage: 460 V
• Rated Load (HP): 3/4
• Width: 6.45 inches
• Product Type: General Purpose Motors
