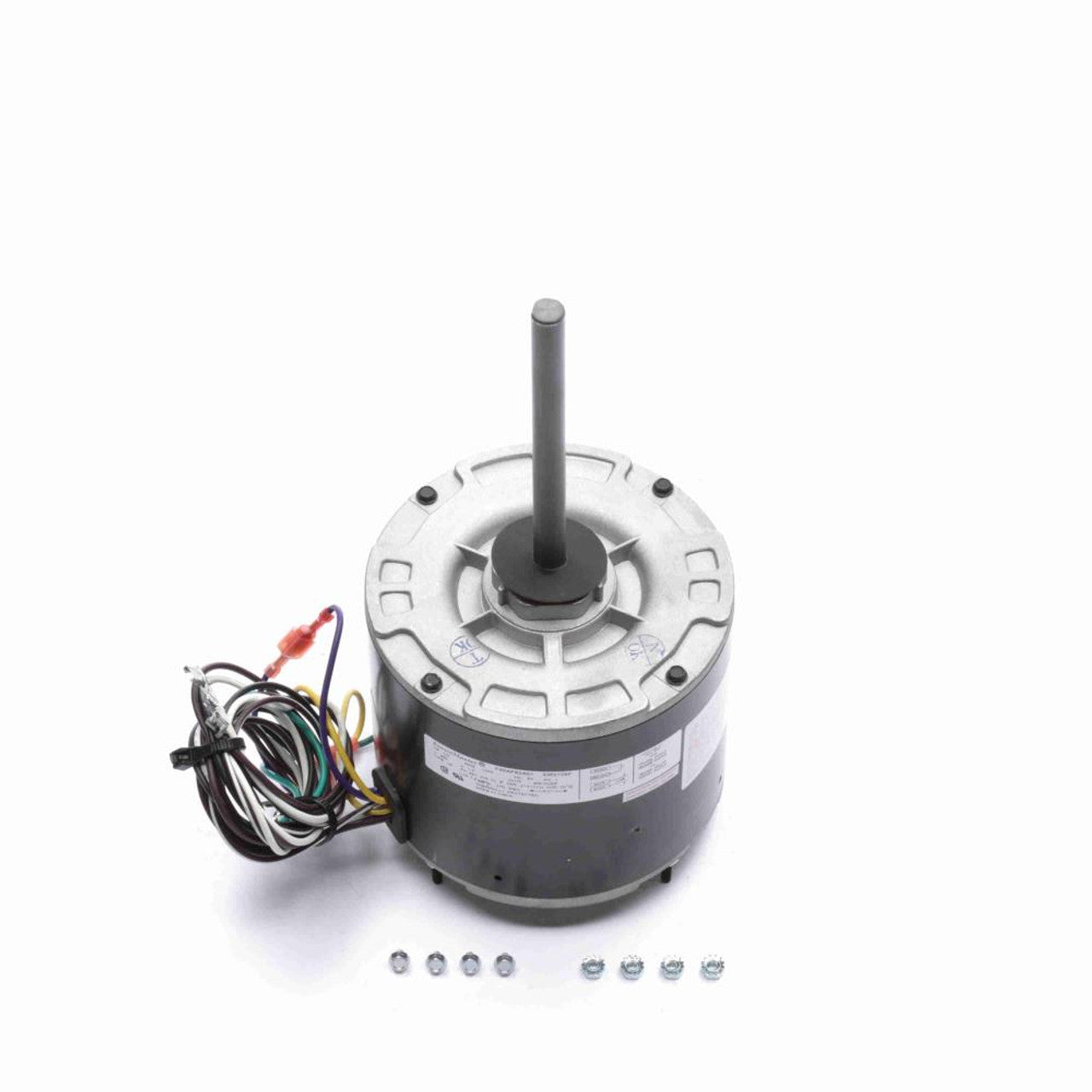

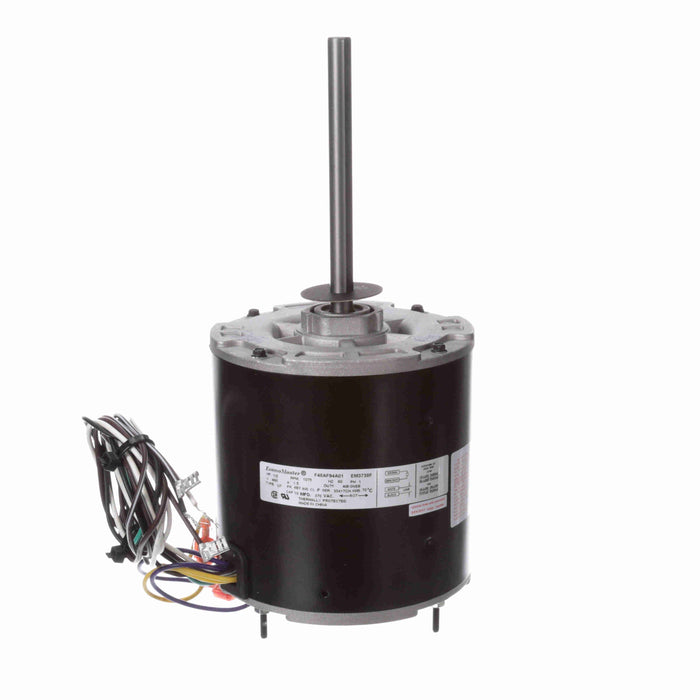

CENTURY EM3738F PRO-E SERIES Condenser Fan Motor 1/2 HP 460 V EM3738F

Product Description

The CENTURY EM3738F Pro-E Series Condenser Fan Motor is built for reliable performance in various condenser fan applications. This motor features a thermally protected and totally enclosed air-over design that ensures safe operation. It is rated for a 1/2 HP output with a voltage of four hundred sixty. The motor is compliant with Class F insulation standards, making it suitable for operating in a maximum ambient temperature of seventy degrees Celsius.

• Thermally Protected
• Totally Enclosed Air Over Design
• Class F Insulation

Product Highlights

This motor is effective in multiple fan applications requiring durability and efficiency. Its extended mounting studs facilitate easy installation in various setups, ensuring versatility for trade professionals.

Product Information

Standard Information

• Brand: CENTURY
• MPN: EM3738F

Technical Specifications

• Phase: 1
• Output HP: 1/2 HP
• Voltage: 460 V
• Speed: 1075 rpm
• Service Factor: 1.0
• Frame: 48Y
• Thermal Protection: Automatic
• Ambient Temperature: 70 °C
• Current: 1.5 A
• Insulation Class: F
• Mounting Orientation: All Angle
• Shaft Diameter: 0.500 in
• Overall Length: 12.17 in
