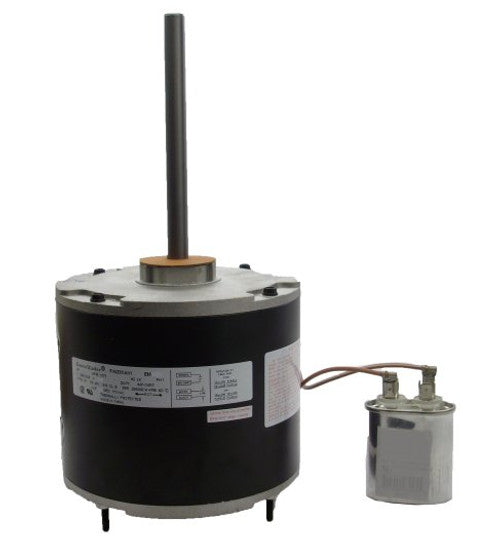

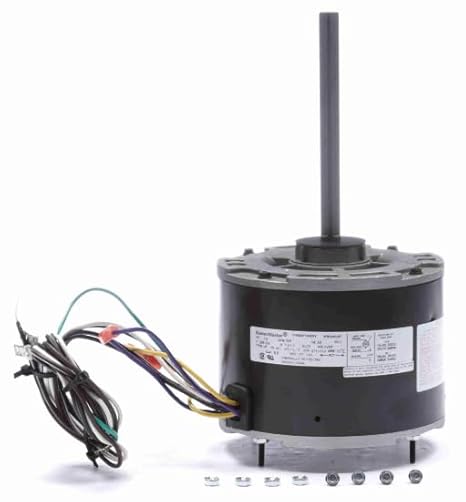

CENTURY EM3729F CONDENSER FAN MOTOR 1/3 HP 208-230 V

Product Description

The CENTURY EM3729F is a condenser fan motor with a power rating of 1/3 horsepower. It operates at a voltage of 208-230 volts and reaches a speed of 1075 rpm. This motor is designed for condenser fan applications and includes features such as thermal protection and a durable construction.

• Thermally protected for enhanced safety
• Totally enclosed air over design
• Class F insulation for reliable performance

Product Highlights

This motor is suitable for residential applications and serves as a direct replacement for many air conditioning units.

Product Information

Standard Information

• Brand: CENTURY
• MPN: EM3729F

Technical Specifications

• Phase: 1
• Output HP: 1/3 HP
• Voltage: 208-230 V
• Speed: 1075 rpm
• Service Factor: 1
• Frame: 48Y
• Enclosure: Totally Enclosed Air Over
• Thermal Protection: Automatic
• Ambient Temperature: 70 °C
• Frequency: 60 Hz
• Current: 2.2-2.5 A
• Insulation Class: F
• UL Recognized: Yes
• CSA Certified: Yes
• Motor Orientation: Any
• Shaft Diameter: 0.500 in
• Shaft Extension: 6.0 in
• Continuous Duty: Yes
• Application: Residential
• Country of Manufacture: China
