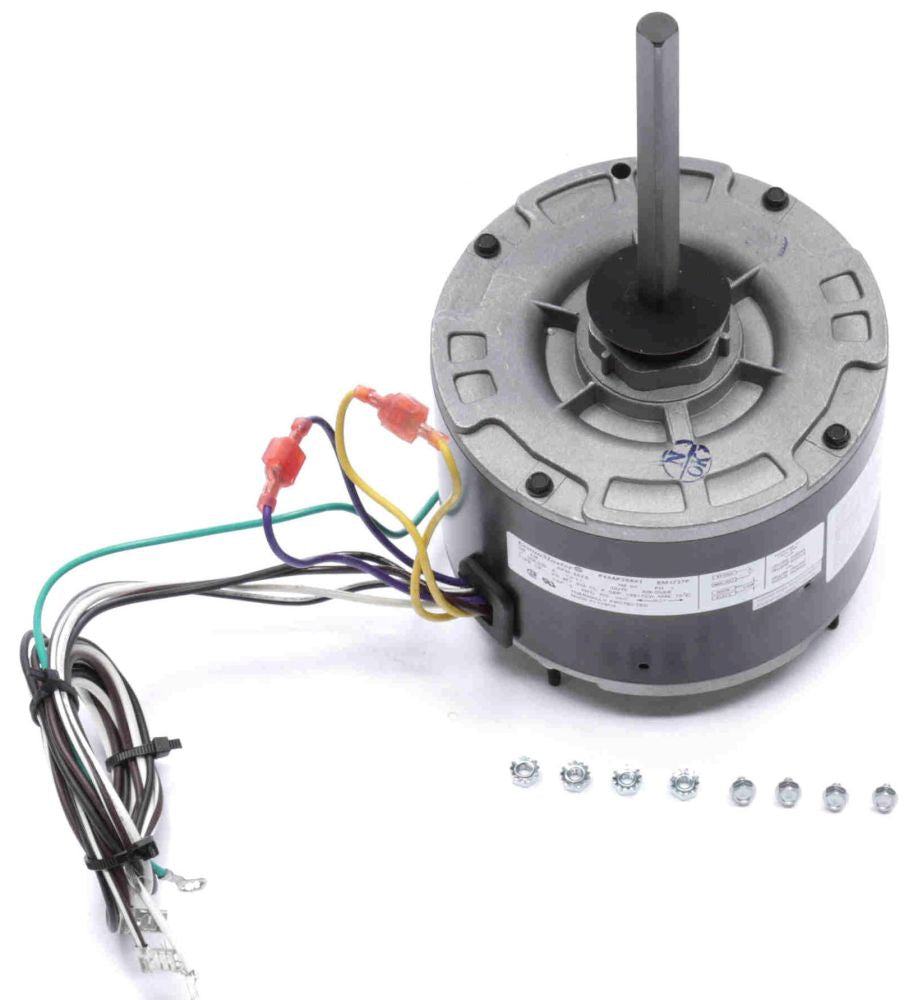

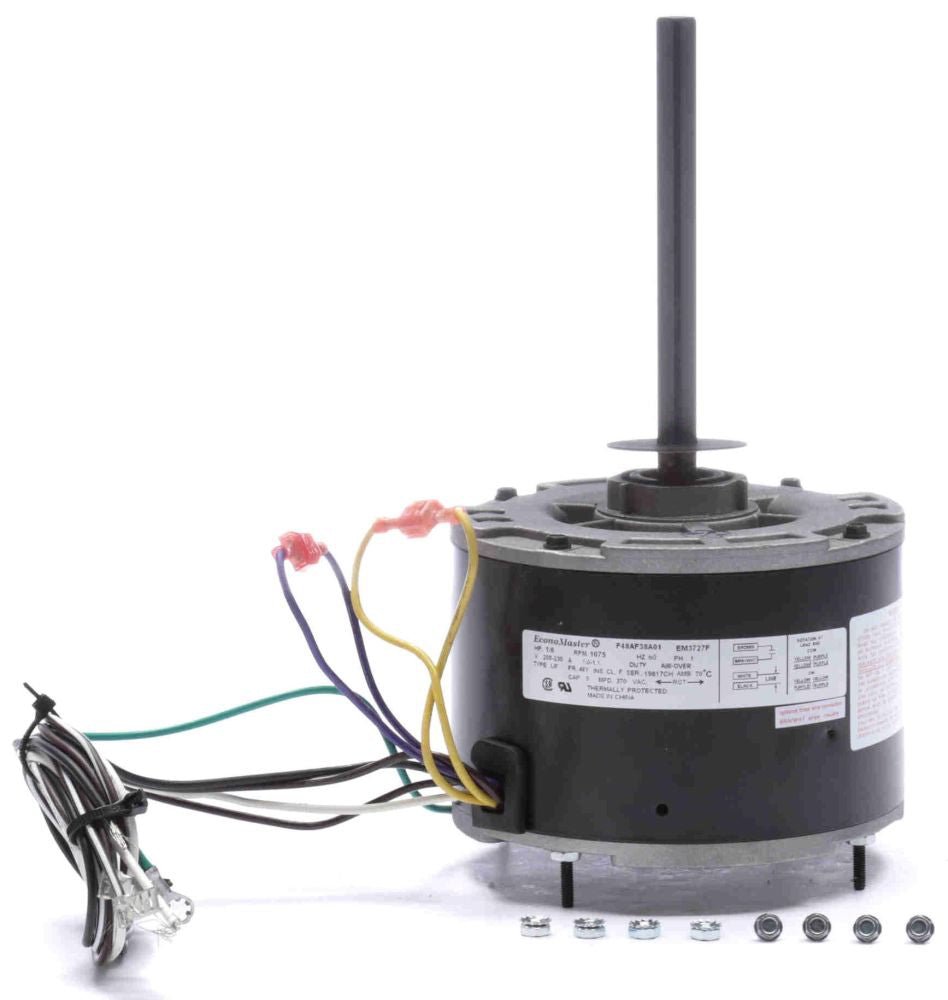

Century EM3727F Condenser Fan Motor 1/6 HP 208-230 VAC 60 Hz

Product Description

The Century EM3727F is a condenser fan motor with a power rating of one-sixth horsepower. It operates on 208 to 230 volts AC at a frequency of sixty hertz. The motor is designed for single-phase applications and has a full load amp range of one to one point one amps. With a speed rating of one thousand seventy-five RPM, this motor is suitable for various HVAC applications.

• Power Rating: 1/6 HP
• Voltage: 208 to 230 VAC
• Frame Size: NEMA 48Y

Product Highlights

This condenser fan motor features a totally enclosed design suitable for air-over applications. The mounting type is extended stud, providing additional installation versatility. The flat shaft configuration allows for easy connection to existing systems.

Product Information

Standard Information

• Manufacturer: Century Motors
• Approval: UL, CSA

Technical Specifications

• Motor Type: Permanent Split Capacitor, Induction Run
• Insulation Class: F
• Weight: 9 pounds
• Orientation: Horizontal
• Bearings Type: Ball (Drive End/Opposite Drive End)
• Number of Poles: 6
• Shaft Type: Flat, Diameter 0.5 inches, Length 6 inches
• Ambient Temperature Rating: 70°C
