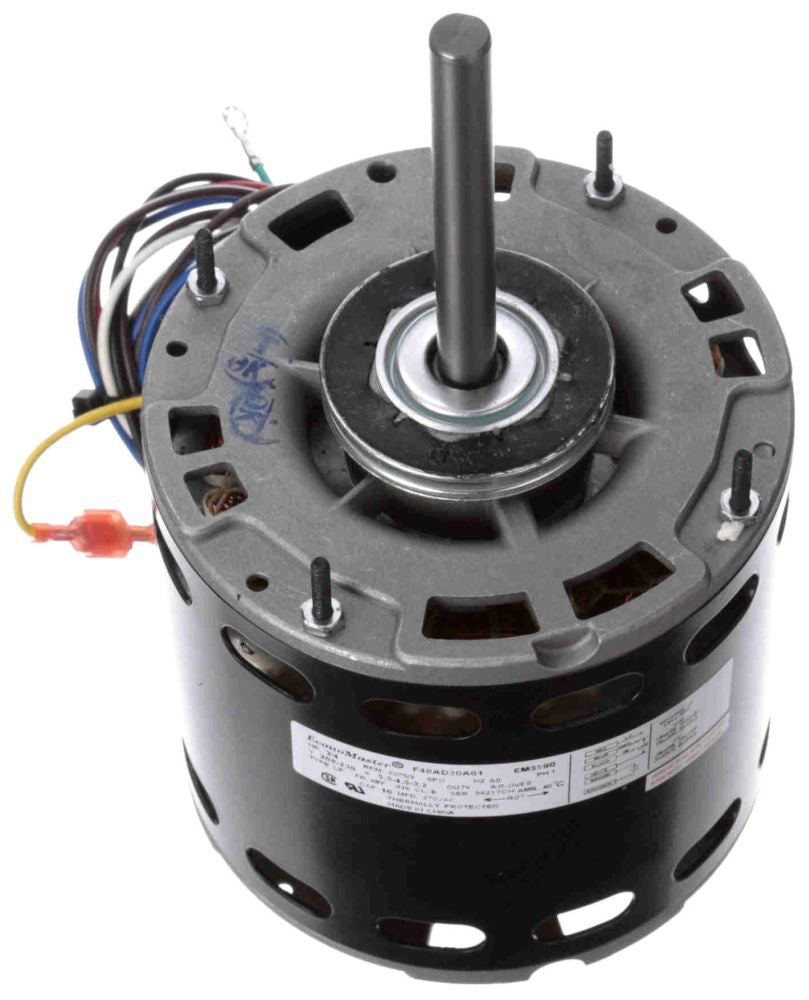

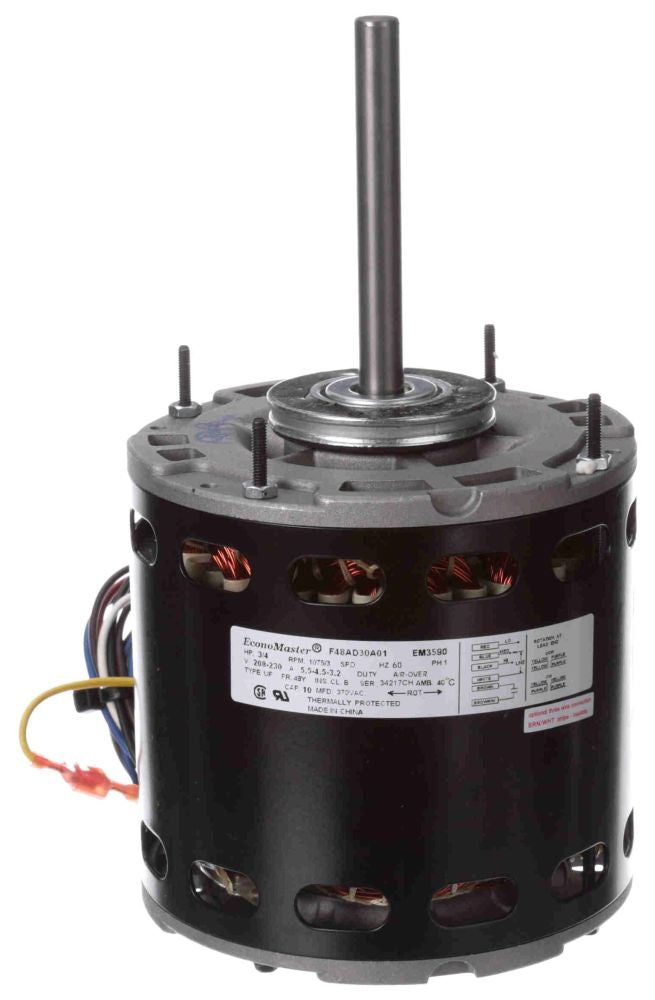

Century EM3590 Fan and Blower Motor 3/4 HP 208-230 VAC 60 Hz 5.1/4.2/3.1 A 3-Speed

Product Description

The Century EM3590 is a three-quarter horsepower fan and blower motor designed for HVAC systems. It operates at a voltage of two hundred eight to two hundred thirty volts AC and is suitable for one-phase applications. The motor features a six-pole configuration and provides three different speeds, making it versatile for various airflow needs.

• Power Rating: 3/4 HP
• Speed Rating: 1075 RPM
• Enclosure: Open Air-Over

Product Highlights

This motor is reversible and operates efficiently with a permanent split capacitor. The rolled steel frame is built to last, and the motor is thermally protected, enhancing its performance and reliability in direct drive applications.

Product Information

Standard Information

• Brand: Century Motors
• UPC: 78667401953

Technical Specifications

• Model Number: EM3590
• Volt Rating: 208 to 230 VAC
• Frequency: 60 Hz
• Current Rating: 5.1/4.2/3.1 A
• Number of Poles: 6
• Insulation Class: B
• NEMA Frame Size: 48Y
• Weight: 18 lbs
