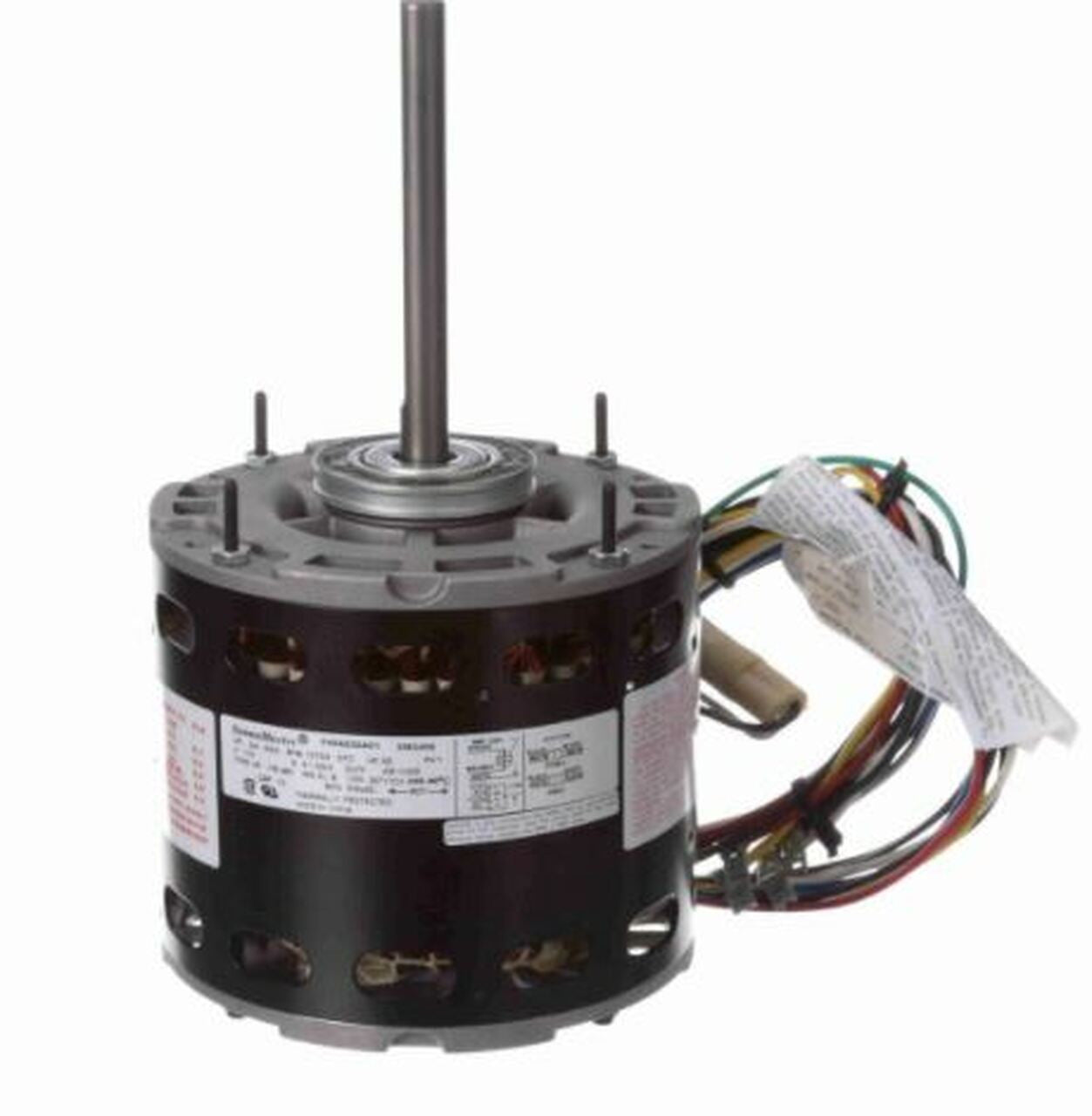

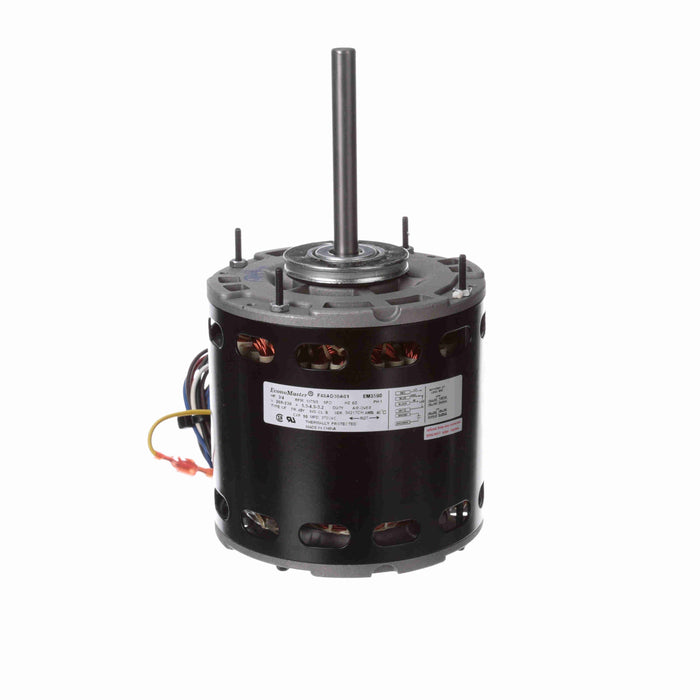

Century EM3590 Fan and Blower Motor 3/4 HP

Product Description

The Century EM3590 fan and blower motor is a reliable choice for various applications. This motor features an open air over construction with ball bearings for smooth operation. It operates at three speeds and is rated at three-quarter horsepower.

• Permanent Split Capacitor (PSC) motor design
• Thermal protection with class B insulation
• Reversible rotation for flexible installation

Product Highlights

This motor is ideal for direct drive fan and blower setups and offers multiple mounting options.

Product Information

Standard Information

• Brand: Century
• MPN: EM3590

Technical Specifications

• Phase: 1
• Output HP: 3/4 HP
• Output KW: 0.56 kW
• Voltage: 208-230 V
• Speed: Three Speed
• Service Factor: 1
• Frame: 48Y
• Enclosure: Open Enclosed
• Thermal Protection: Automatic
• Ambient Temperature: 40 °C
• Frequency: 60 Hz
• Current: 5.1-4.2-3.1 A
• Duty: Air Over
• Insulation Class: B
• UL: Recognized
• CSA: Y
• CE: N
• Number of Speeds: 3
• Electrical Type: Permanent Split Capacitor
• Starting Method: Across The Line
• Poles: 6
• Rotation: Reversible
• Mounting: Extended Studs
• Motor Orientation: Horizontal
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: Flat
• Overall Length: 10.36 inches
• Frame Length: 5.49 inches
• Shaft Diameter: 0.500 inches
• Shaft Extension: 4.0 inches
• Enclosure Material: Rolled Steel
• Enclosure Type: OAO (Open Air Over)
• Motor Diameter: 5.6 inches
• Motor Shell Length: 4.75 inches
• Capacitor Required: 10 MFD (NOT INCLUDED PART NUMBER 10DV)
• Type: PSC
• RPM: 1075
• Reversing Plug: Yes
