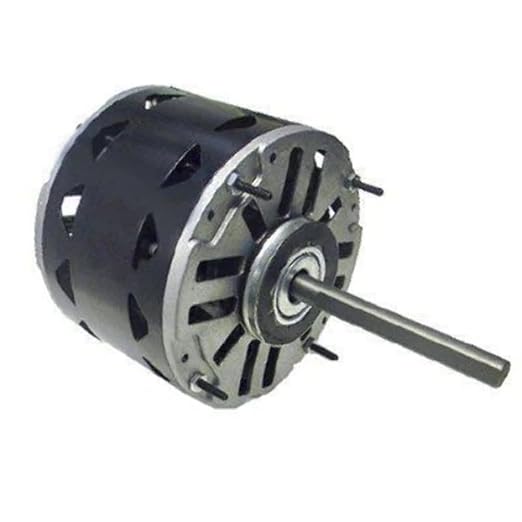

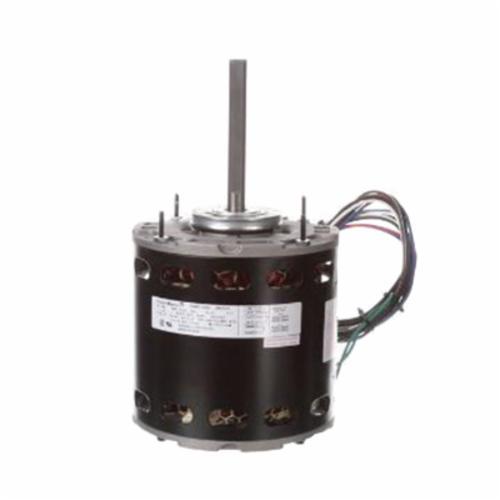

CENTURY EM3589 PRO-E SERIES Fan and Blower Motor 3/4 HP 115 V

Product Description

The Century EM3589 PRO-E SERIES Fan and Blower Motor is suitable for direct drive fan and blower applications. This motor has a power of three-fourth horsepower and operates at one hundred fifteen volts. It runs at a speed of one thousand seventy-five RPM with three distinct speed settings. The open air over enclosure design and class B insulation make it efficient for use in temperatures up to forty degrees Celsius.

• Permanently split capacitor (PSC) motor design.
• Thermally protected with ball bearing construction.
• Reversible rotation with multiple mounting options.

Product Highlights

This motor is designed for reliability and versatility, making it ideal for various HVAC applications.

Product Information

Standard Information

• Brand: Century
• MPN: EM3589

Technical Specifications

• Phase: 1
• Output HP: 3/4
• Voltage: 115 V
• Speed: 1075 RPM
• Frame: 48Y
• Enclosure: Open Air Over
• Thermal Protection: Automatic
• Amperage Rating: 10.2/7.3/4.5 A
• Mounting Type: Extended Studs, Resilient Ring
